Mitutoyo QM-Height Series User Manual

10
1 Before Using This Product
No. 99MAF600B
1.4
Preparing Measurements
Complete the following setup before measuring.
y Reference setup
y Ball diameter setup
1.4.1 Reference Setup
Set the reference to use when measuring height. The dimensions measured from this reference will
become the height measurements. This product supports absolute measurement (ABS) and incre-
mental measurement (INC) for the reference setting. Use the method that matches your application.
y Absolute measurement (ABS) reference
This method uses a user-dened value as the reference. When measuring the height from the
surface plate, set the surface plate as the reference with a value of 0 mm.

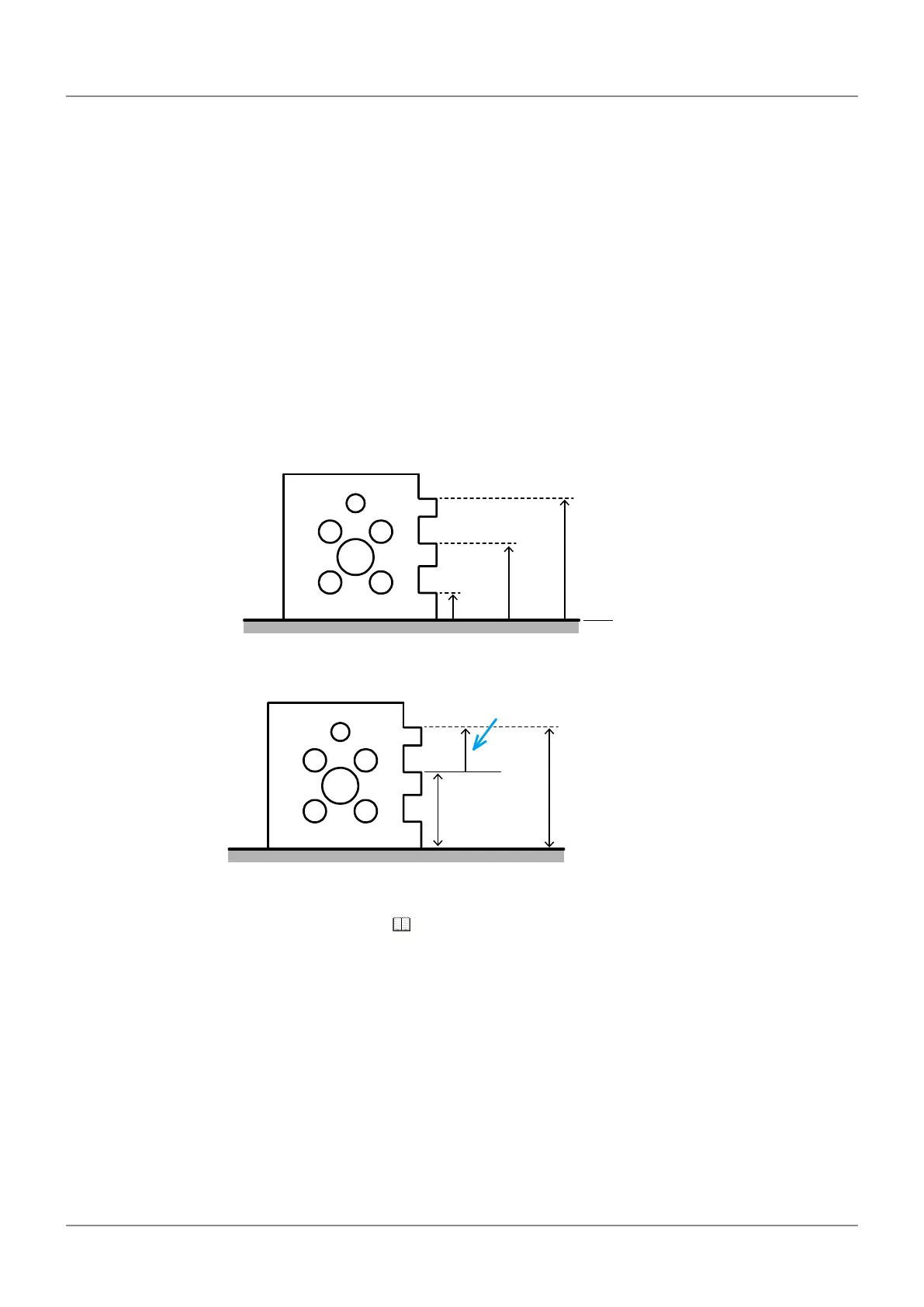

Example: The surface plate is set as the reference at 0 mm.
Surface plate
Obtain the measure
-
ment relative to the
surface plate
To use a reference other than the surface plate, assign that value as the reference.
Example: Surface a1 is set as the reference at 50 mm.
a1
70 mm
50 mm
Obtain the measurement relative to a1
Tips
For details about setting the ABS reference, "■ ABS reference setup" (page 11)
