2 Basic Measuring Methods
No. 99MAF600B
3 Move the ball while maintaining contact
with the surface of the workpiece.

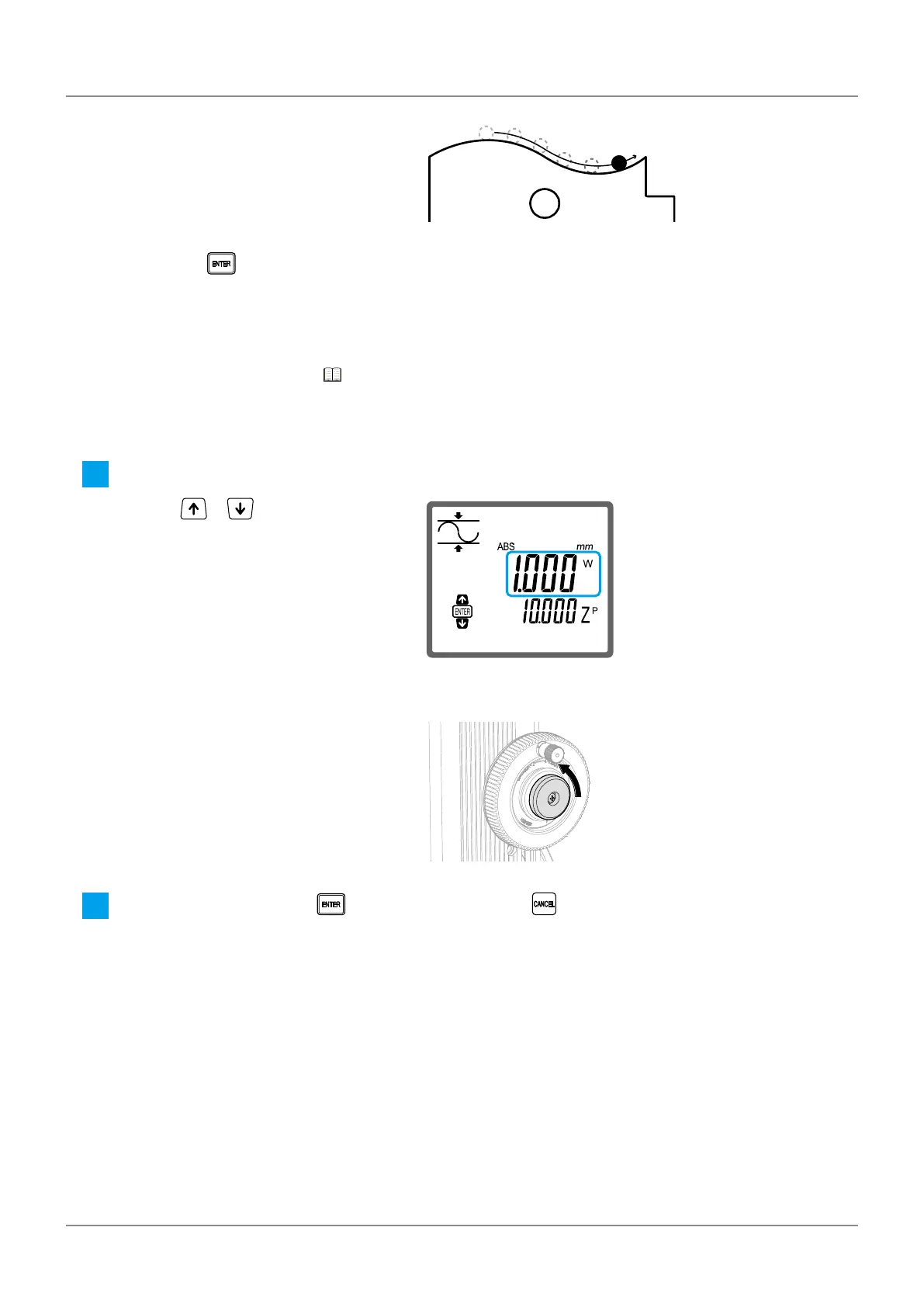

» The value displayed on the
LCD screen will change based
on the unevenness of the
workpiece.
4 When the displayed value stops chang-
ing, press .
» The measurement is complete.
Tips
If the product is connected to any external
devices, the measurement results will be
automatically output. For details, "3.9
Outputting Measurement Results to an
External Device" (page 47)
3
Check the measurement result.
1 Press or .
» With each key press, the value
displayed on the LCD screen will
change among displacement (W),
minimum (ZS), maximum (ZL).
Tips
The difference between the median dis-
placement value and the previous measure-
ment will be displayed in the bottom row of
the LCD screen.
2 If you have tightened the clamp screw,
loosen it.
4
To continue measuring press ; to nish measuring press .
