Configuration Guide
Leviton Dimensions 4000 Series Architectural Lighting Controller
Page 48
OPERATION SETUP QUICK START OVERVIEWCONFIGURATION
or Down button is pressed. You can record these
new values for the Scene if you prefer the new
lighting levels.
Checking Zone Names and Lighting Levels
The Zone Status buttons are located above the Zone LED level
indicators.

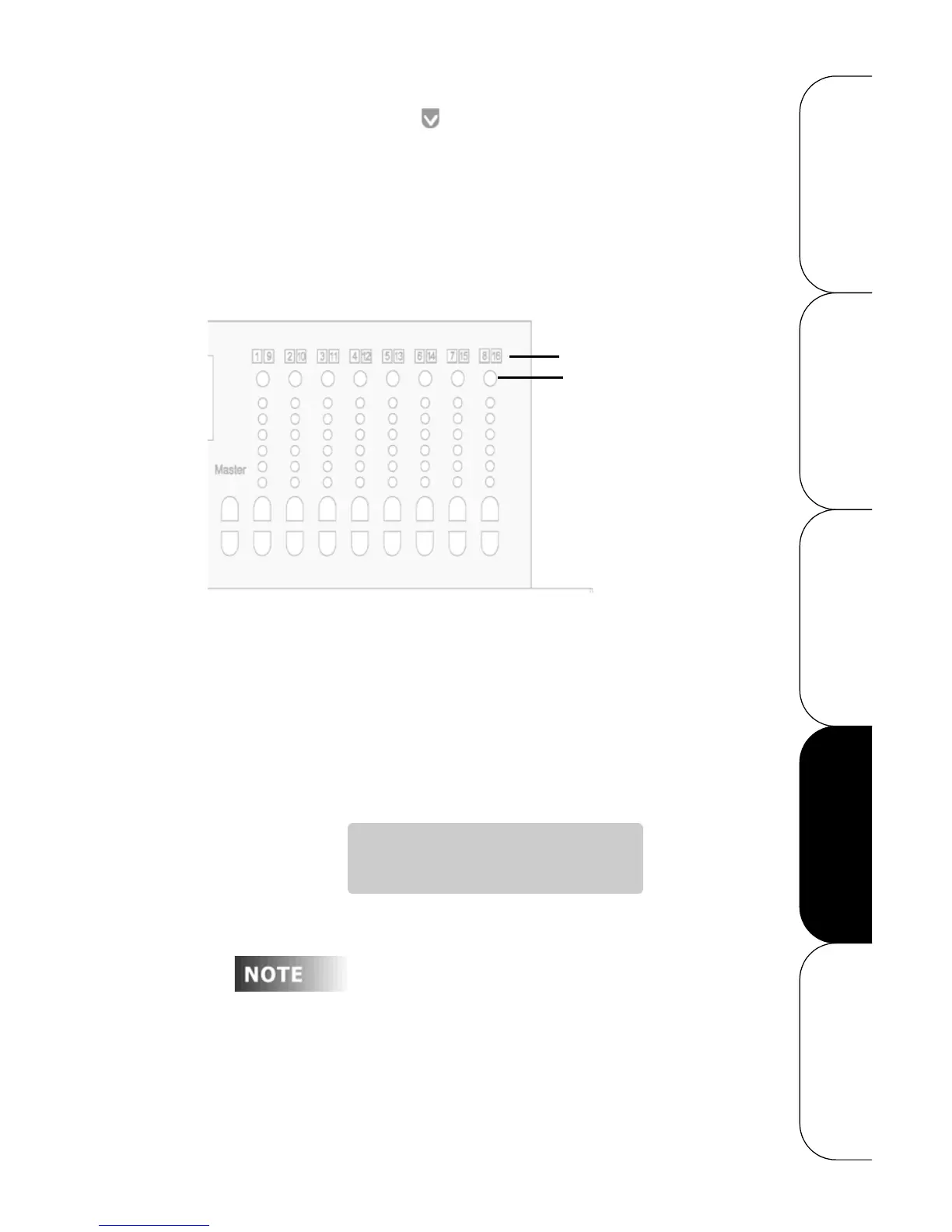

Figure 18 - Zone Status Buttons
To check a Zone:
Step 1: Press a Zone status button.
• The LCD display shows the Zone number or name (if
you have programmed one); the precise lighting level is
displayed as a percentage. Current lighting levels are not
affected.
The LCD display returns to normal after a few seconds.
Just to the right of the “Zxx:” symbol on the 2nd line
is a field that is normally blank. If this Zone is
excluded from the current scene, a minus sign (“-”)
appears in this position.
Zone LED Indicator
Zone Status Buttons
ZONE:08
Z08: LEVEL= 26%
