Configuration Guide
Leviton Dimensions 4000 Series Architectural Lighting Controller
Page 8
OPERATION SETUP QUICK START OVERVIEWCONFIGURATION
Figure 14 - Scene, MAX and OFF button Locations
• SCENES 1-8. Selects a new Scene, and causes a pre
programmed set of lighting levels to fade in while the
previously selected Scene fades out.
•
MAX. By default raises all zones to full.
•
OFF. By default, raises all zones to zero output.
With the cover open, you can also access the LCD display, the
Master Up and Down buttons, the individual Zone Up
and Down buttons, the Zone identification and status
buttons, the Zone level indicators, and the programming/
navigation buttons.
Navigating Menus
To navigate the menus, use the programming/navigation
buttons:

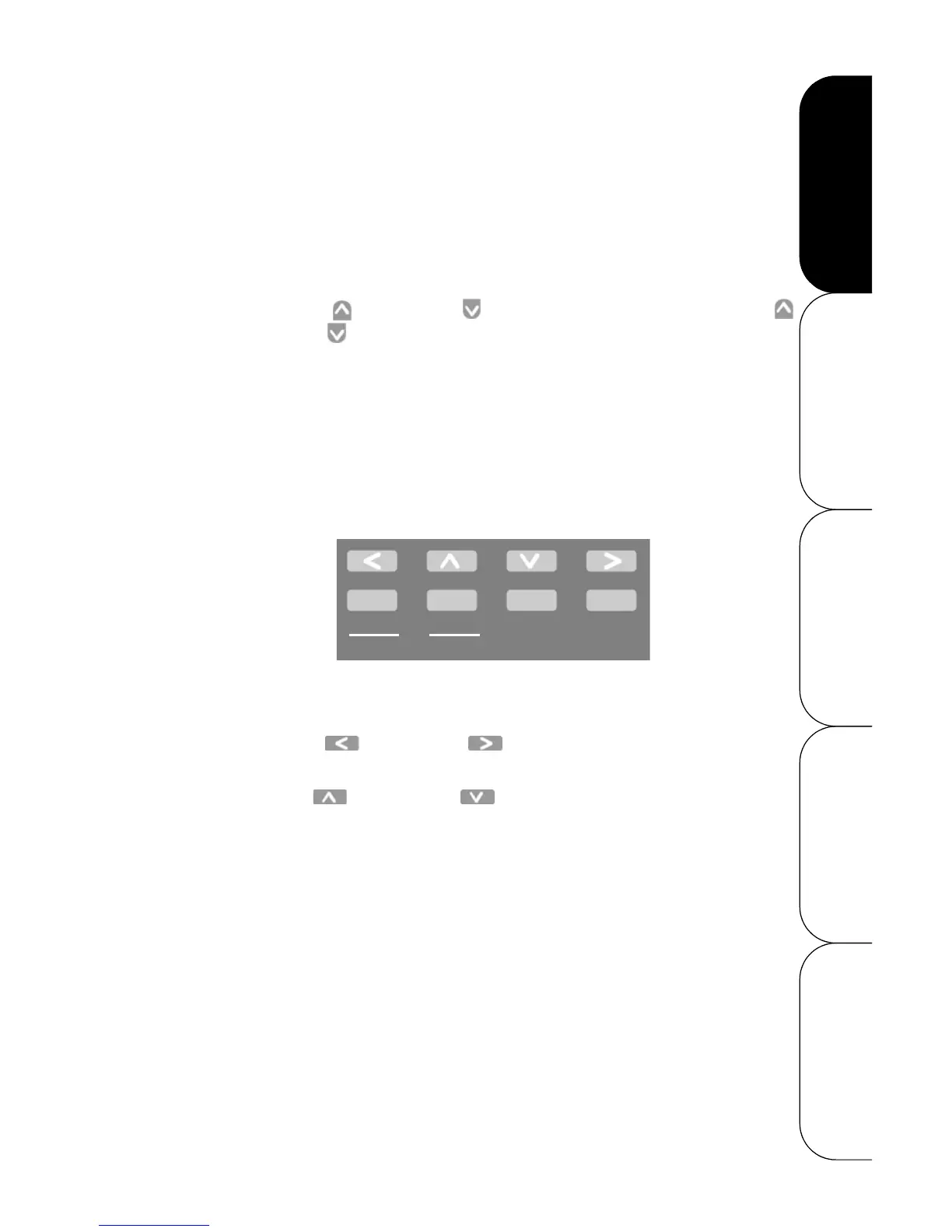

Figure 11 - Programming Buttons
• Left and Right . Moves the cursor back and
forth, or to the previous or next item.
• Up and Down . Scrolls through menus and
submenus; changes selected values.
• Select/Save. Selects a value to be modified; saves the
modified value.
• Menu/Cancel. Enters menu mode; exits submenus; exits
menu mode.
• Clear. Clears or returns a selected value to zero.
• Page Zones. Alternates the Zone numbers between 1-8
and 9-16, 17-24 and 25-32. The LCD will indicate which
Page you are currently in. P1 refers to Zones 1-8, P2
Select
Save
Menu
Cancel
Clear
Page
Zones
To Next Page
