Instruction Manual #122162 11

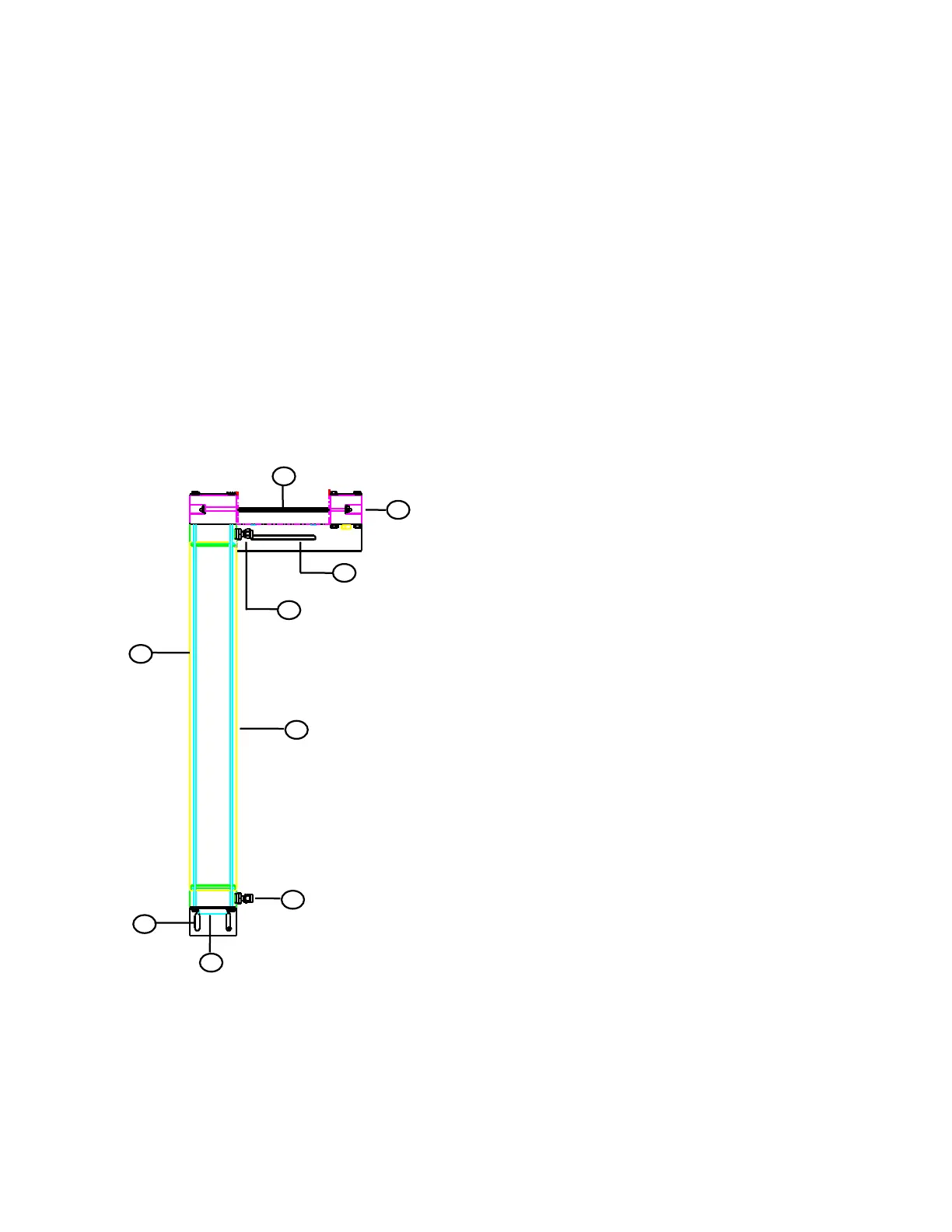

2.1.1 (Optional) CD-20 Condenser
The optional CD-20 Condenser is designed to work with the SENTRY 1510 as an integrated
system. The CD-20 is designed to remove moisture from wet processing such as steam
oxidation or steam cleaning. Whenever a SENTRY 1510 will see a wet process, a BAI or OEM
comparable condenser is required. See section 5.9 for the “AVP” condenser information. Water
is the only cooling medium approved for the use with the CD-20 Condenser.
CD-20 Input Port provides a means for connecting the CD-20 to the process exhaust output
from the tool.
Cooling Water Input Port accepts a ¼” OD water supply line. The water does not have to
be chilled. Any flow metering device intended to control the water flow must be installed prior to
the input port.
Lower Mounting Bracket is used for mounting the CD-20 to the process tool or other
support structure.
Lexan Outer Wall is an enclosure that provides some impact protection to the internal
quartz tube.
Cooling Water Outlet accepts a ¼” OD water return line. Any flow metering must not be
incorporated on the return line.
Tie Rods secure the condenser tubes and lower mounting bracket with the upper mounting
bracket. No user serviced parts are included The tie rods must not be disconnected.
Upper Mounting Bracket is used for mounting the CD-20 to the process tool or other
support structure.
Connecting Rods are used to secure the SENTRY 1510 to the CD-20 to provide an
integrated pressure and moisture control system.
