Instruction Manual #122162 13

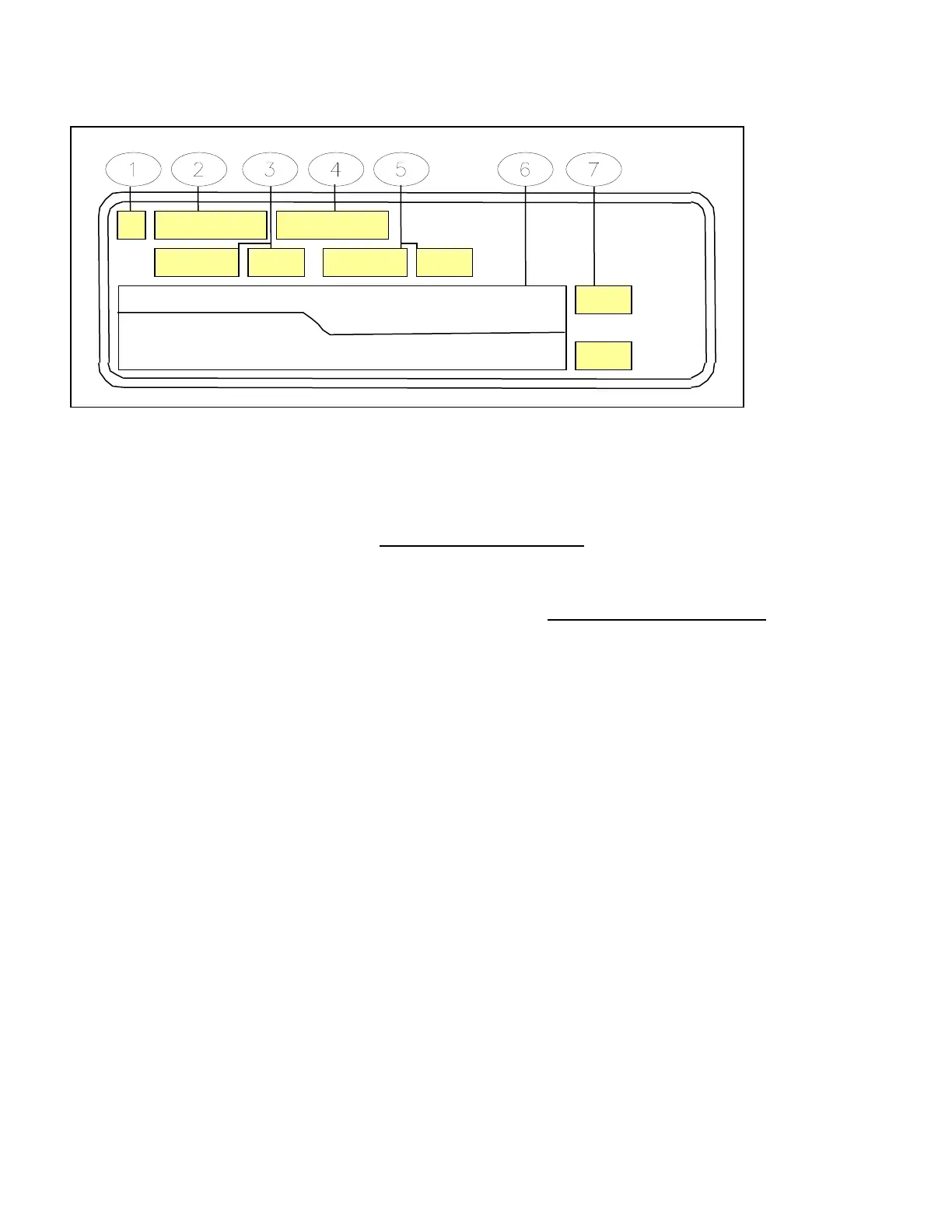

2.1.3 Display TIM-100/200
Selection Indicator An asterisk symbol [*] will appear in the selection indicator box when a
menu item is chosen by pressing the asterisk key [*] on the keypad.
Menu Item Name Display indicates the current menu item available for modification. The
user can scroll the menu by using of the arrow keys on the keypad.
Exhaust Set Point indicates the currently active (desired) set point. This value indicates
pressure with an implied decimal point (1700 = 17.00 mm H
2
O).
Menu Item Value Display indicates the current stored value for the menu item displayed.
Process Exhaust (Actual) Read-Back indicates the currently achieved (actual) process
exhaust read-back. This value indicates pressure with an implied decimal point (1700 = 17.00
mm H
2
O).
Graphical Display The graphical display provides a real-time plot of the process exhaust
read-back.
Full Scale Process Exhaust The full-scale process exhaust indicates the factory configured
full-scale range of the unit being operated. Depending on the SENTRY 1510 model, this value
will indicate 2540 or 5080 for 1” H
2
O and 2” H
2
O (25.4 and 50.8 mm H
2
O) full-scale
configurations respectively.
