4 Displays

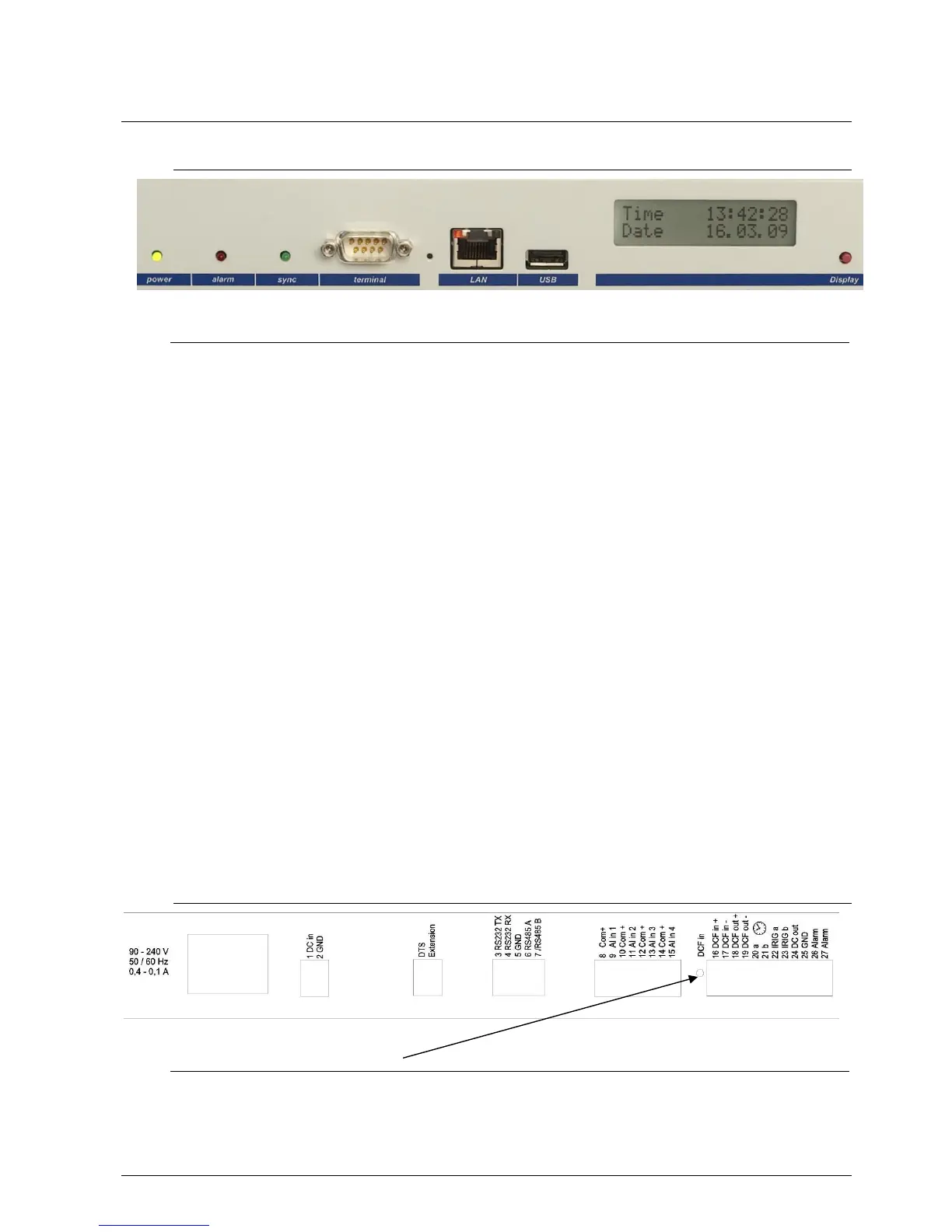

4.1 LED displays front view
Description Color Status Description
power Green On
Off
Mains or DC power supply is in order
No power supply
alarm Red On
Off
The alarm relay signalizes an alarm
No active alarms
sync Green On
Flashing
Off
DTS 480x masterclock can read the time from a
synchronization source
Time source internally (RTC) or manual time setting
(flashing till "NTP synch. Lost" alarm appears or an
external time source is available after restart)
Synchronization source is not available.
Off when alarm "Failure time source Str" occurs.
See chapter 6.5.12, menu 1: "Stratum limit for
synchalarm".
For DCF time source the delay for this alarm is
defined in chapter 6.5.13, menu 7: "Stratum TO (0-16)
DCF/GPS fail".
LAN control lamps:
Left Green
Orange
Blinking
Blinking
Network activity
No connection to network
Right Yellow Off
On
10 Mbit
100 Mbit
4.2 LED displays rear view
Description Color Status Description
DCF in red Blinking DCF (GPS reception)
