8 Time administration
8.1 Concept of time administration
The internal master clock as well as the real-time clock runs with UTC (Universal Time
Coordinated). The synchronisation inputs, the time shown on the display, as well as all outputs
are linked via a time zone entry with the master clock time, i.e. all inputs and outputs can be
individually allocated to a specific time zone.

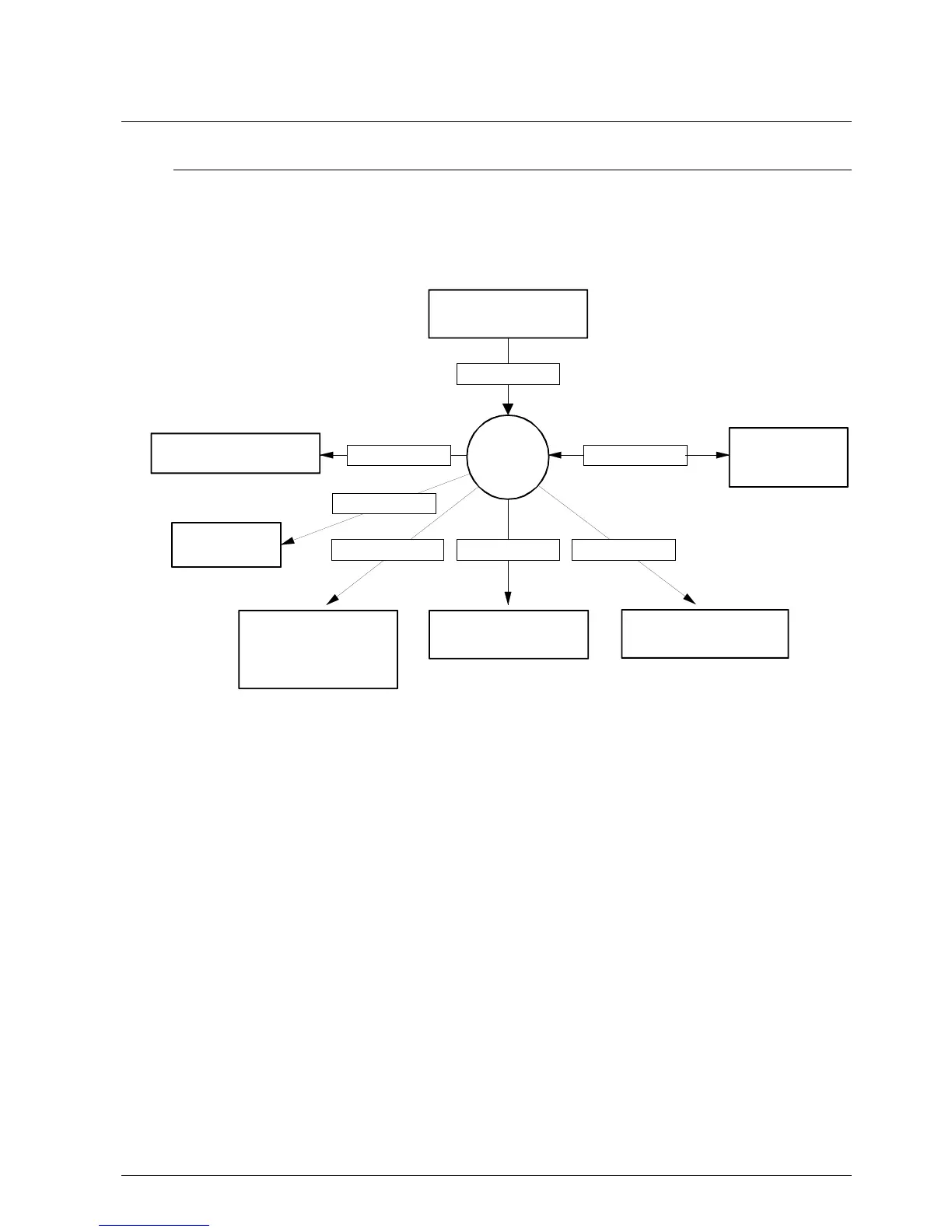

External DCF
Time Source
UTC
Master
Clock
(DCF 77)
Time Code output
Switch Program
Time Zone Entry
(C)
- Operation
- Display
- Error report
(D)
(A)
(B)
Time Zone Entry Time Zone Entry
Time Zone Entry
MOBALine, (IRIG),
Impulse Line,
DCF active line
DTS 4802: 2 lines
(E)
Time Zone Entry
RS485 Slave Clock Line
Serial Telegrams
Time Zone Entry
LAN Multicast
Devices
Time Zone Entry
(G)
(F)
Configurable time zones:
(A) Chapter 6.5.22
(B) Chapter 6.5.13
(C) Chapter 6.5.2, 6.5.4
(D) Chapter 0
(E) Chapter 6.5.10
(F) Chapter 6.5.7 6.5.8
(G) Chapter 6.5.9
