Mobatime DTS 4801.masterclock - Plug-In Spring Terminals; Connection of GPS 4500, DCF 450; 4500 or GNSS 3000

© MOBATIME 95 / 120 800652.11

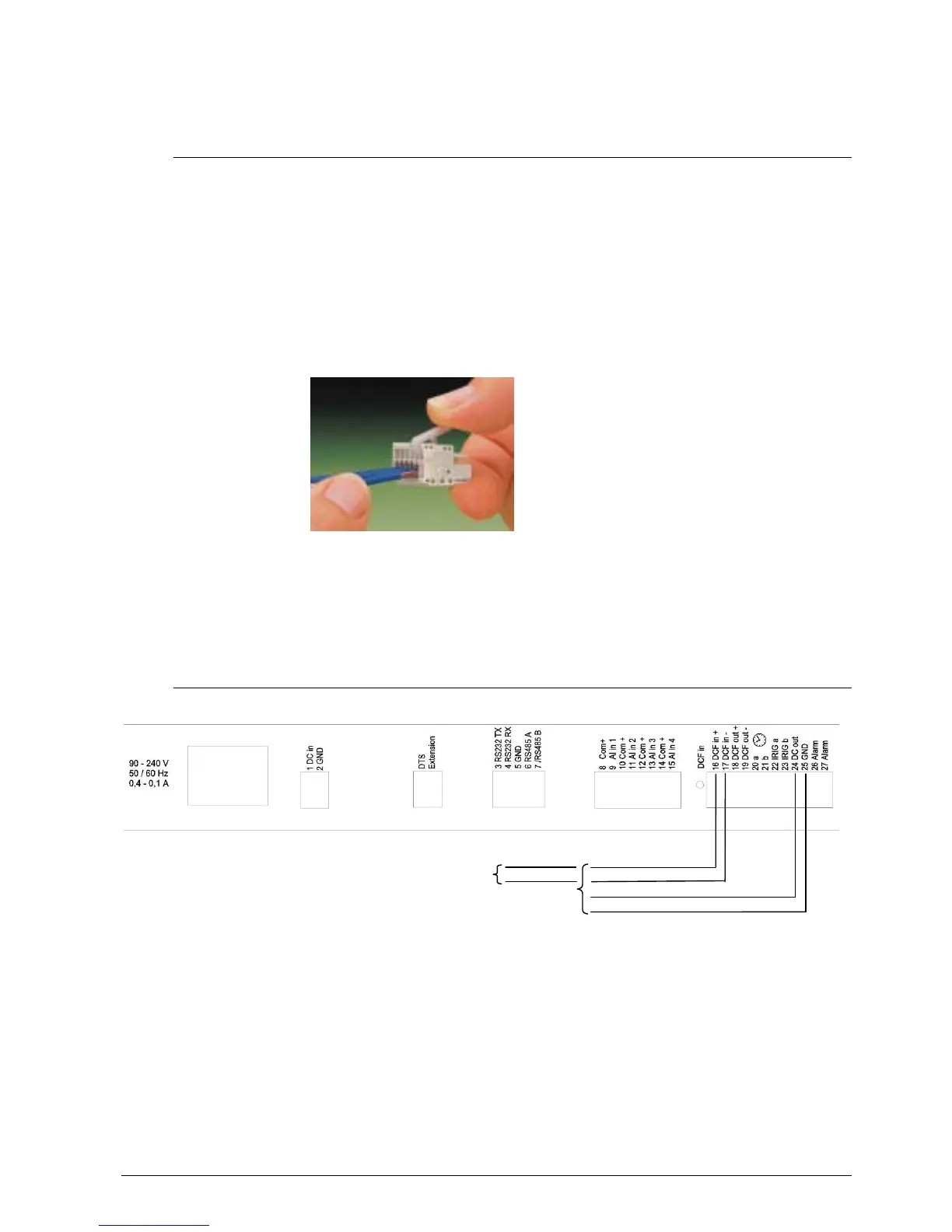

A.4 Plug-in spring terminals
Multiple contact strip 100% protected against wrong plug;
WAGO CAGE CLAMP®-connection
Cross section of 0,08 mm² to 1,5 mm² (from AWG 28 to AWG 14)
Voltage CSA 300 V / current CSA 10 A
Rated voltage: EN 250 V
Rated surge voltage: 2,5 kV
Nominal current: 10 A
Strip length: 7 mm (0,28 in)
Pulled out spring terminal with operation tool:
2 operation tools are delivered with the accessory bag.
A.5 Connection of GPS 4500, DCF 450 / 4500 or GNSS 3000
Connection of DCF and
GPS receiver
GNSS 3000 according to manual Bx-800813 chap. 9.2 Connection schematics DCF current
loop
DCF receiver
GPS 4500
white
brown
yellow
green
