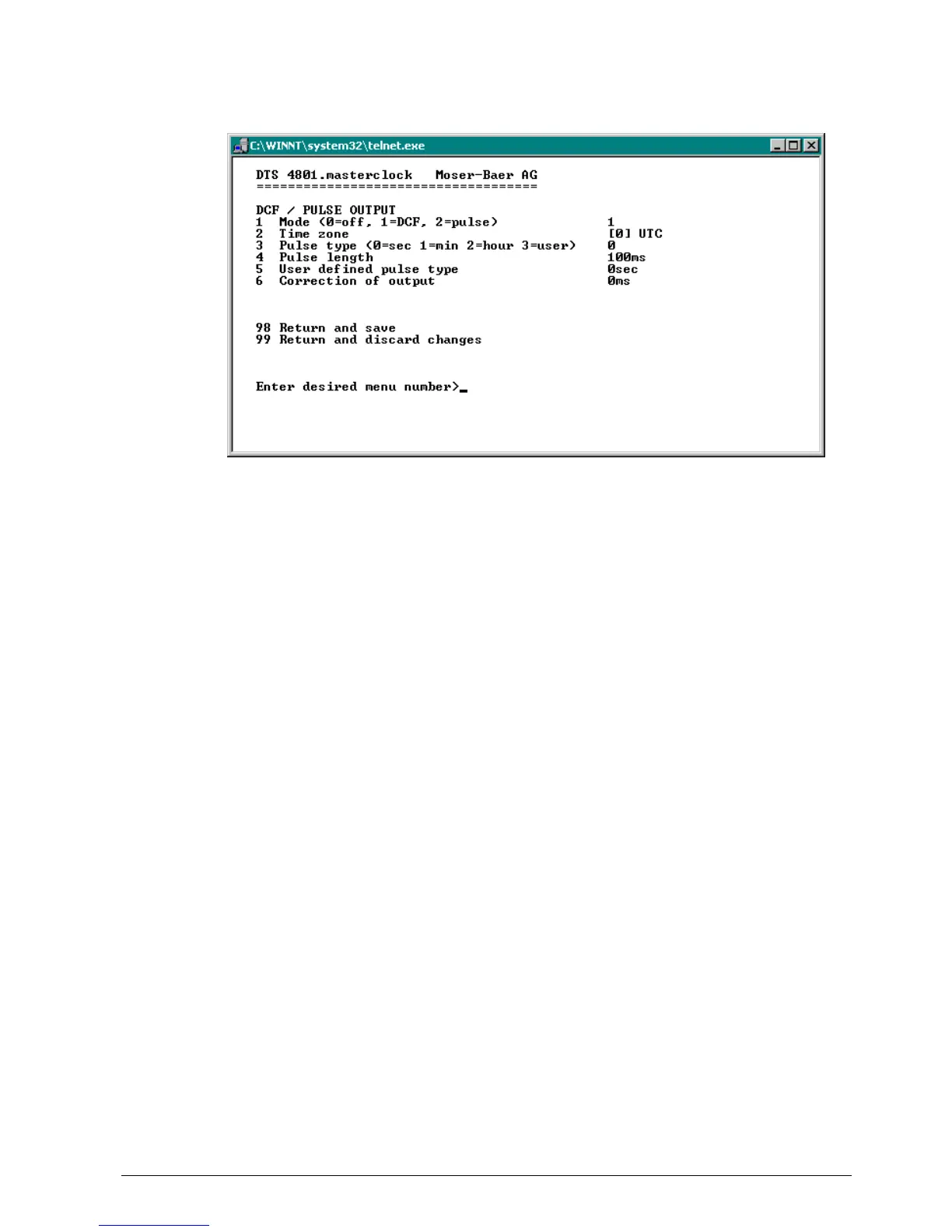

6.5.6 DCF / Pulse output
1. Select line function: Line switched off, line DCF output, line pulse output
2. Select time zone -> see chapter “6.5.28 Time zone selection“
3. Select pulse mode: every second, minute, hour or user-defined.
(Only active with the pulse output function)
4. Select pulse length in ms (20-500ms)
(Only active with the pulse output function)
5. User-defined pulse interval (1-3600 sec) only active with pulse type 3 (=user) (the
value is also only then displayed). The pulse always occurs after a multiple of the
pulse interval from the 0 second in the 0 minute, e.g.:
– Pulse interval 960 sec. (16 min.)
 Pulse occurs: 00:00:00, 00:16:00, 00:32:00, 00:48:00, 01:00:00, 01:16:00 ...
– Pulse interval 25sec
 Pulse occurs: 00:00:00, 00:00:25, 00:00:50, 00:01:15, 00:01:40, 00:02:05 ...
... 00:59:35, 01:00:00, 01:00:25 ...
6. Output correction (-500ms...+500ms)
