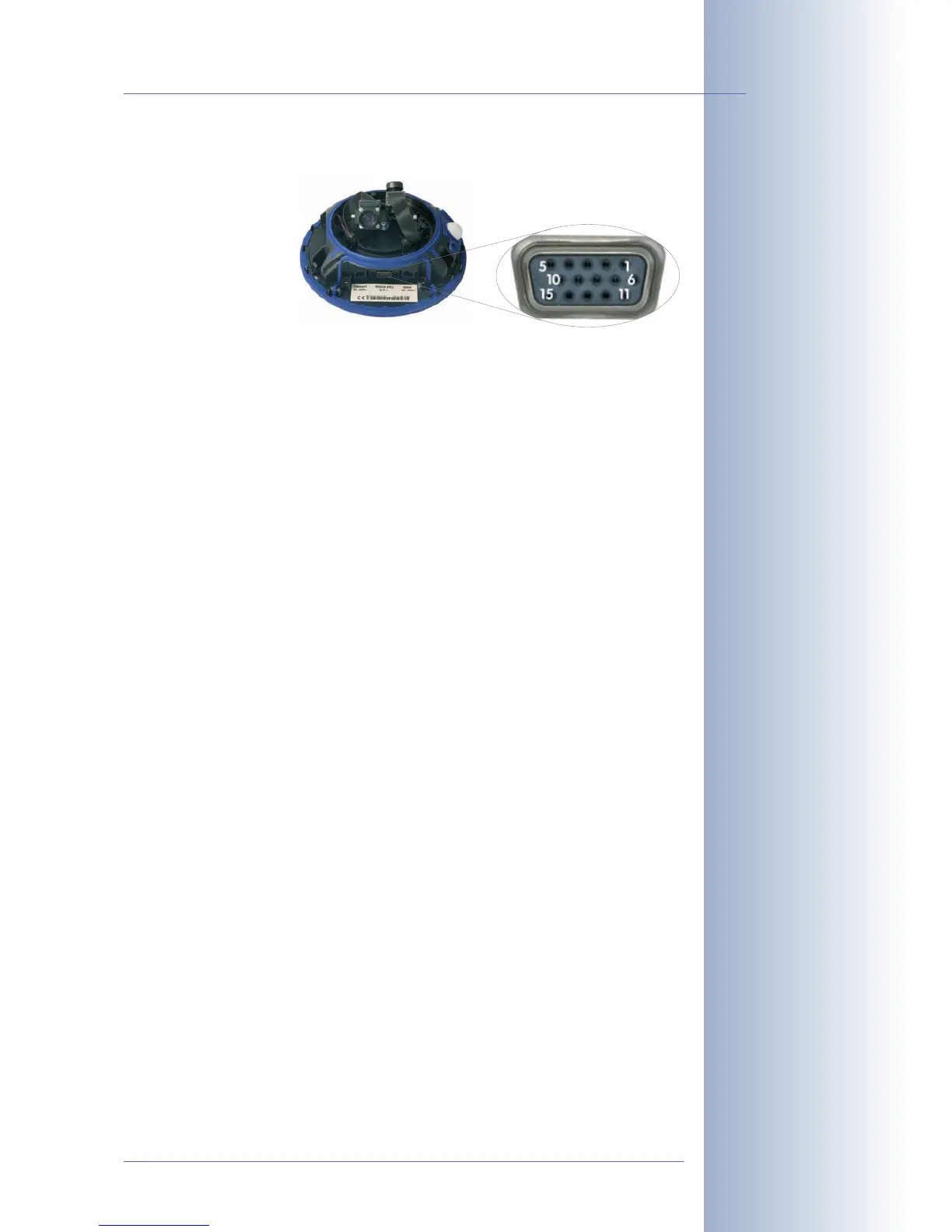

Expanded connections - MX Interface Connector D Sub 15 HD
Depending on your
requirements, you can
connect additional sen-
sors via the D Sub 15
HD socket of the
MOBOTIX M12, D12 and
V12 models, allowing
you to expand the
range of sensors already in the camera. Likewise, you can use the signal outputs of
the camera to switch or trigger external devices, such as alarm systems. The D Sub
15 HD socket also provides a Line In pin, a Line Out pin, power supply for USB
devices, USB master data signals and a pin for connecting a backup power supply
(can also be used by solar panels).
