2.11.4 Mounting the Outdoor Wall Mount to the Corner and Pole Mount
Use the stainless steel screws, washers and hex nuts supplied with the Corner
and Pole Mount for affixing the Outdoor Wall Mount to the Corner and Pole Mount
already in place.

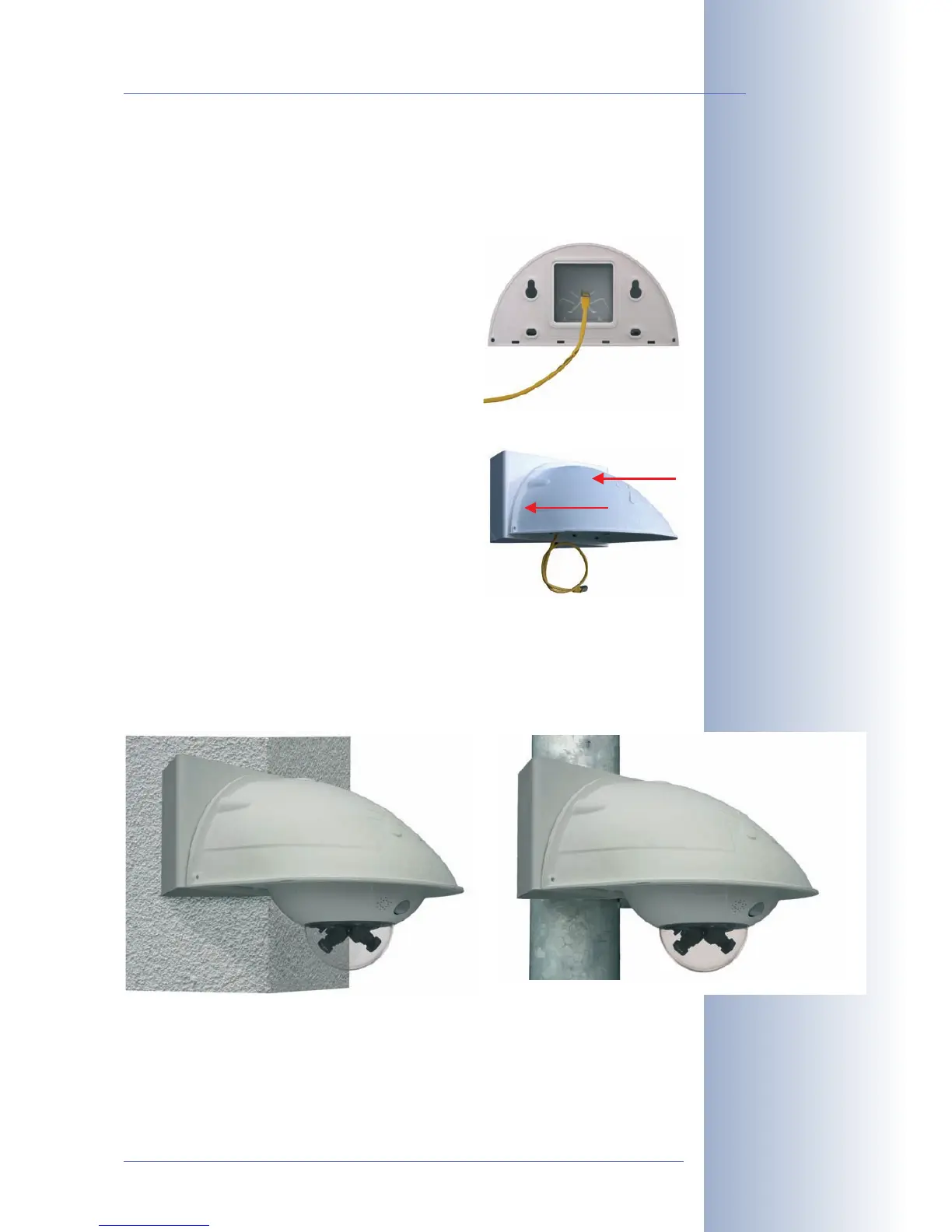

• Lead the cables through the appropriate hole
at the back of the Outdoor Wall Mount.
• Use the Allen crews M8x35mm (item5.1),
washers dia. 9mm (item5.2) and nuts M8
(item5.3) supplied with the Corner and
Pole Mount to attach the Outdoor Wall Mount
to the Corner and Pole Mount.
Next, mount the camera to the Outdoor Wall Mount, as described in section
2.12.3, Determining the Position of the Camera on the Bottom Plate .
