Mobotix D12 - 2.11 Corner and Pole Mount Installation

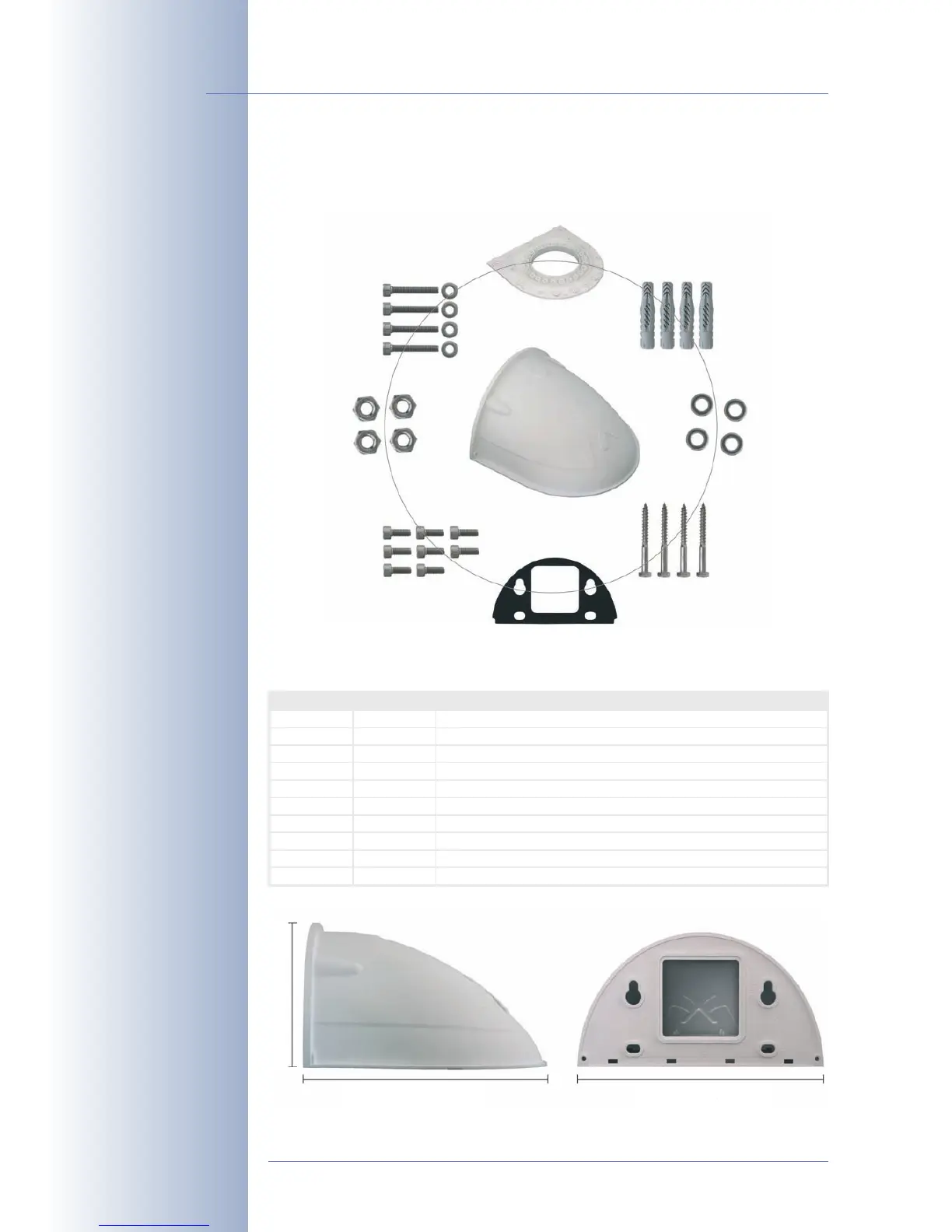

2.9 Delivered Parts of the Outdoor Wall Mount (Optional Acces-
sory)
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
54/132
D12 Camera Manual Part 1
Make sure to check the
delivered parts!
The rectangular hole in
the center of the rear
covers the wall outlet
Item Count Part Name
4.1
4.2
1
1
Outdoor wall mount
Bottom plate
4.3
4.4
4.5
4.6
4
4
Dowels 10 mm
Stainless steel washers Ø 9mm
4
1
Stainless steel wood screws with hex head 8x70mm
Wall sealing
4.7
4.8
4.9
4.10
8
4
Stainless steel Allen screws M4x10mm
Stainless steel hex nuts M4
4
4
Stainless steel Allen screws M4x25mm
Stainless steel washers Ø 4.3mm
Bottom plate (item4.2)
4 dowels 10 mm
(item4.3)
4 washers Ø9mm
(item4.4)
4 wood screws
8x70mm (item4.5)
Wall sealing (item4.6)
8 Allen screws M4x10mm
(item4.7)
4 hex nuts M4 (item4.8)
4 Allen screws M4x25 mm
(item4.9)
4 washers Ø 4,3 mm
(item4.10)
Outdoor Wall Mount
(item4.1)
Depth: 275mm/10.8in
Height: 160mm/6.3in
Width: 293mm/11.5in
