Mobotix D12 - 3.3 First Image and Initial Camera Setup

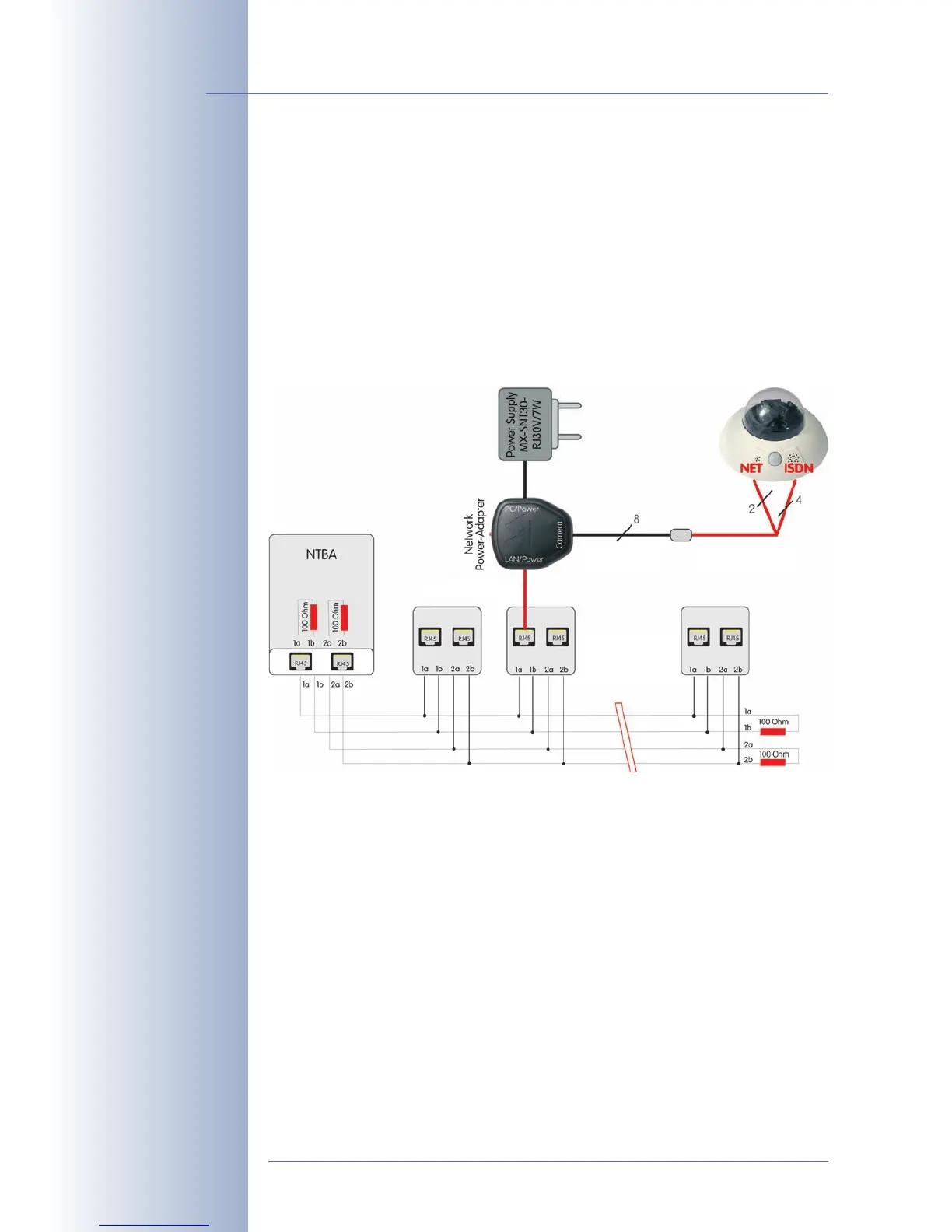

3.2.7 ISDN: Power Supply Using a Network Power Adapter
(1) Push the designated connector of the ISDN split cable (
MX-OPT-ISDN-SPLIT;
optional accessory) into the 10BaseT/NET connector and the remaining
cable into the ISDN connector of the camera.
(2) Use an 8-wire (patch) cable to connect the Camera connector of the Network
Power Adapter to the socket of the ISDN split cable.
(3) Connect the LAN/Power connector of the Network Power Adapter to the
ISDN S0 bus/NT.
(4) Plug the RJ45 connector of the external power unit into the PC/Power con-
nector of the Network Power Adapter.
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
90/132
D12 Camera Manual Part 1
1 cable
(pin 7-8,30V)
Max. 20m/
60 ft
MX Split
Cable
Max. 10m/30 ft
