2.4.2 Camera Housing and Connectors - D12D Standard

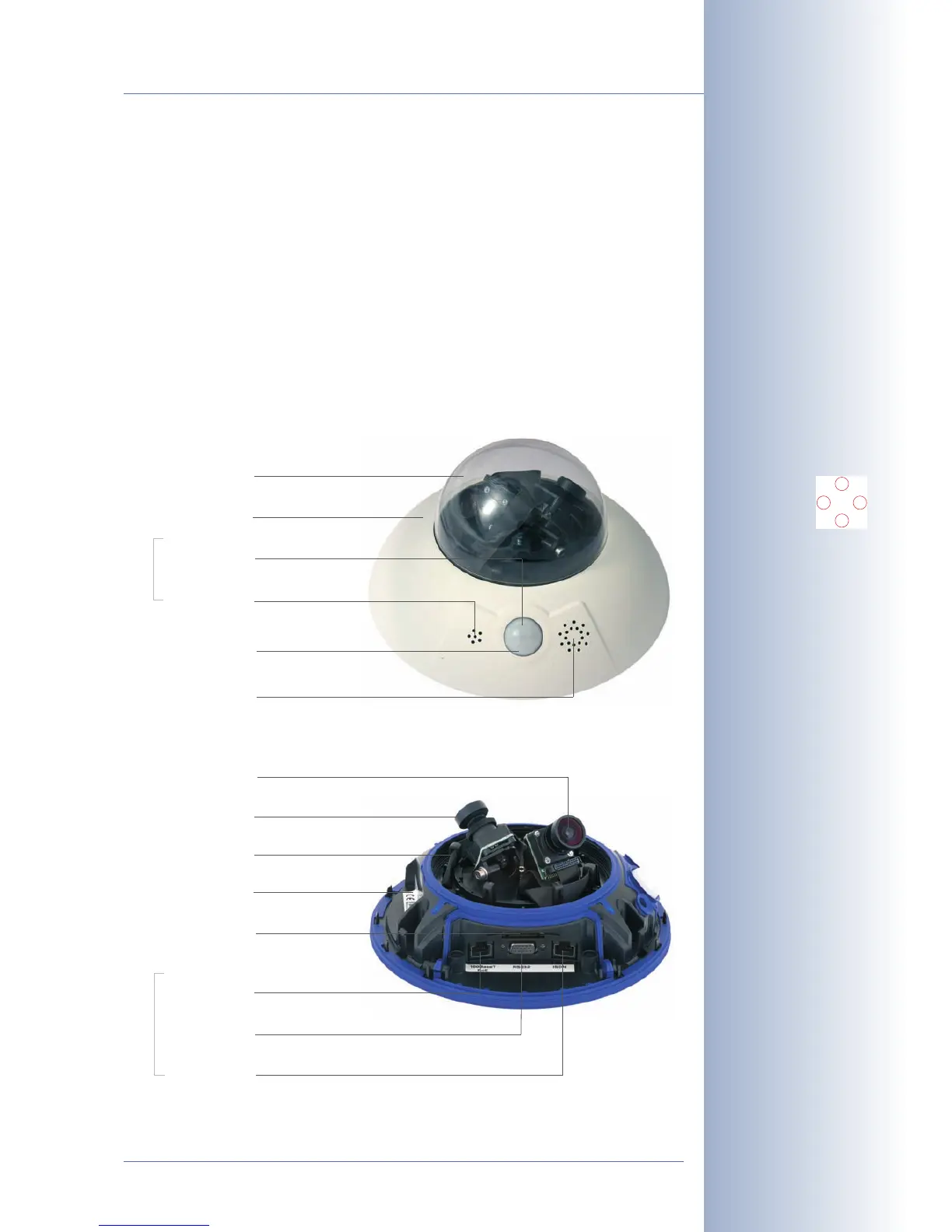

The MOBOTIX D12D consists of three main components (camera housing
(item1.1), outer shell (item1.9) and dome (item1.8)). Like the MOBOTIX M12 mod-
els, the MOBOTIX D12D is also delivered with PIR sensor, microphone and speaker.
External Sensors
• PIR sensor
• Microphone
Connections
• NET (Ethernet network) / power supply
• In/Out / RS232 / MX Interface Connector D Sub 15 HD
• ISDN
• Slot for SD card
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
37/132
D12 Camera Manual Part 1
MOBOTIX D12D
Signals of the
camera LEDs:
0 Power
1 Image processing/event
2 Ethernet
5 Image processing/event
1
2
0
5
37/120
"Right" lens unit
PIR sensor
Outer shell
Dome
Microphone
Speaker
"Left" lens unit
Factory IP address
NET
MX Interface Connector
D Sub 15 HD
ISDN
External Sensors
Connectors
4 LEDs (behind PIR
cover)
Ribbon cable
Slot for SD card
