2.12 Mounting the Camera With the Outdoor Wall Mount
2.12.1 Setting the Direction of the Passive Infrared Sensor (PIR)
When mounting the camera, make sure that the PIR sensor points into the
direction where it is most useful. The PIR sensor reaches about 10 me-
ters (33 ft) and has a field of view of ±15°.
The positions that are available depend on how high the MOBOTIX
D12D-Outdoor has been mounted and the position of the camera on
the bottom plate (item4.2), which can be adjusted in steps of 15 degrees
(see also section 2.12.3,
Determining the Position of the Camera on the Bottom
Plate
).
Hint: It may be useful to mark the ideal position of the PIR sensor on the bottom
plate with a pencil.
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
60/132
D12 Camera Manual Part 1

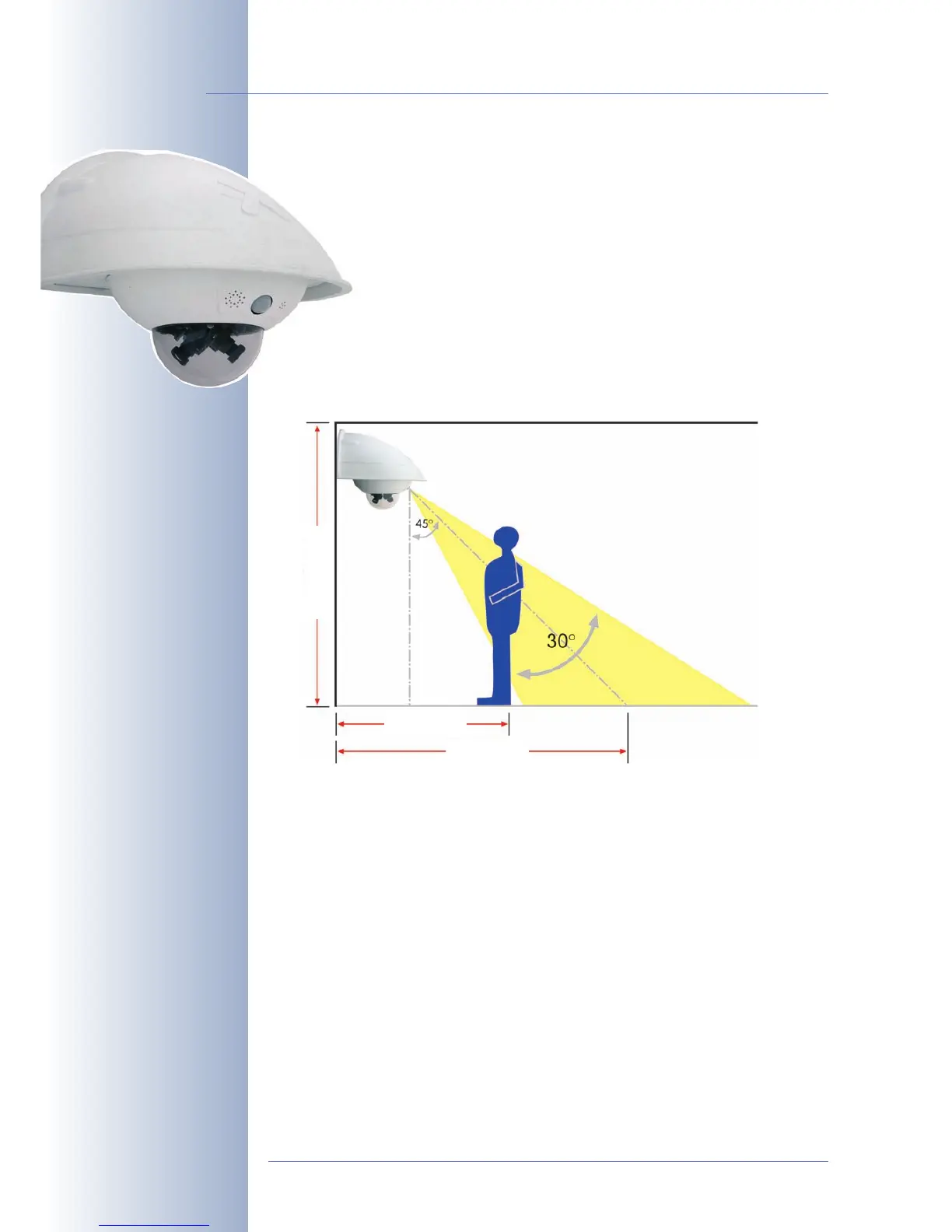

PIR specs: range approx.
10m (30ft), field of view
approx. +/-15°
D12 with Outdoor
Wall Mount
1.6 m/5.3 ft
3 m/10 ft
2.8 m/9.2 ft
