2.7.2 Camera Housing and Connectors - D12M-CS
The MOBOTIX D12M-CS consists of three main components (camera housing
(item3.1), outer shell (item3.9) and dome (item3.8)). Like the MOBOTIX M12
models, the MOBOTIX D12M-CS is also delivered with PIR sensor, microphone and
speaker.
External Sensors
• PIR sensor
• Microphone
Connections
• NET (Ethernet network) / power supply
• In/Out / RS232 / MX Interface Connector D Sub 15 HD
• ISDN
• Slot for SD card
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
49/132
D12 Camera Manual Part 1

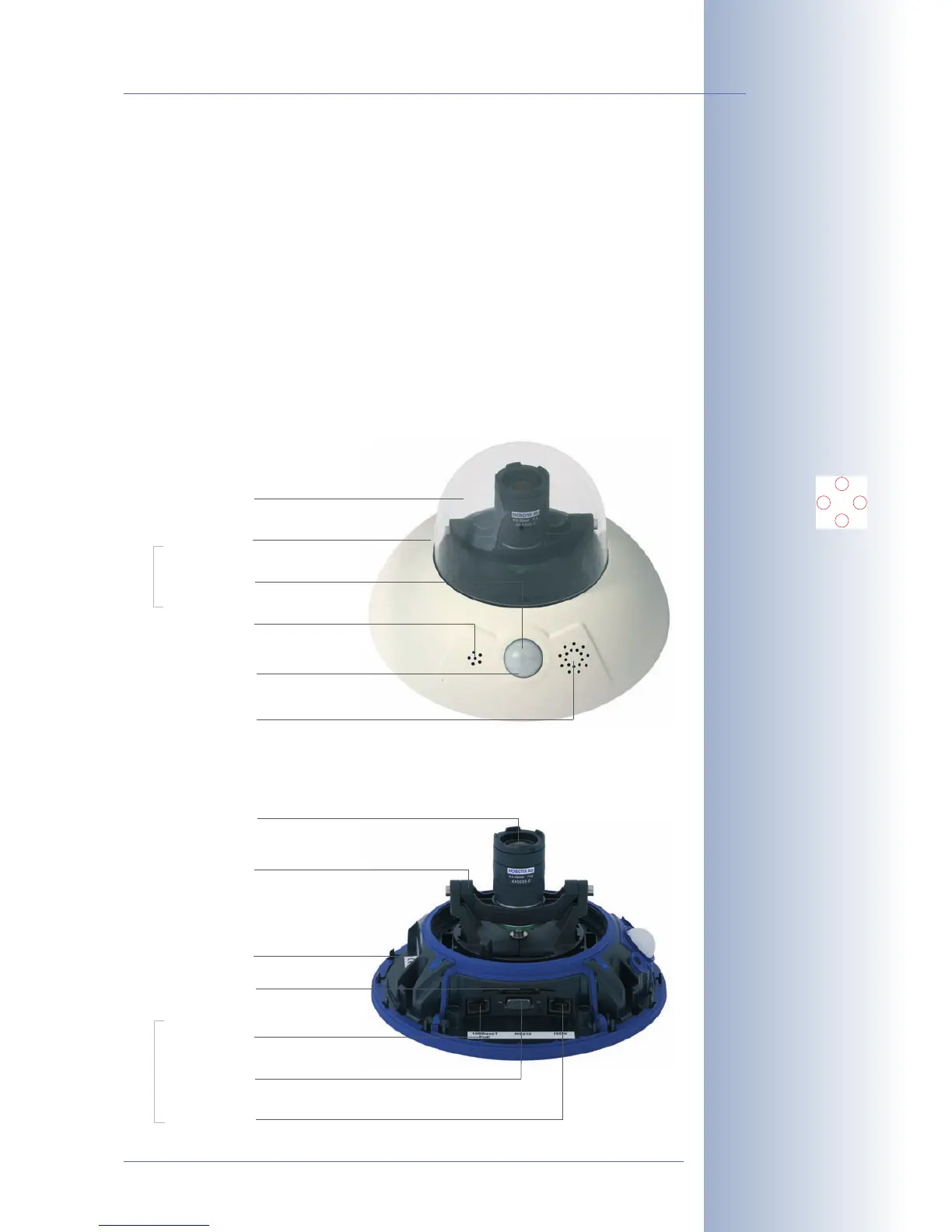

MOBOTIX D12M-CS
Signals of the
camera LEDs:
0 Power
1 Image processing/event
2 Ethernet
5 Image processing/event
1
2
0
5
Enlarged dome
PIR sensor
Outer shell
Microphone
Speaker
Factory IP address
NET
MX Interface Connector
D Sub 15 HD
ISDN
External Sensors
Connectors
4 LEDs (behind PIR
cover)
Slot for SD card
CS-Mount lens
unit
Lens bridge
