2.12.2 Mounting the Outdoor Wall Mount
Ideally, the Outdoor Wall Mount is mounted over the tested wall outlet, which pro-
vides the connections (network, ISDN, Power over Ethernet) to the camera.
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
61/132
D12 Camera Manual Part 1

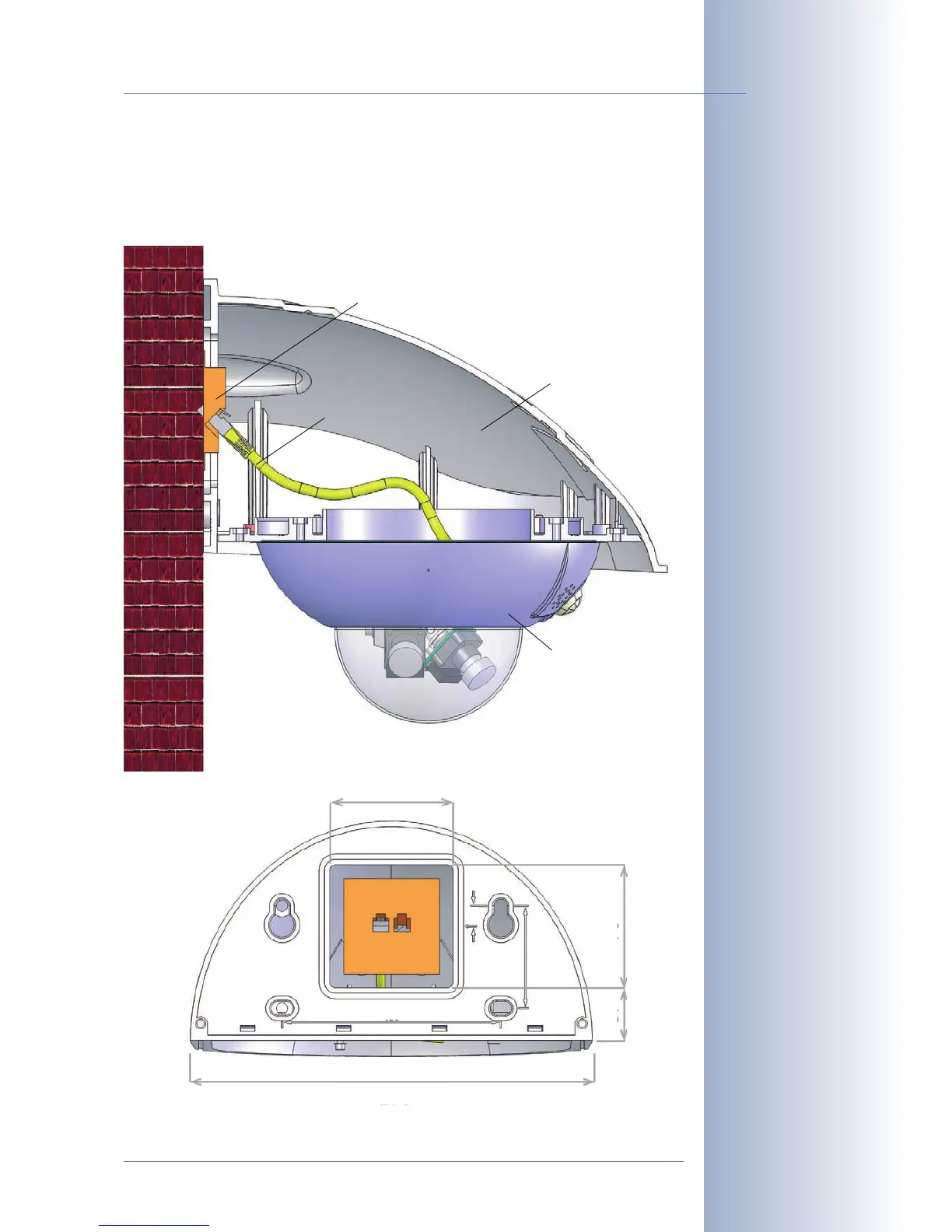

Mounting the Outdoor
Wall Mount and the cam-
era
Wall outlet
CAT5 cable
D12 Outdoor
Wall Mount
D12
90 mm/3.5 in
293 mm/11.5 in
90 mm/3.5 in
37 mm/1.5 in
75 mm/3 in
15 mm/0.6 in
160 mm/6.3 in
