Mounting
Installing the Sensor Modules
4. Properly connect the sensor module cables:
Push the plug of each sensor module cable firmly into the connector at the back of the module until the
connector is fully inserted into its seat. If this is not the case, again push the connector firmly into its
seat until it doesn’t go in any further.

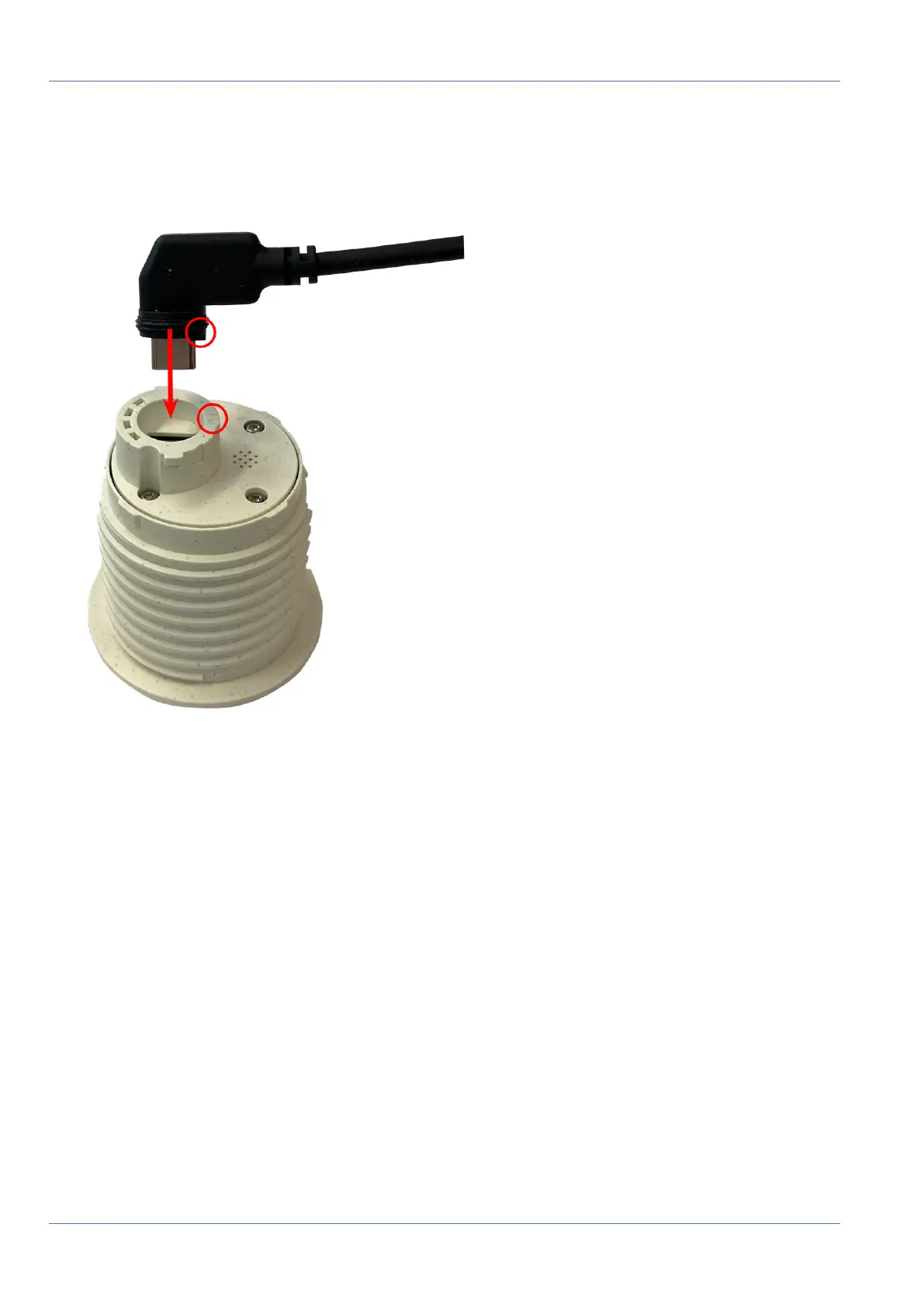

Fig. 9: Connect the sensor module cable
When using blind modules, also insert the connector into the receptacle as shown below.
