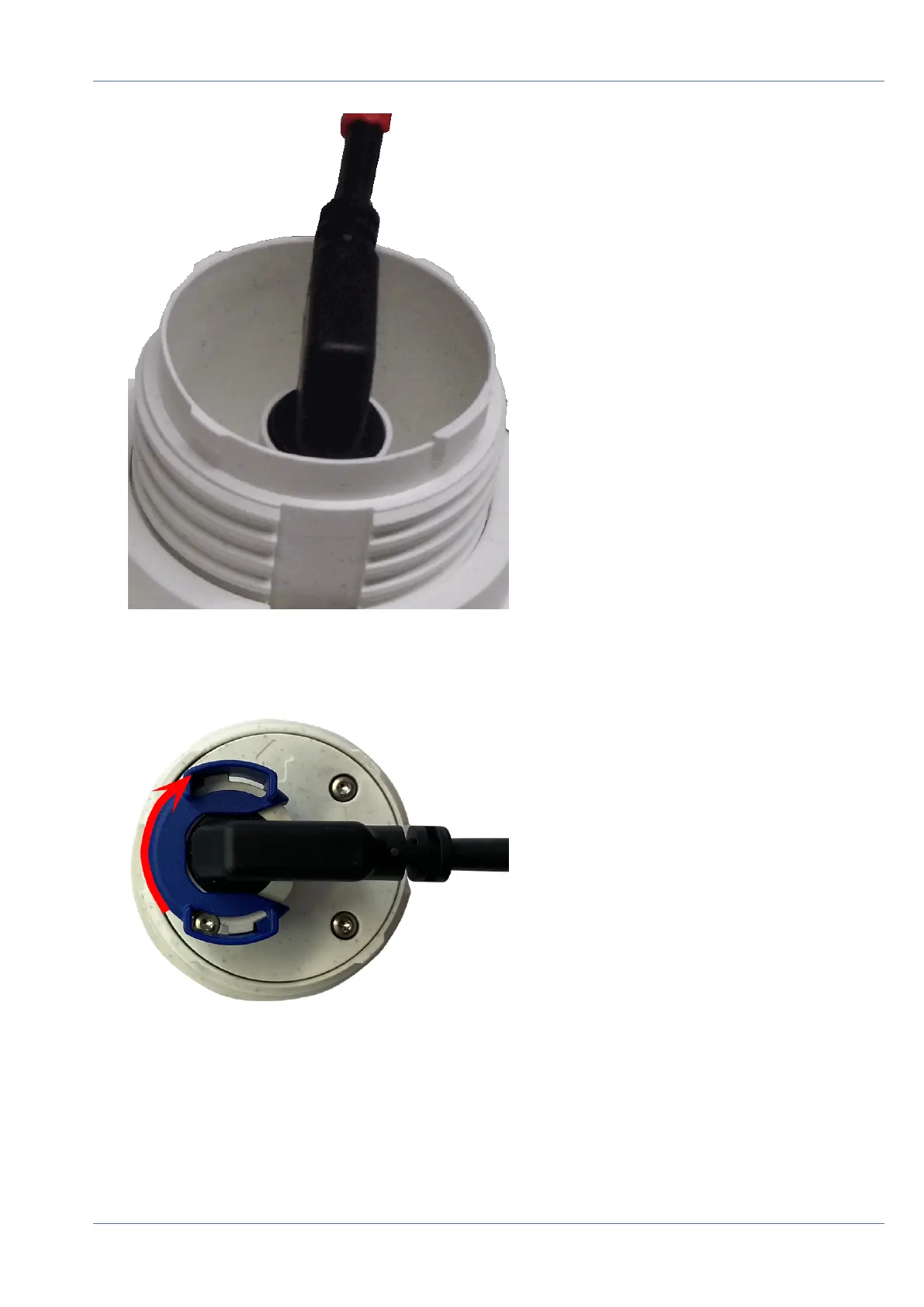

Fig. 10: Back of blind module with connector attached
5. Lock sensor module cable: Apply the blue bayonet catch onto the connector of the sensor module as
shown and turn it clockwise until it gently snaps shut.
Fig. 11: Lock sensor module
