Mounting
Connecting the camera
6. Insert the ground wire into the white single-wire rubber plug C.4:

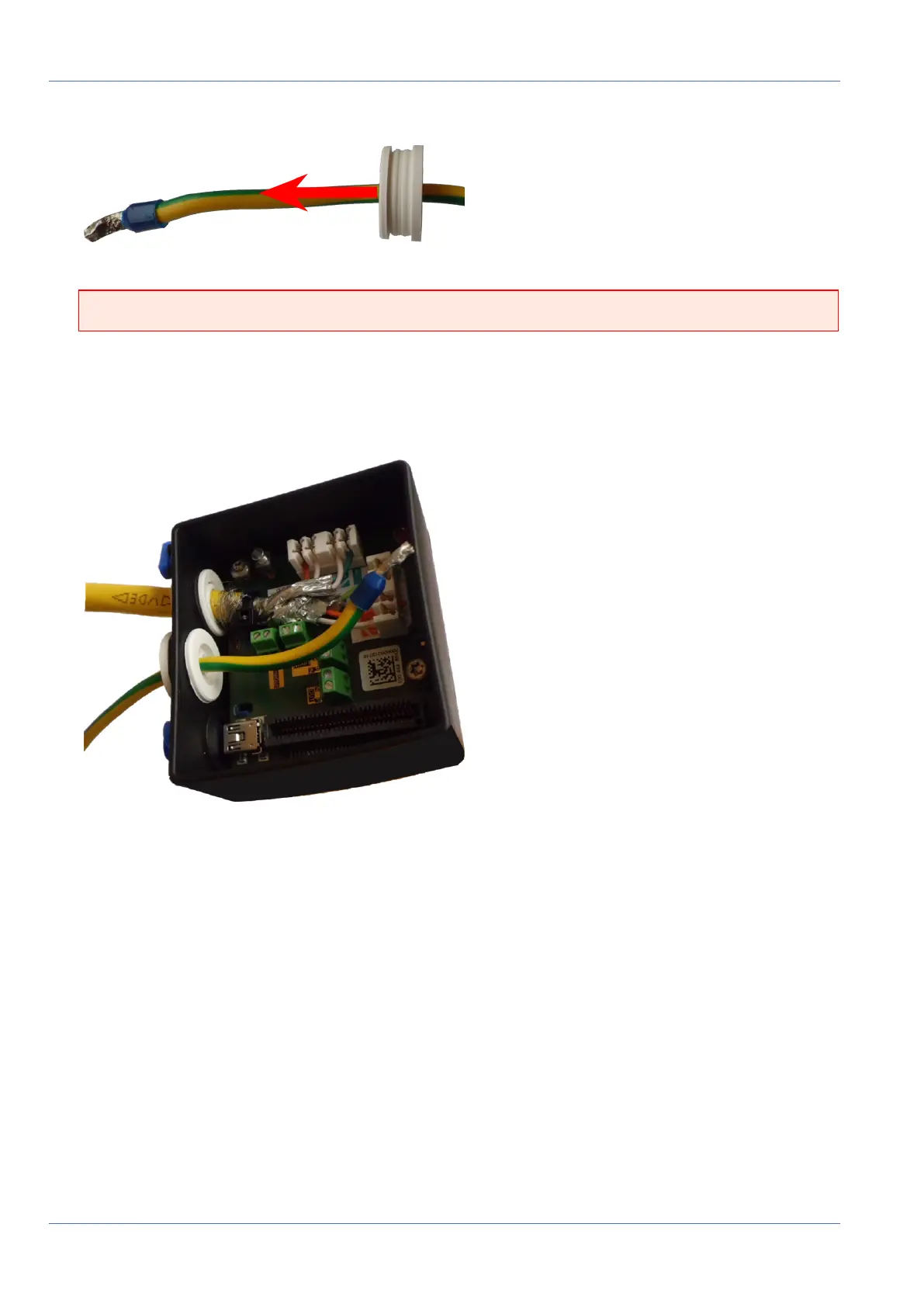

Fig. 60: Ground wire with single-wire rubber plug C.4
WARNING! For surge protection it is strongly recommended to attach the ground wire!
The maximum length of the grounding cable should be 1m to the ground potential (e. g. a potential equal-
ization rail, a grounded pole or a grounding rod).
7. Insert the ground wire into the connector box and make sure the rubber plug is properly seated all
around the opening:
Fig. 61: Ground wire inserted, plug properly seated
77 / 110
