8. Loosen the screw of the ground wire terminal, insert the ground wire and properly fasten the screw of the
terminal:

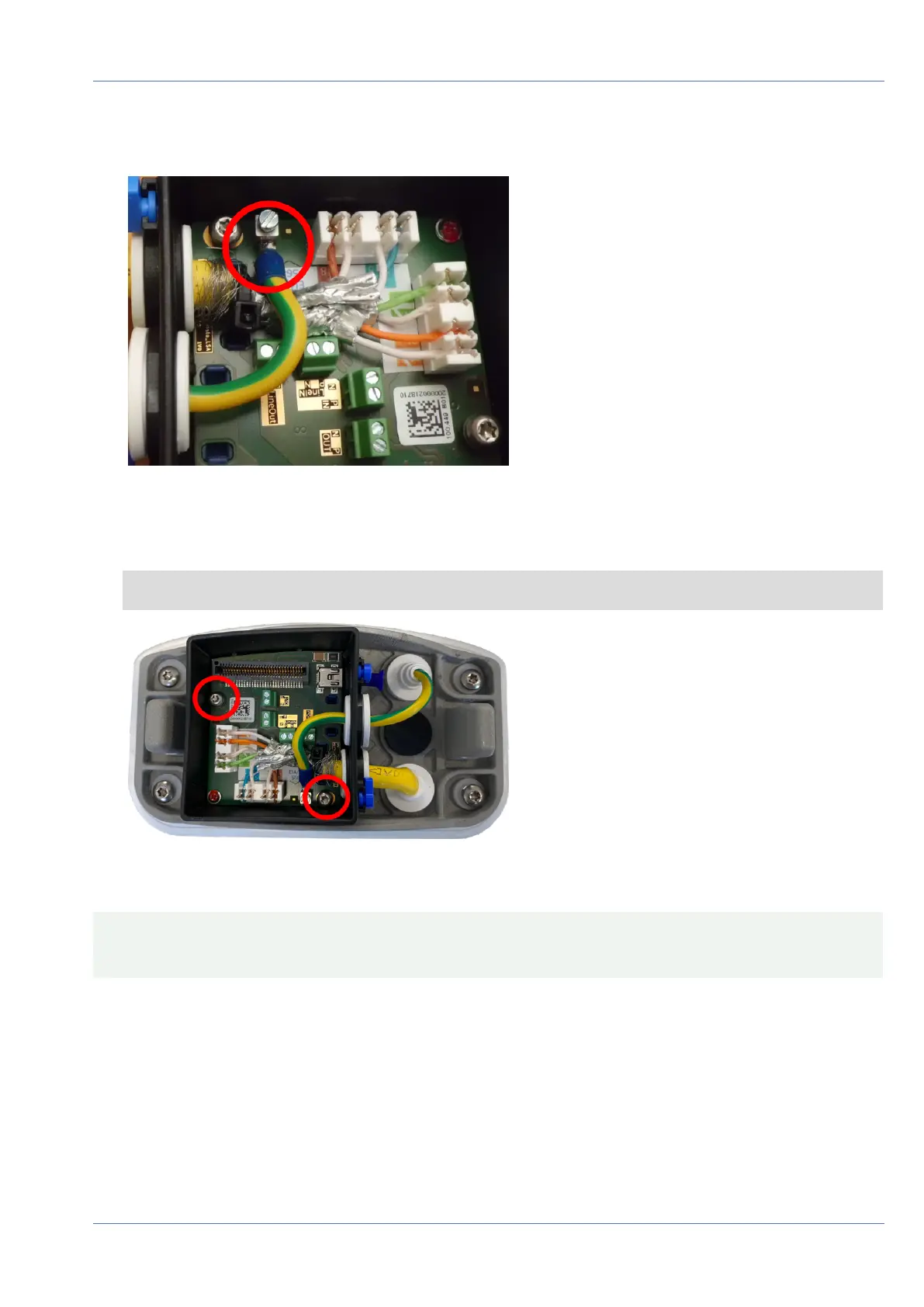

Fig. 62: Ground wire connected to terminal
9. Using the TORX wrench TX10 M.9 and the two pre-mounted screws (highlighted red in the figure), fixate
the connector box on the mounting plate:
NOTE! These are self-tapping screws. Make sure to properly tighten but do not over tighten them.
Fig. 63: Mount the Connector Box LSA (top view) using the two screws (highlighted red in the figure) on the mounting
plate
CAUTION! Make sure that the connector box is properly fastened on the mounting plate as shown above.
Failing to do so could damage the mainboard of the camera!
Continue with Finishing the Installation of the Camera, p. 82.
Mounting
Connecting the camera
78 / 110
