Mounting the Camera with the On-Wall Set
Caution
When using the On-Wall Set outdoors, ensure that the screw holes on the rear of the
camera housing are sealed with the foam rubber washers included in delivery (IP65).

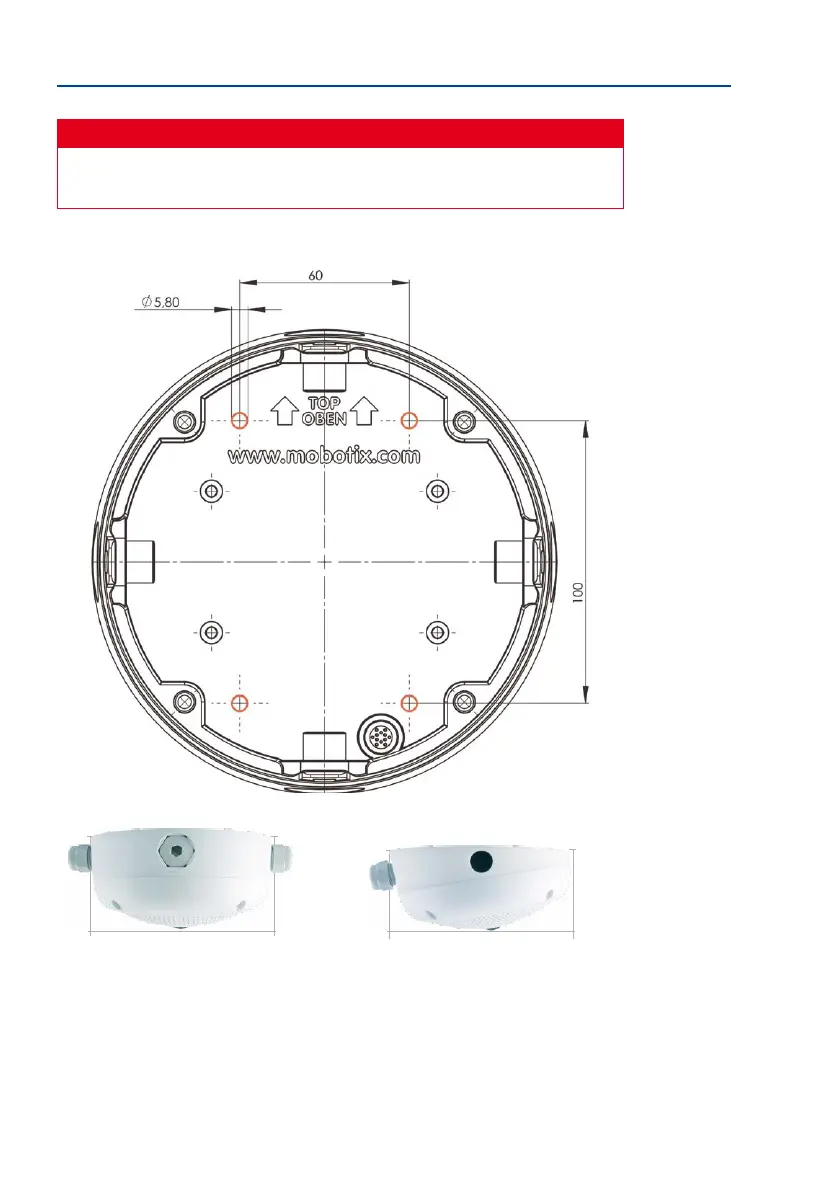

Drilling Template On-Wall Set
ø 166 mm/6.54 in
74
mm/2.91 in
ø 160 mm/6.3 in
85 mm/3.35 in
