Q26 Camera Manual: Installation
Drilling Template In-Ceiling Set
Notes
Use the drilling template available for downloading from www.mobotix.com.
Make sure that the drilling template is not scaled or adjusted to the paper size when
printing the PDF le (enlarged or reduced).

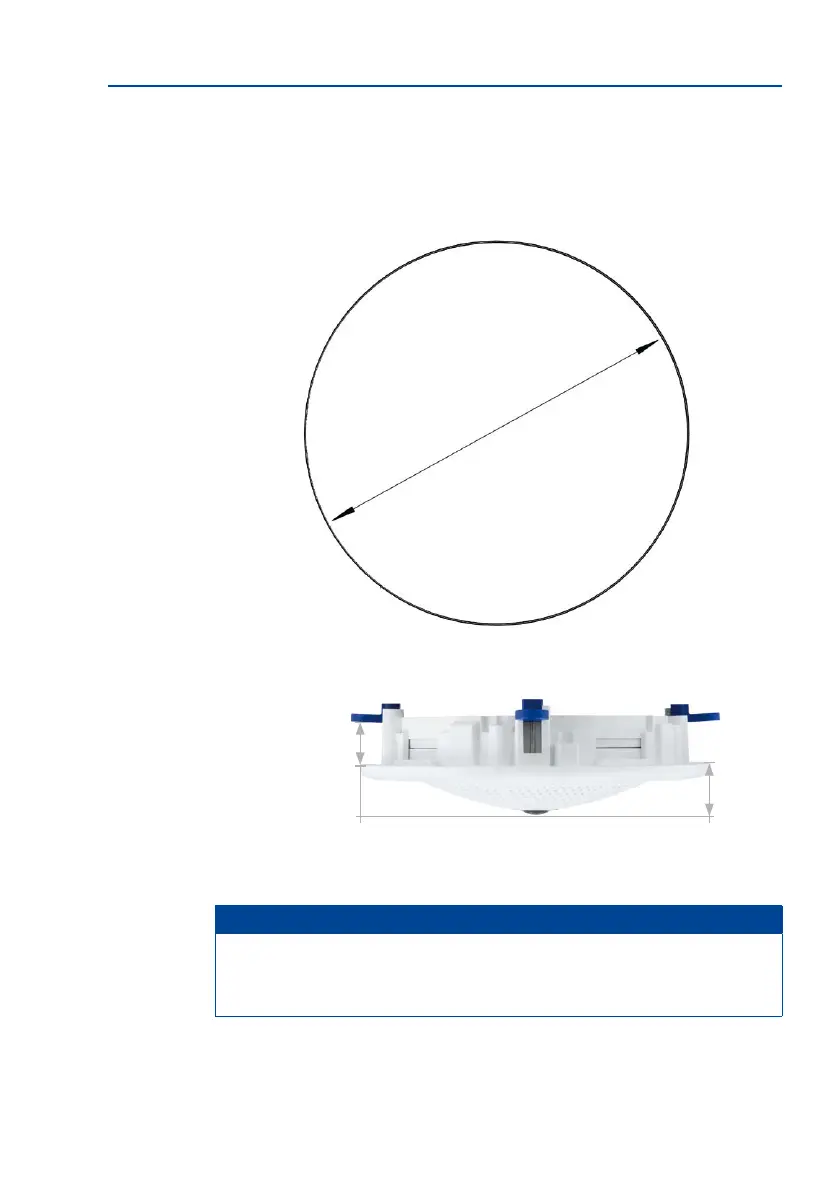

ø 150 mm/5.9 in
ø 180 mm/7.09 in
24.1 mm/
0.95 in
Clamping range
6 to 22 mm/
0.24 to 0.86 in
The In-Ceiling Set can be
used in panels ranging
from 6 to 22 mm/0.24
to 0.86 in thickness
To Next Page
