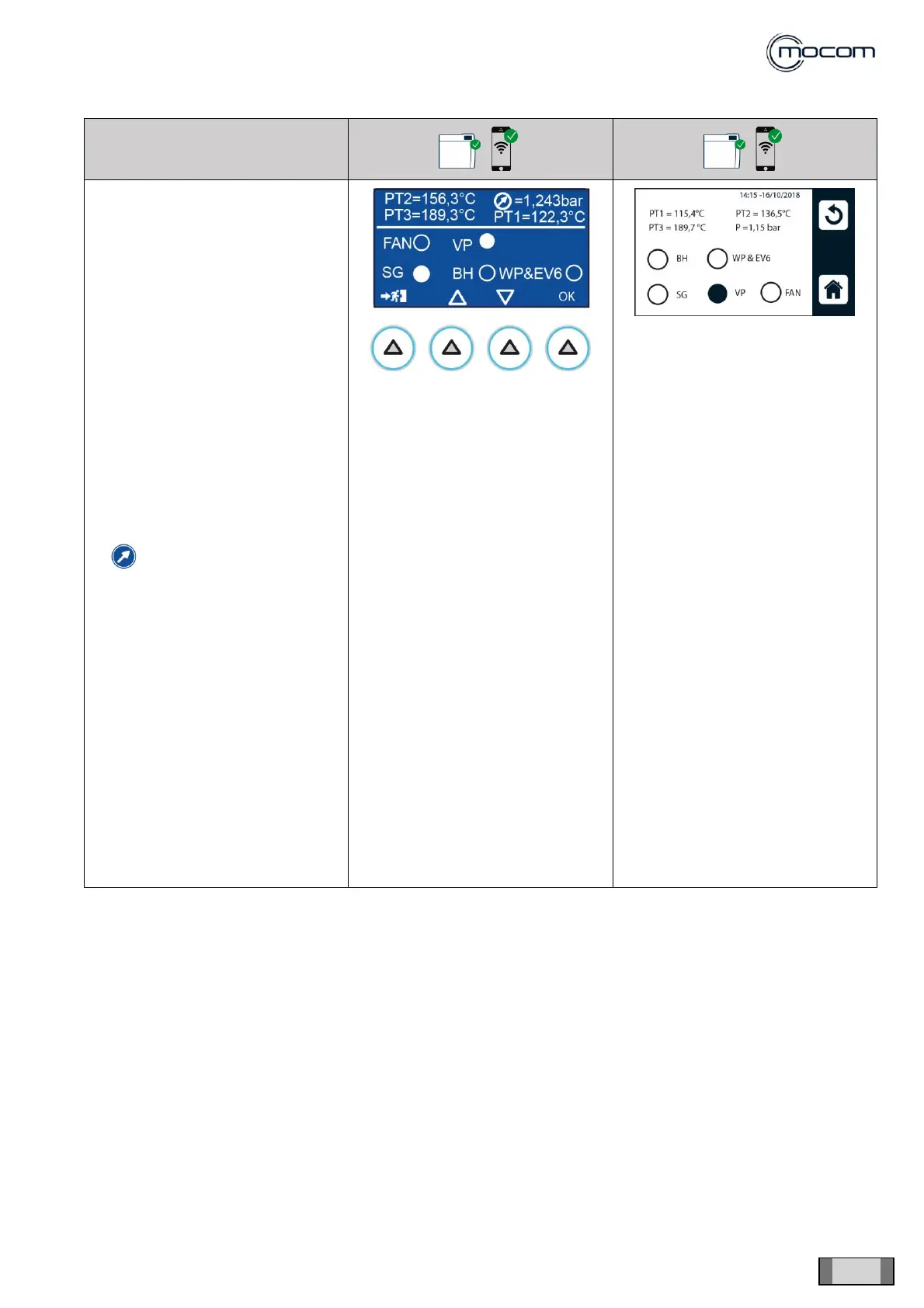

Select the OTHER COMPONENTS
menu to display the following
components:
- BH – chamber tube bundle
heating element
- SG – generator heating element
- VP – vacuum pump
- WP & EV6 – water injection
pump, solenoid valve EV6
- FAN – it indicates the On/Off
status of heat exchanger fans.
The following values are also
displayed:
- PT1 – chamber temperature
- PT2 – steam generator
temperature
- PT3 – chamber tube bundle
heating element temperature
- “P”- chamber pressure
The status of each component that
can be activated/deactivated is
detected.
The BH-tube bundle heating
element activation is indicated by
the increase in the PT3-tube bundle
heating element value.
The SG-generator heating element
activation is indicated by the
increase in the PT2-steam
generator temperature value.
A safety timeout is provided for the
BH and SG functions, so that the
relevant component is turned off
after 120”.
