SERVICE MENU
EN

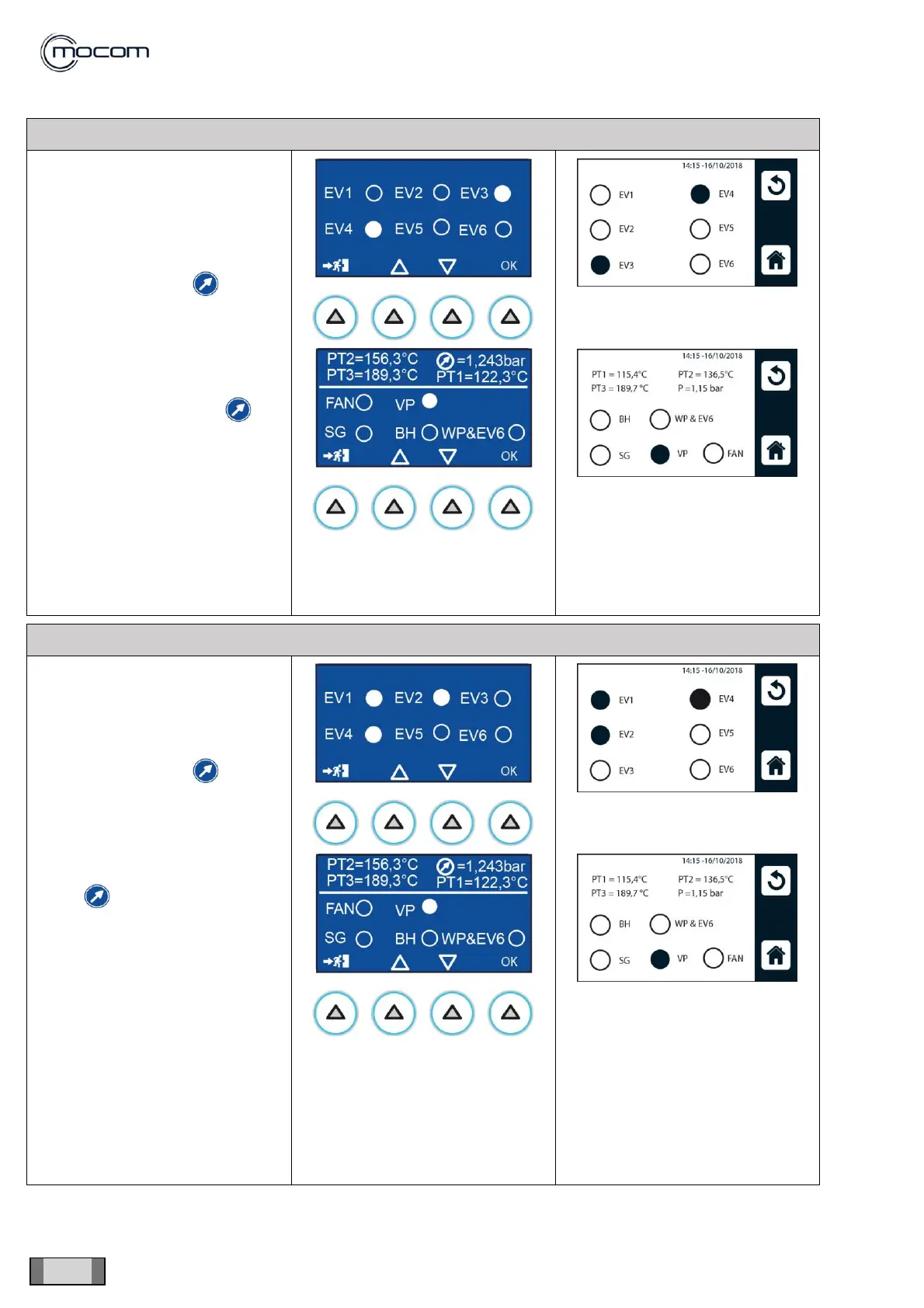

SQ13 – CHECK FOR EV3 OPENING
- close the door
- from SOLENOID VALVES menu:
- close EV1
- open EV3 and EV4
- go to the OTHER
COMPONENTS menu:
- note the reading “P” of
chamber pressure
- activate VP – vacuum pump
If EV3 is open (powered on),
chamber pressure value “P”
will decrease.
With the door open, EV3 opening
can be confirmed by checking the
effect of suction from the chamber
filter coupling.
- de-activate the components after
completing the test
SQ14 – CHECK FOR EV2 OPENING
- close the door
- from SOLENOID VALVES menu:
- open EV1, EV2 and EV4
- go to the OTHER
COMPONENTS menu:
- note the reading “P” of
chamber pressure
- activate VP – vacuum pump
With EV2 open, chamber pressure
value “P” will decrease and
stabilize at around 0.035/0.040 bar,
and will not drop further.
test example:
- chamber pressure reading 0.000
bar
- activate VP – vacuum pump
- chamber pressure reading of –
0.038 bar confirms that EV2
opened correctly
- de-activate the components after
completing the test
