FlexStation 3 Benchtop Multi-Mode Microplate Reader User Guide
122 0112-0127 B
On the left side of the rear panel, viewed from the back, is the
power switch, fuse box, and power cord receptacle.

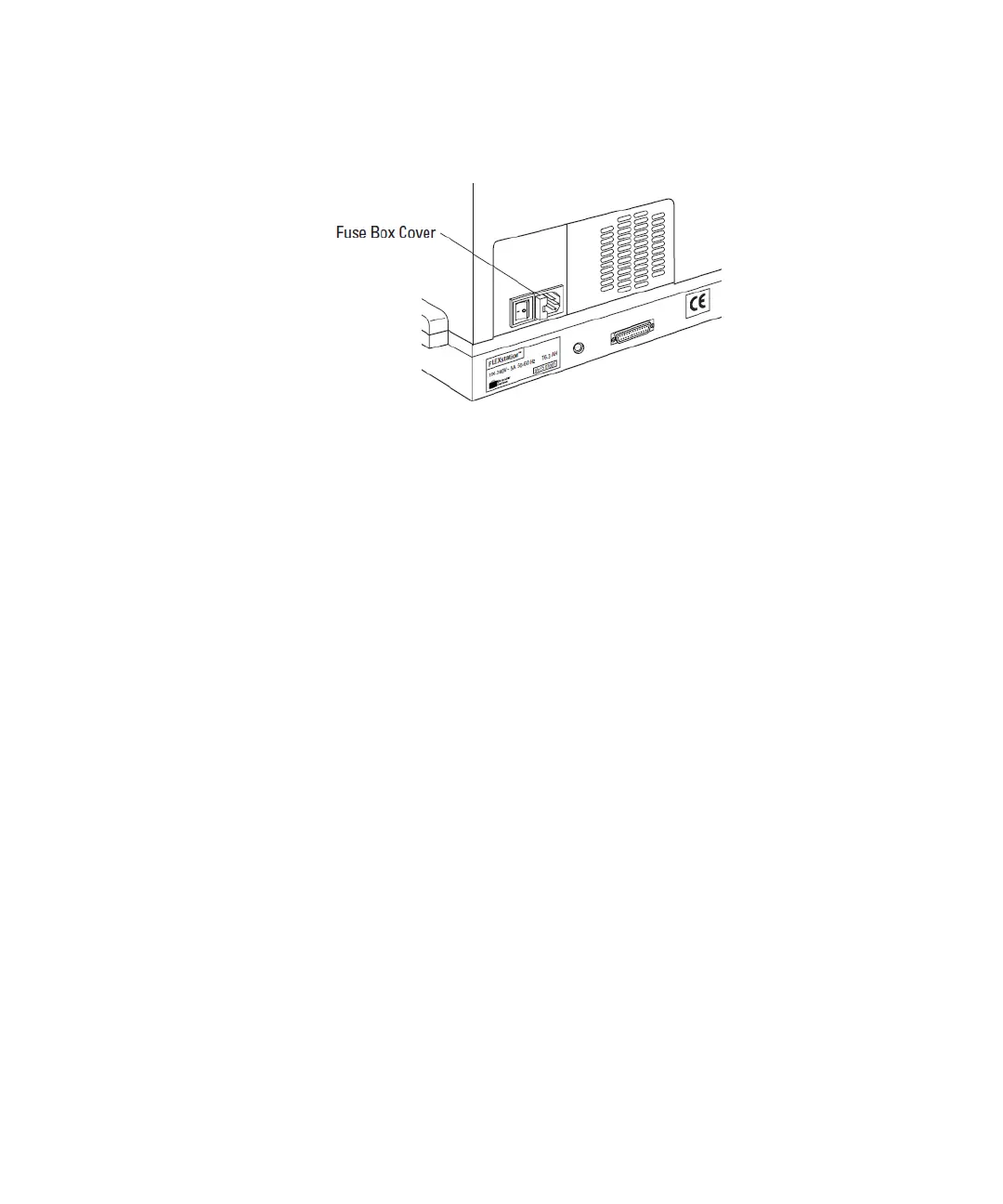

Figure 4-5: Fuse Box Location
4. Press to the right of the black plastic cover of the fuse box to
release it.
5. Pull the fuse box cover away from the instrument. The fuse box
begins to slide forward.
6. Continue gently pulling the fuse box forward until it is free of the
instrument.
After the fuse holder is out of the instrument, you can see that it
contains two fuses. It is possible that only one of the fuses has
blown. Molecular Devices recommends that you replace both
fuses, however, to ensure continued proper operation.
7. Pull both fuses out of the holder and discard them.
8. Insert new slow-blow rated fuses into the fuse holder. Either end
of the fuse can be forward.
9. Insert the fuse box into the opening in the instrument, making
sure that the fuses are on the right side toward the power
receptacle.
10. Press the fuse box into place, making sure the cover snaps
closed.
11. Plug the power cord into the instrument and then into the wall
outlet.
12. Reconnect other cables previously disconnected.
FlexStation_manual.book Page 122 Tuesday, June 25, 2013 10:22 AM
