Installation
0112-0127 B 53
Installing the Fluidics Module
After removing the shipping screws and opening the top cover, you can
see the location for the fluidics module hardware. There is a hinged
flange (metal plate) to the left side of the exposed reading chamber.
There are also two quarter-turn fasteners (Zeus screws) attached to the
flange, and two locating pins near the middle of the reading chamber.

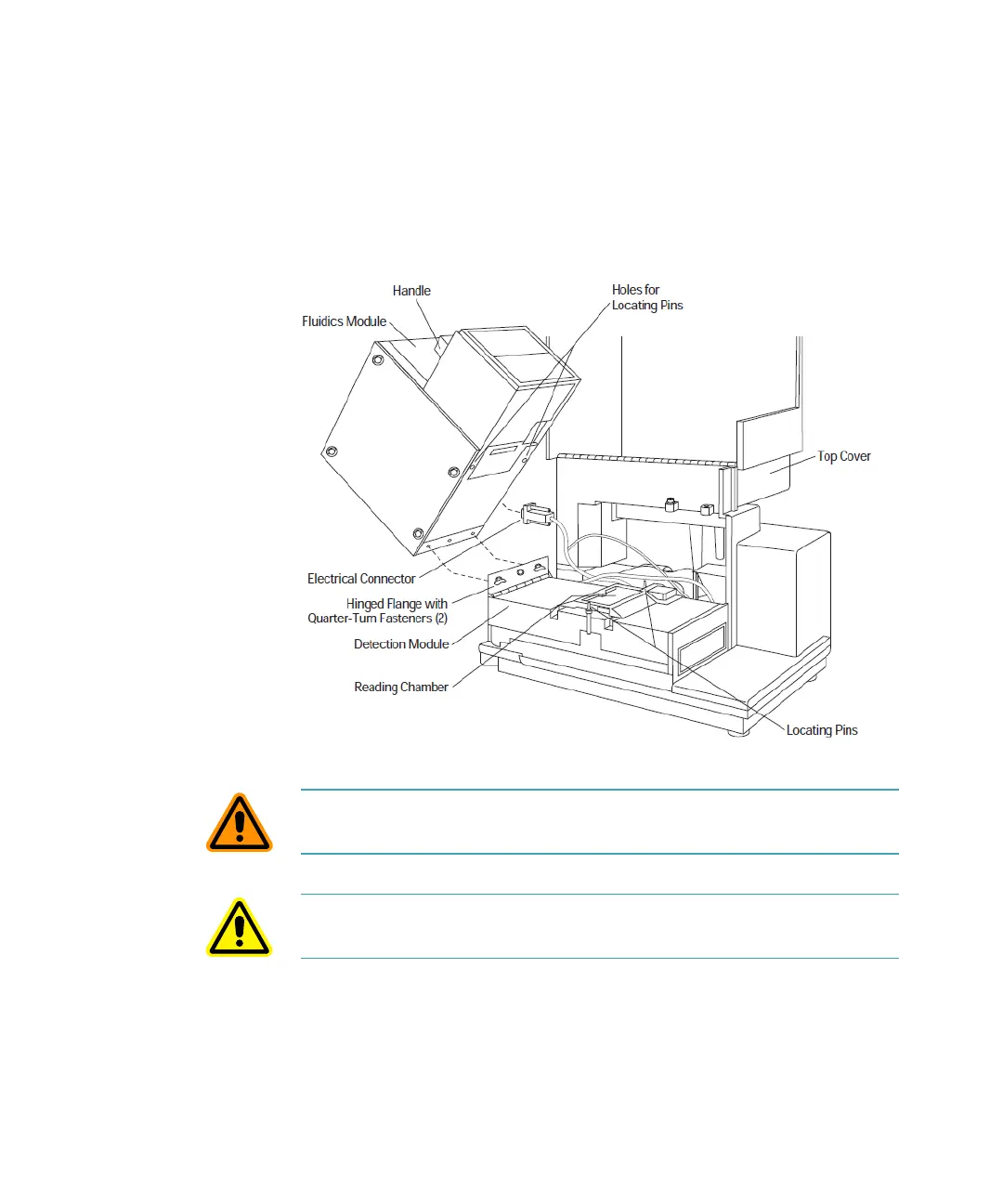

Figure 2-2: Positioning the Fluidics Module
CAUTION! To avoid damage to the instrument, follow these instructions
and any instruction labels on the instrument exactly.
WARNING! Do not remove cover until power is disconnected. Do not
operate instrument unless all covers are in place.
FlexStation_manual.book Page 53 Tuesday, June 25, 2013 10:22 AM
