Molecular Devices FlexStation 3 - Pipette Tip Air Gap

Operating Procedures
0112-0127 B 97
Pipette Tip Air Gap
The pipette air gap is the volume between the end of the pipette tip and
the bottom of the liquid in the tip.

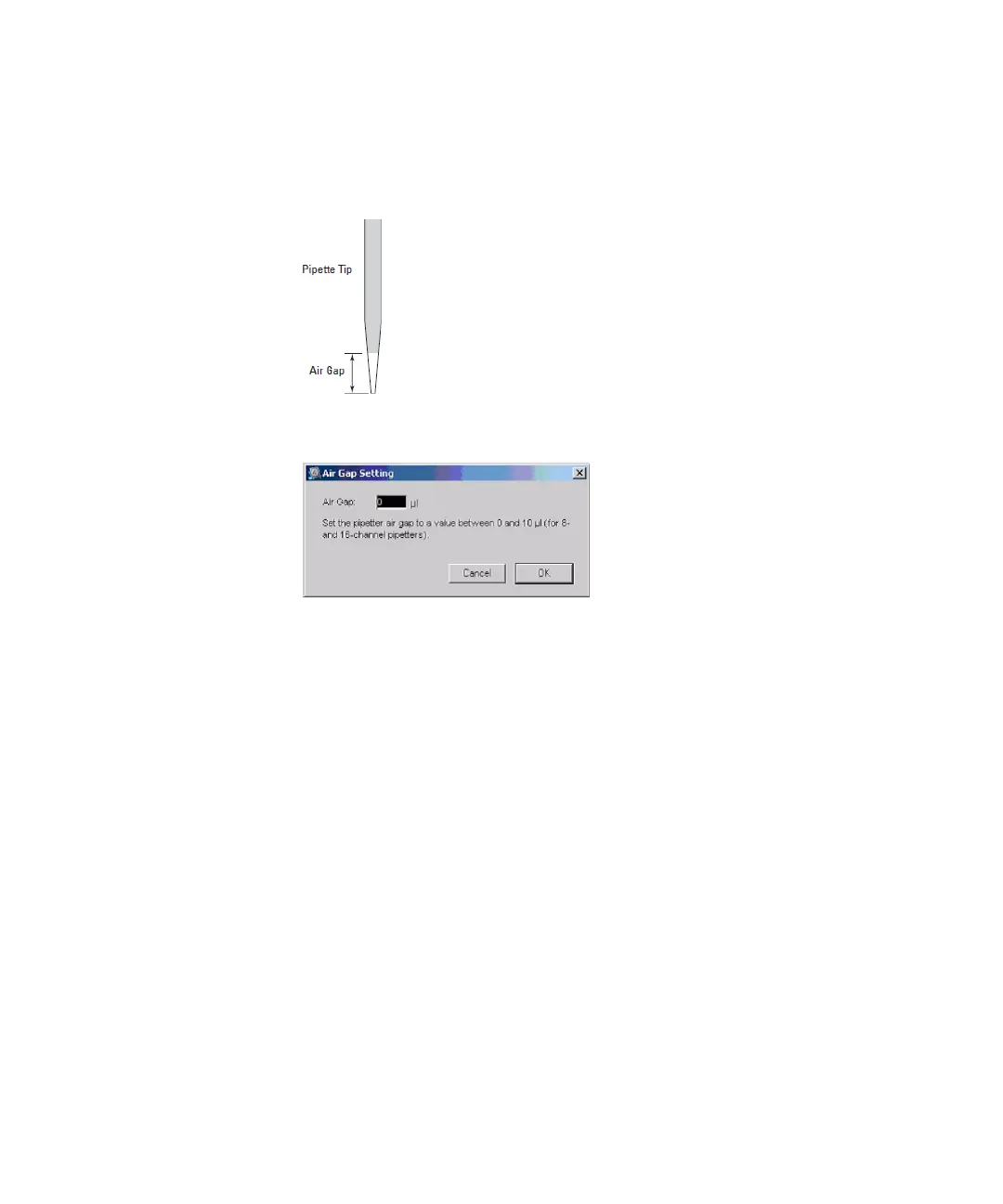

Figure 3-29: Pipette Tip Air Gap
To set the pipette tip air gap, click Control > Set Air Gap.
Figure 3-30: Setting Pipette Tip Air Gap
In the Air Gap Settings dialog, the allowed values ares 0 μL to 200 μL for
96-well microplates and 0 μL to 30 μL for 384-well microplates.
