FlexStation 3 Benchtop Multi-Mode Microplate Reader User Guide
98 0112-0127 B
Settings Displayed in Plate Sections
The Plate section provides visual feedback on all instrument settings in
the Instrument Settings section, the gray area to the far right of the Plate
section. Information about wells to read and transfer settings are also
displayed in the Data Display section.
For example, the following figure shows a Plate section with three fluid
transfers. The blue squares in their upper-left corners represent the first
transfer, the red squares in the upper-right corners represent the second
transfer, and the green squares in the lower-left corners represent the
third transfer.

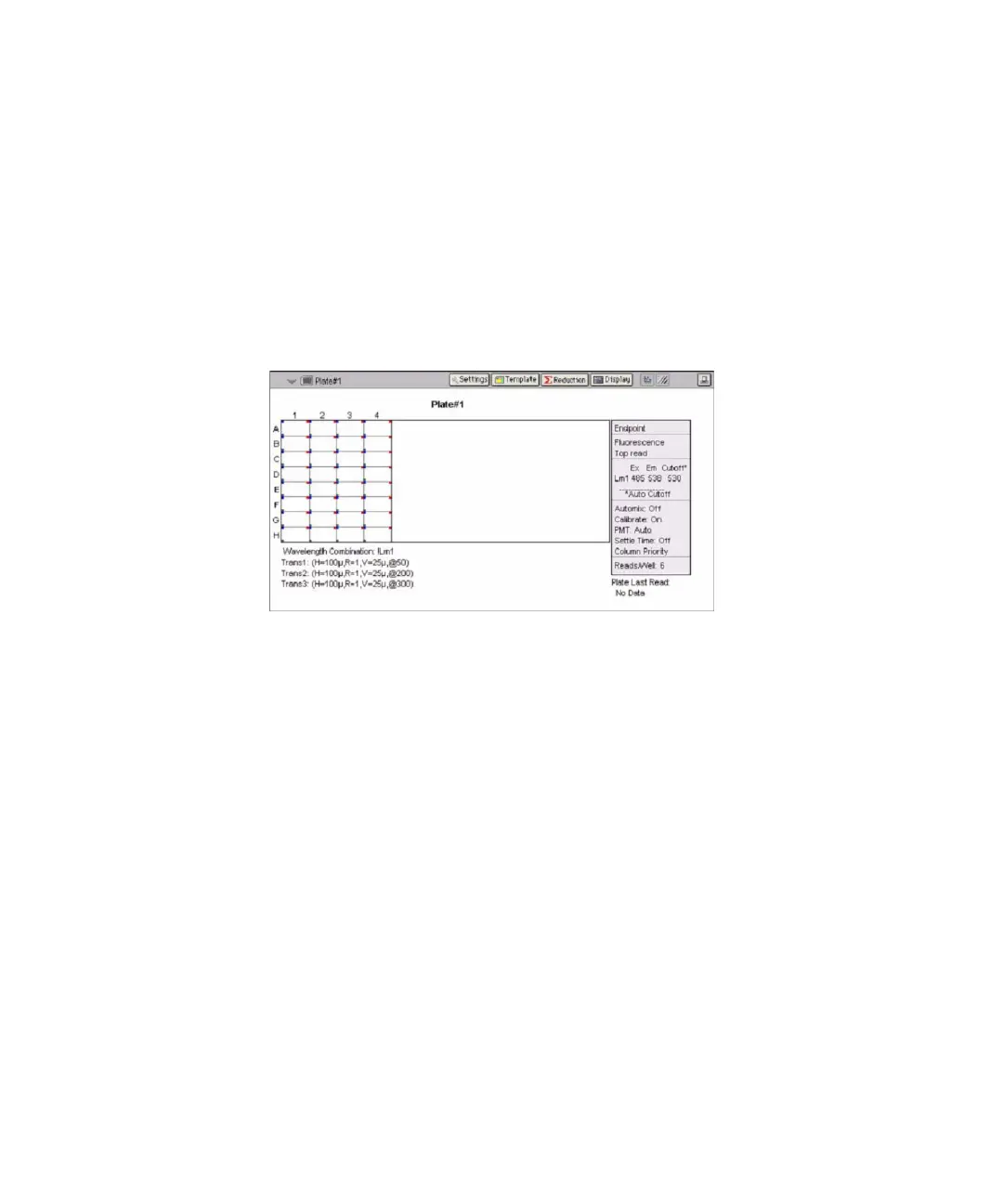

Figure 3-31: Plate Section with Wells Selected for Injection
The Plate section also provides information on the transfer settings and
the compound sources. The information is displayed below the plate
table.
FlexStation_manual.book Page 98 Tuesday, June 25, 2013 10:22 AM
