Description
0112-0127 B 21
Drawers
The instrument has three drawers that open on the right side. The two
drawers in the fluidics module open and close to move the pipette tip
rack and compound plates (or reservoirs) into and out of the instrument.
The reading chamber drawer in the detection module transports the
assay microplate into the reading chamber.

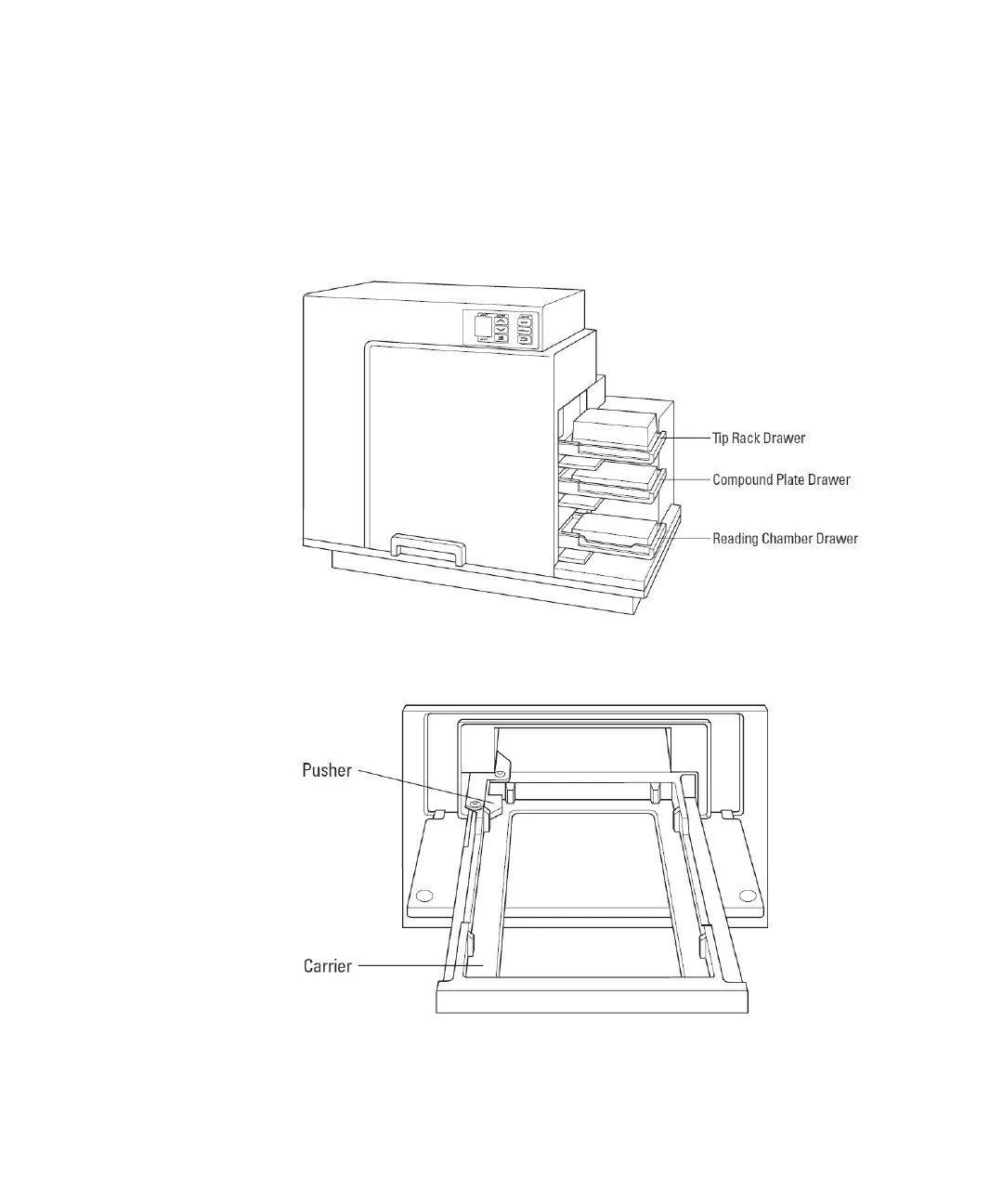

Figure 1-9: Instrument with Drawers Open and Carriages Accessible
Small plastic pushers, in the front left corner of each drawer, hold the
plates, racks, or reservoirs securely in place when the drawers are closed.
Figure 1-10: Drawer Detail
FlexStation_manual.book Page 21 Tuesday, June 25, 2013 10:22 AM
