Mechanical installation
MSD Single-Axis System Operation Manual AC-AC Servo Drive
ID no.: CA65642-001 06/2018
moog
3.5 Cooling circuit connection
The MSDServoDrive has a capacity of up to 0.5l of coolant depending on the size.
After the disconnection of the connections, liquid may be left in the device and escape
if the device is tipped. We recommend the usage of a self-sealing liquid coupling (not
included in the scope of supply) to prevent the coolant escaping and to make it possible
to disconnect and connect in the lled state.
1
2
3
4
5
Key
1) Liquid connection with 3/8inch female thread
2) Self-sealing quick-release connection with 3/8inch male thread
3) Self-sealing liquid coupling
4) Adapter for hose connection
5) PUR (polyurethane) hose with clip
NOTE:
Items2 to 5 are not included in the scope of supply.
You will nd these in the cooling circuit connection set
(CB37132-001). Please order seperately.

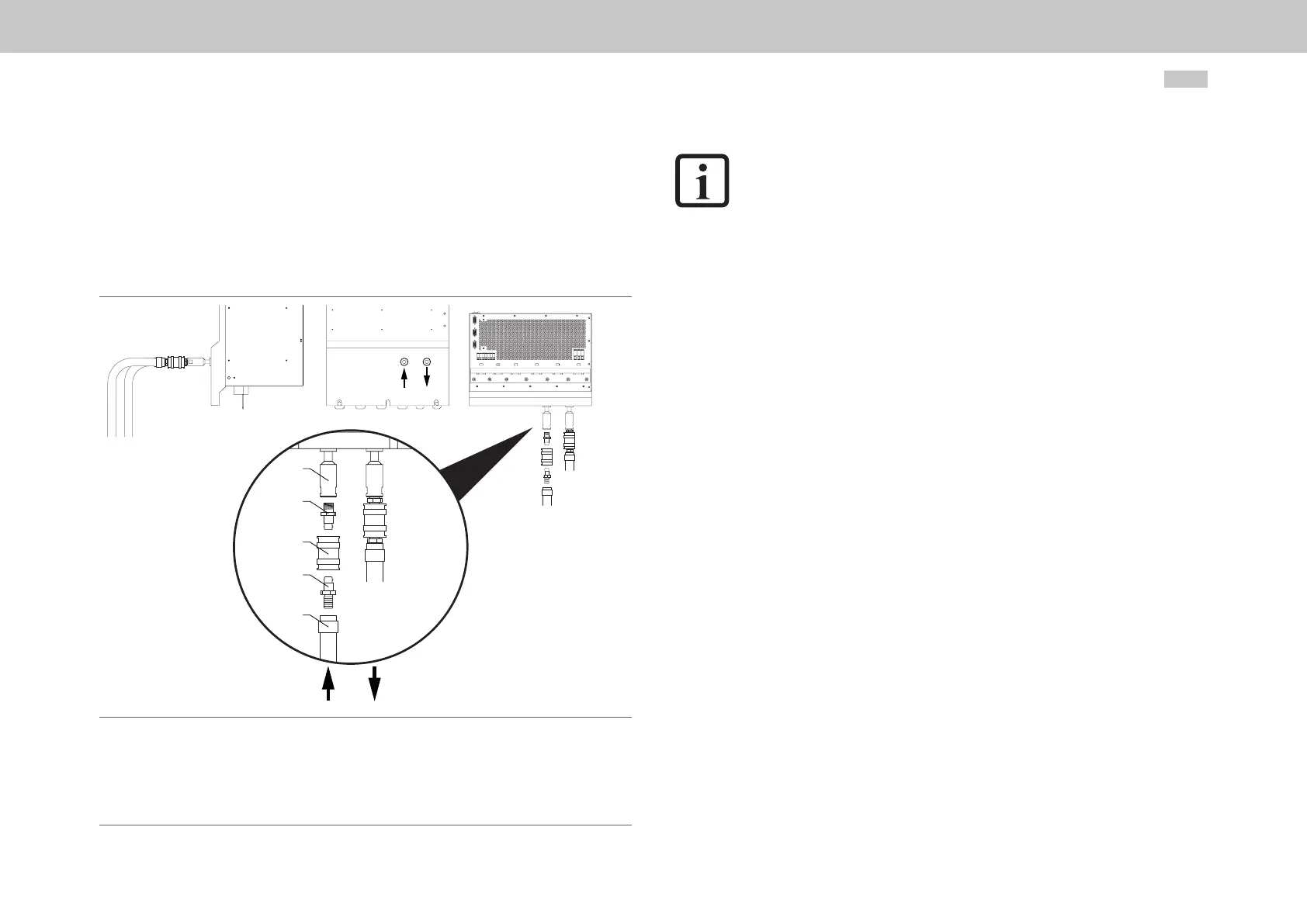

Figure 3.6 Cooling circuit connection (here: Size 7)
NOTE:
It is imperative the ow from the liquid cooling is connected to the connection
correspondingly marked in Figure3.4, Figure3.5 or Figure3.6.
