56
Commissioning
MSD Single-Axis System Operation Manual AC-AC Servo Drive
ID no.: CA65642-001 06/2018
moog
NOTES:
y During the ashing phase the save procedure can still be aborted by
pressing any button, without applying the value set. Otherwise the new
value will be saved after ve seconds.
y A modied IP address will not be applied without restarting the control
electronics.
5.4.5 Field bus address menu (Fb)
The functions available on this menu item depend on the device's communication
option. For detailed information refer to the relevant specication.
Menu level
Parameter
Value
range
Meaning Explanation
1 2
Fb
Ad - 00..xx
or
- -
Field bus address Setting for eld bus address
(only if eld bus option used), otherwise
indication "- -"
(The maximum value that can be programmed
depends on the option)
Po - 0..3
or
- -
Transmit power Setting for bre-optic power output
(only with SERCOS II option),
otherwise indication "- -"
Table 5.8 Field bus address menu

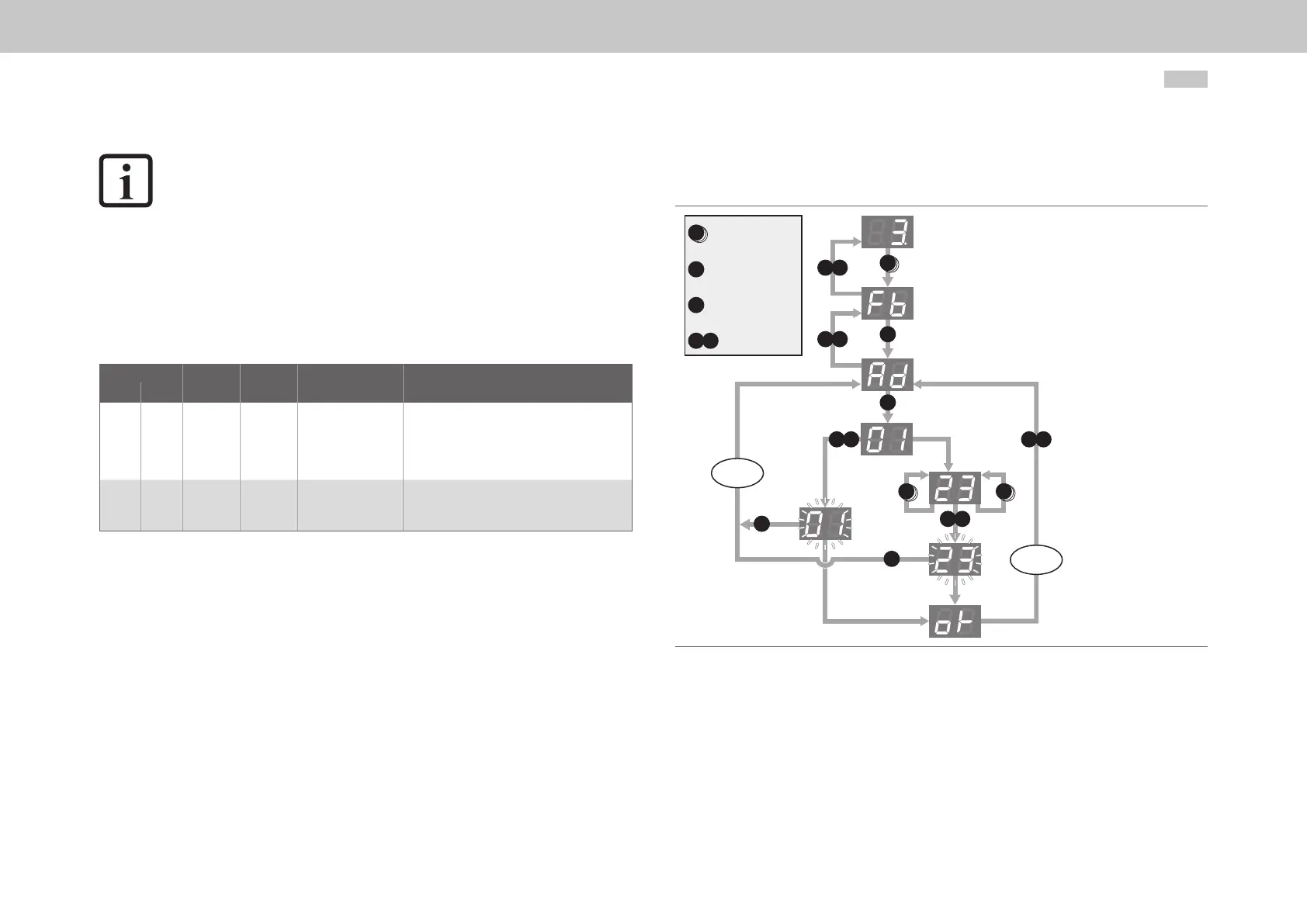

Example conguration of the eld bus address
In this example the eld bus address is changed from 1 to 23.
Tx
Tx
back
back
T2
T2
T1 T2
T1 T2
T1 T2
back
accept
>5 s>5 s
<5 s
<5 s
T1 T2
T1 T2
T1 T2
Value NOT
saved
Value
saved
T1
T2
T1
several actuations
of buttonTx (X = 1, 2)
until the desired menu
appears in the display
single actuation
of button Tx (X = 1, 2)
simultaneous actuation
of both buttons T1 and T2
Actuation of
any button
Figure 5.4 Example conguration of the eld bus address
