4.5 Overview of the connections, Size 7
The layout on the left shows the corresponding positions of connectors and terminals.
For improved clarity we have added an abbreviation to the designation for the
connectors and terminals.
X11
X45
D1, D2
T1, T2
X2
SW
HW
X12
W
W
W
W
W
W
W
W
W
5
X44
X8
X7
X6
X3
X4
X5
RB- RB+ PE U V W
L1 L2 L3 PE ZK- ZK+

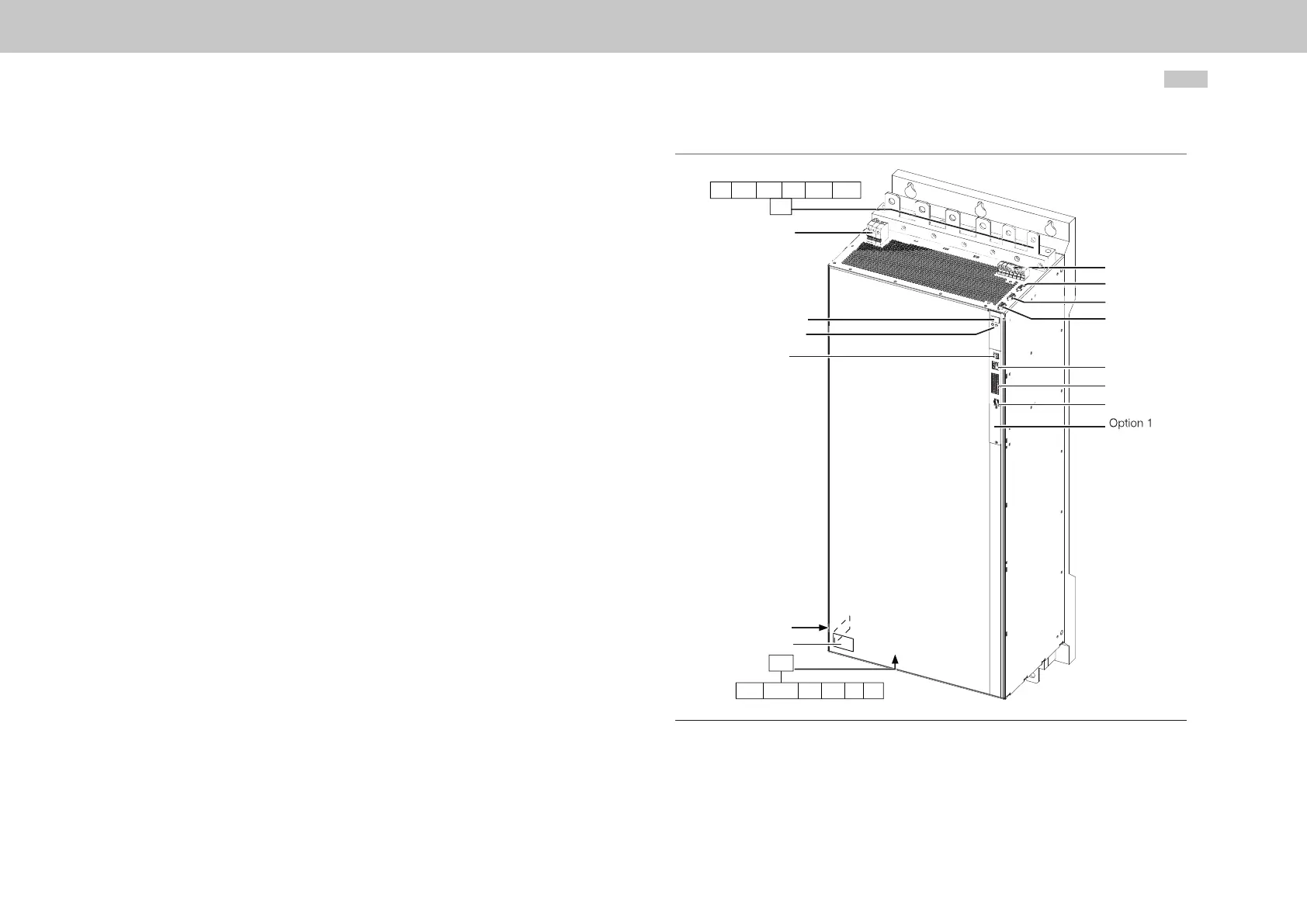

Figure 4.9 Layout, Size 7 (without shield plates and terminal covers on X11 and X12)
