MSD Servo Drive Compact Operation Manual
12
to the glossaryto the table of contents
Id no.: CA97555-001, Rev. 3.0 - Date: 0 6/2012
Dimensions
MSDServoDriveCompact C2 C3 C4
G394-030
G394-020
G394-059
G394-035
G394-080
G394-065
Weight [kg] 1.0 1.5 2.8
B (width) 55
H (height)
1)
210 290
T (depth)
1)
142 189 235.5
A 27.5
A1 - - 40
C 225 305
C1 5
DØ 4.8
E for direct butt mounting (see note)
F
2)
≥100 ≥150
G
2)
≥235 ≥280
H1 235 315
Screws 2 x M4 4 x M4
All dimensions in mm
1) without terminals/connections
2) The bend radius of the connecting cables must be taken into account
Table 2.2 MSDServoDriveCompact dimensions - see Fig.2.1 and Fig.2.2
NOTE: The minimum distance specified in the table for sizes 2-4 applies for
devices of the same power. When butt mounting devices with different drive
power you should arrange the devices according to their power (e.g., viewed
from the left, C4 - C3 - C2). This minimizes the thermal influence among
each other.
When butt mounting MSDServoDriveCompact drivess together with other
devices, you must make sure that these device do not affect one another
thermally.
C
C
C1
A
B
C1
H1
H1
A
B
A1
T
H
D
D
C 2 + C 3
C 2 + C 3 + C 4
C 4

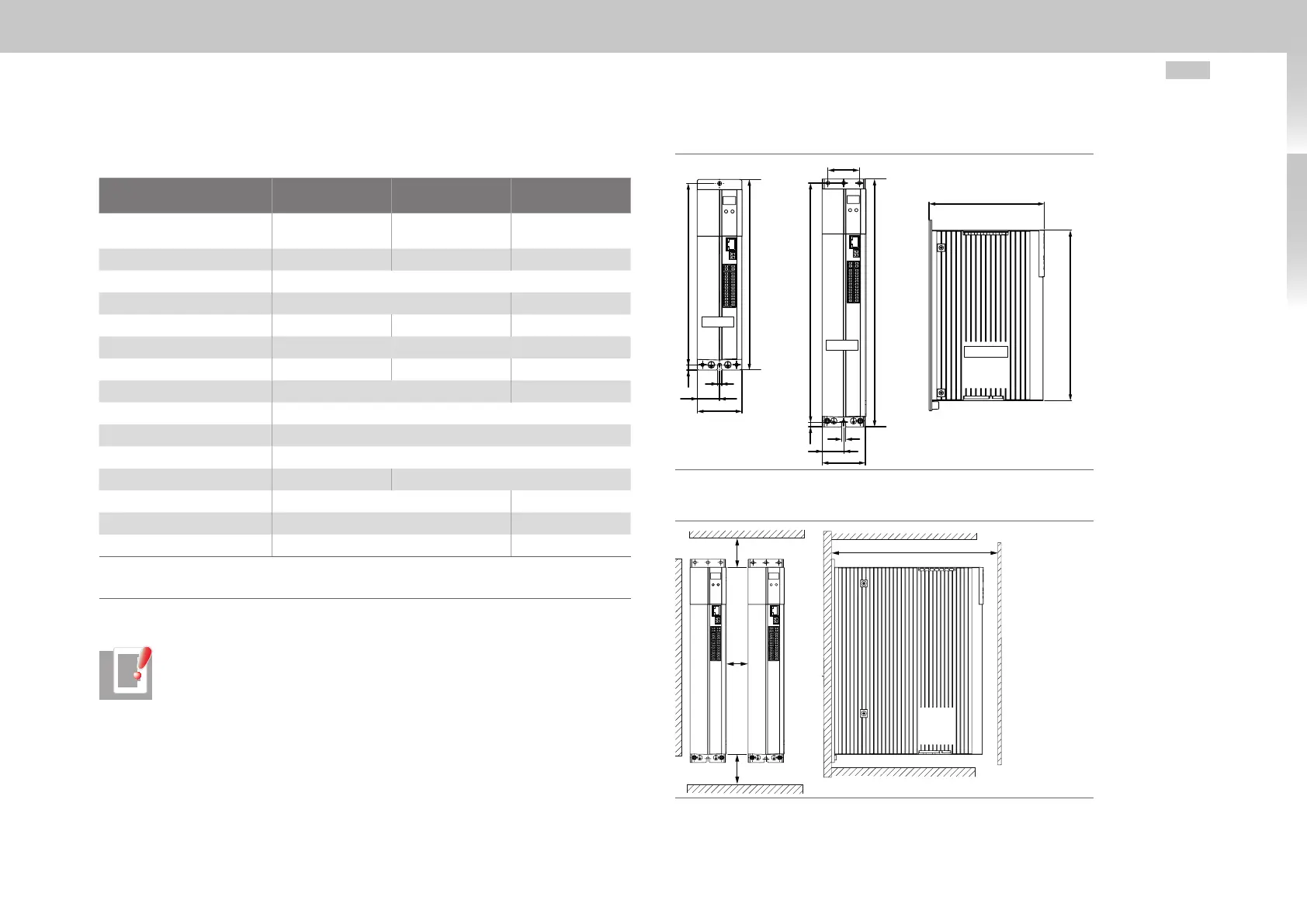

Fig. 2.1 Dimensions (in mm) C2, C3, C4
E
G
F
F
Fig. 2.2 Mounting clearances (in mm)
