3.4 Effective EMC installation
3.4.1 Interference immunity of drives
ATTENTION! This is a restricted availability product in accordance with
IEC 61800-3. This product may cause radio interference in domestic
environments; in such cases the operator may need to take appropriate
countermeasures.
External radio frequency interference suppression filters (CB09937-001 to CB09940-001,
CB09942-001) are available for the drives. With the measurement method specified and
the external mains filter, these servo drives conform to the EMC product standard IEC
61800-3 for "First environment" (residential C2) and "Second environment" (industrial
C3).
3.4.2 Specimen setup
The specimen setup presented on the following pages is intended to illustrate the key
measures necessary to ensure EMC-compatible setup.
NOTE: The specimen setup merely presents a recommendation, and does
not automatically guarantee compliance with applicable EMC directives. The
installer/ operator of a machine and/or item of plant must provide proof of
compliance with the protection targets stipulated in the standard.
Overview
Fig.3.3 presents an overview of the minimum components required:
A. Backing plate with cable ducts
B. MSDServoDriveCompact
C. Mains filter
D. Mains choke
E. Distributor rail for AC power supply an control supply (+24VDC)
The layout and cabling are based on the instruction set out in section3.1 "Notes for
installation" on page13. The numbered red arrows refer to four very important detailed
notices presented on the following pages.
!

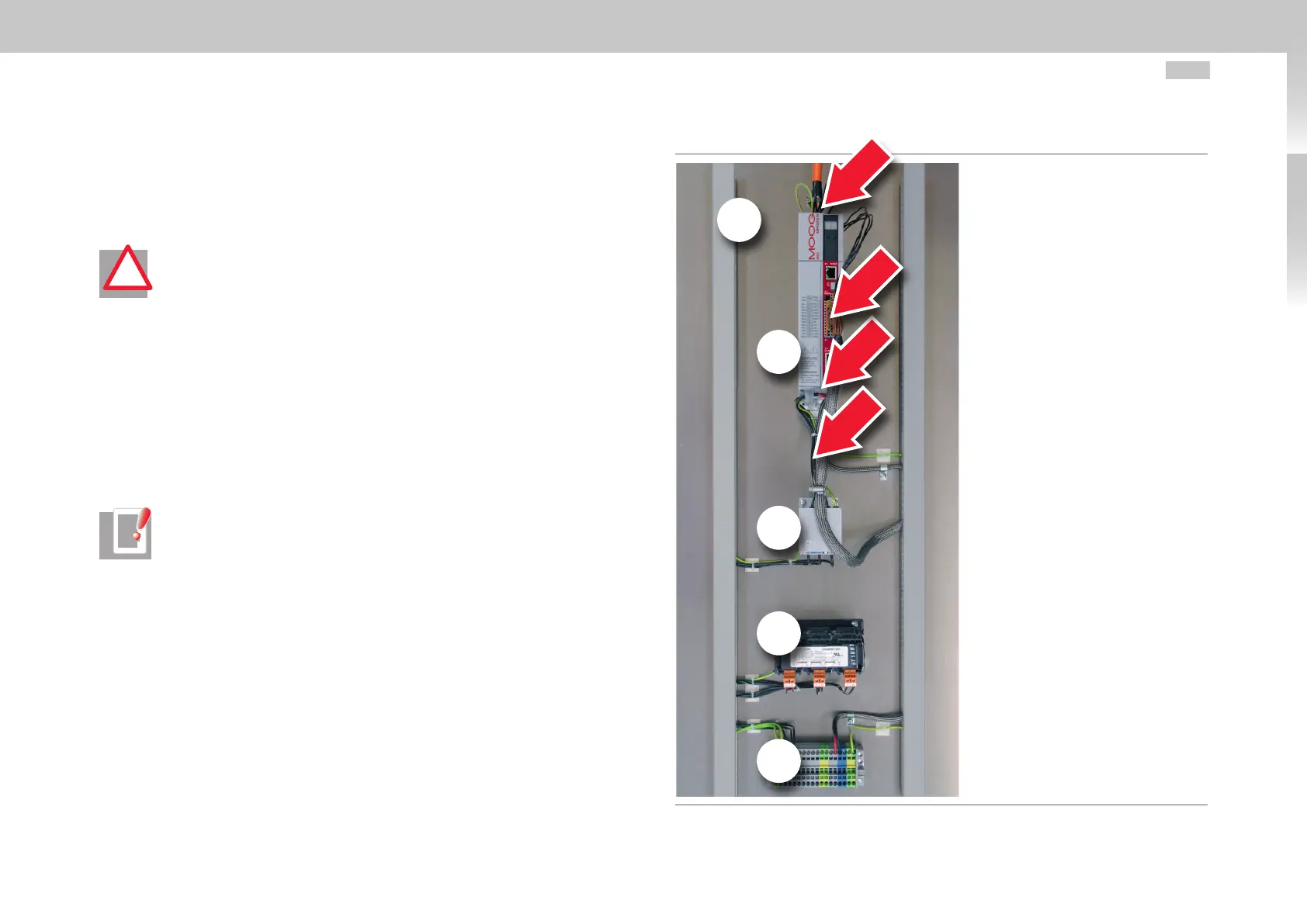

Fig. 3.3 Specimen setup - Overview
2
3
4
1
A
B
D
E
C
