Detail3: Mains filter and mains connection
At the output of the mains filter and the AC mains connection (X3):
• Connect the wire strands at the output of the mains filter directly to the
AC mains (X3) of the MSDServoDriveCompact. The strands must not be
extended, so the mains filter should be installed correspondingly close to the
MSDServoDriveCompact. But be sure to maintain the necessary minimum
clearance (see table2.2 on page12).
• Fix the strands to the shield connection plate using a cable tie as necessary.
• The leakage current of the MSDServoDriveCompact is >3.5mA. So:
− Connect the protective conductor from the output of the mains filter to the
connection (X3) of the MSDServoDriveCompact and
− one of the PE – connections on the heat sink of the MSDServoDriveCompact
via a cable of at least the same cross-section to the main ground of the
distributor rail.

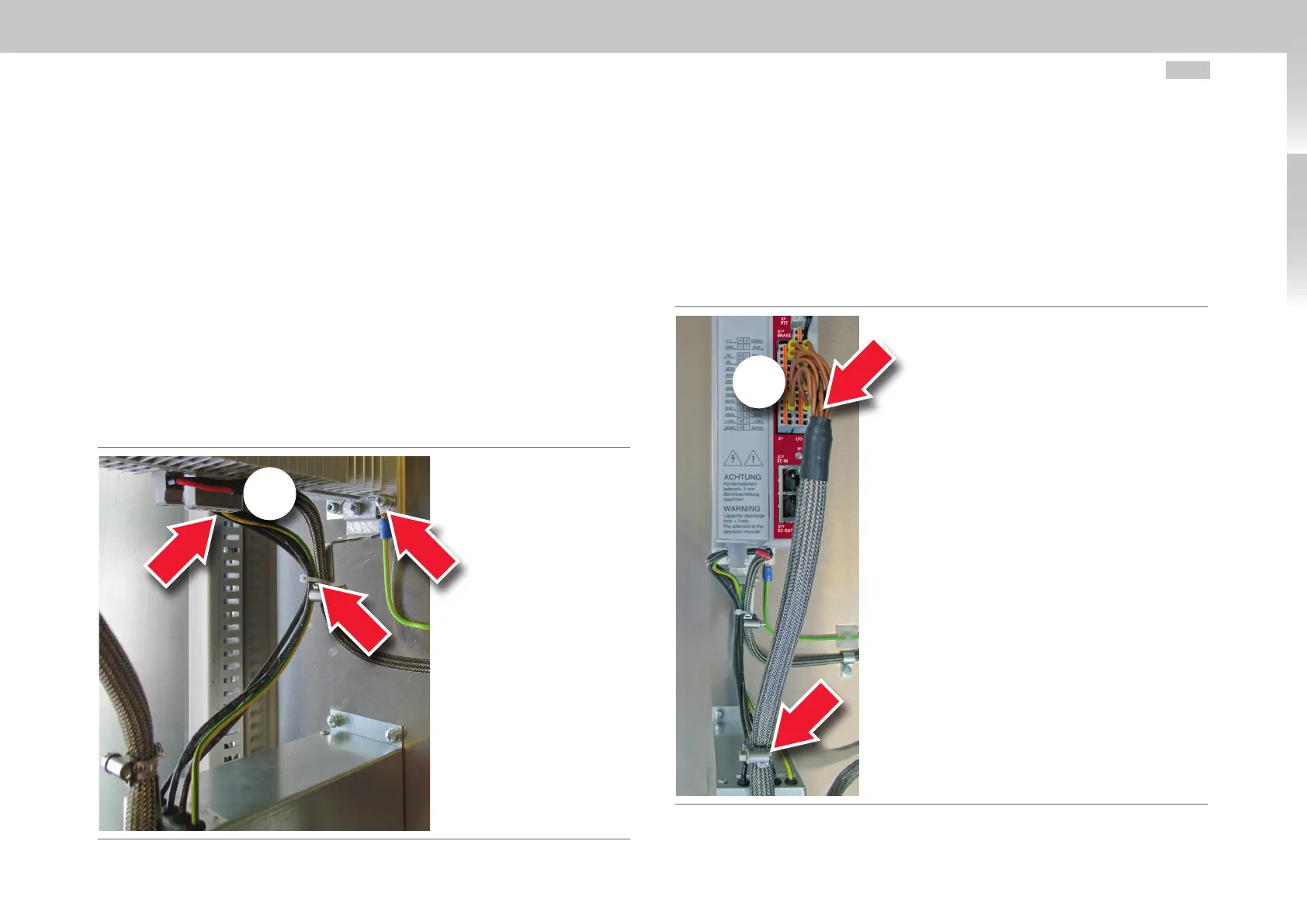

Fig. 3.6 Specimen setup - Detail3: Mains filter and mains connection
X3
Detail4: Control cables
At the control terminals (X4) of the MSDServoDriveCompact:
• Strip the shielding of the control cables back only as short as absolutely necessary.
• Connect the control cable shields across a wide area to the shield connection tab
of the mains filter by the clamp supplied. If this is not possible, lay the control cable
shielding directly across a wide area on the backing plate directly adjacent to the
MSDServoDriveCompact.
Fig. 3.7 Specimen setup - Detail4: Control cables
X4
