“Move To Entered PT & ZF Positions” button. Pressing the “Move to
Home Position” drives the P&T to the position stored in preset 32.
Pressing the “Move to Zero Position” drives the P&T to the 0° pan, tilt
position.
PTZ PRESETS The PTZ Presets window allow the user to enter a
coordinate and store it as a preset, or save the current position as a
preset.
To store a coordinate as a preset, select the preset address (1 32) in
the Preset Number window, then enter the coordinate in the “Pan:” and
“Tilt:” windows. Then press “Save Preset Using Entered Position”. If you
have a Z&F lens connected and you wish to save those attributes, press
the “Apply Current Zoom & Focus” button, and the attributes will be saved
to the preset table.
To store the current position as a preset, select the preset address (1 -
32) then press the “Save Preset Using Current Positions” button. Again
you may add the Z & F attributes if needed.
PAYLOAD PRESETS The Payload Presets send specific
predetermined serial commands to the selected serial payload port.
These are useful for sending specific commands to the payload ports that
may be repeated; an example of this may be to send a “white hot” or
“black hottoggle command to a thermal camera. Special firmware must
be coded to the positioner for these to work and may be developed by
Moog upon request. Please contact Moog sales for availability for your

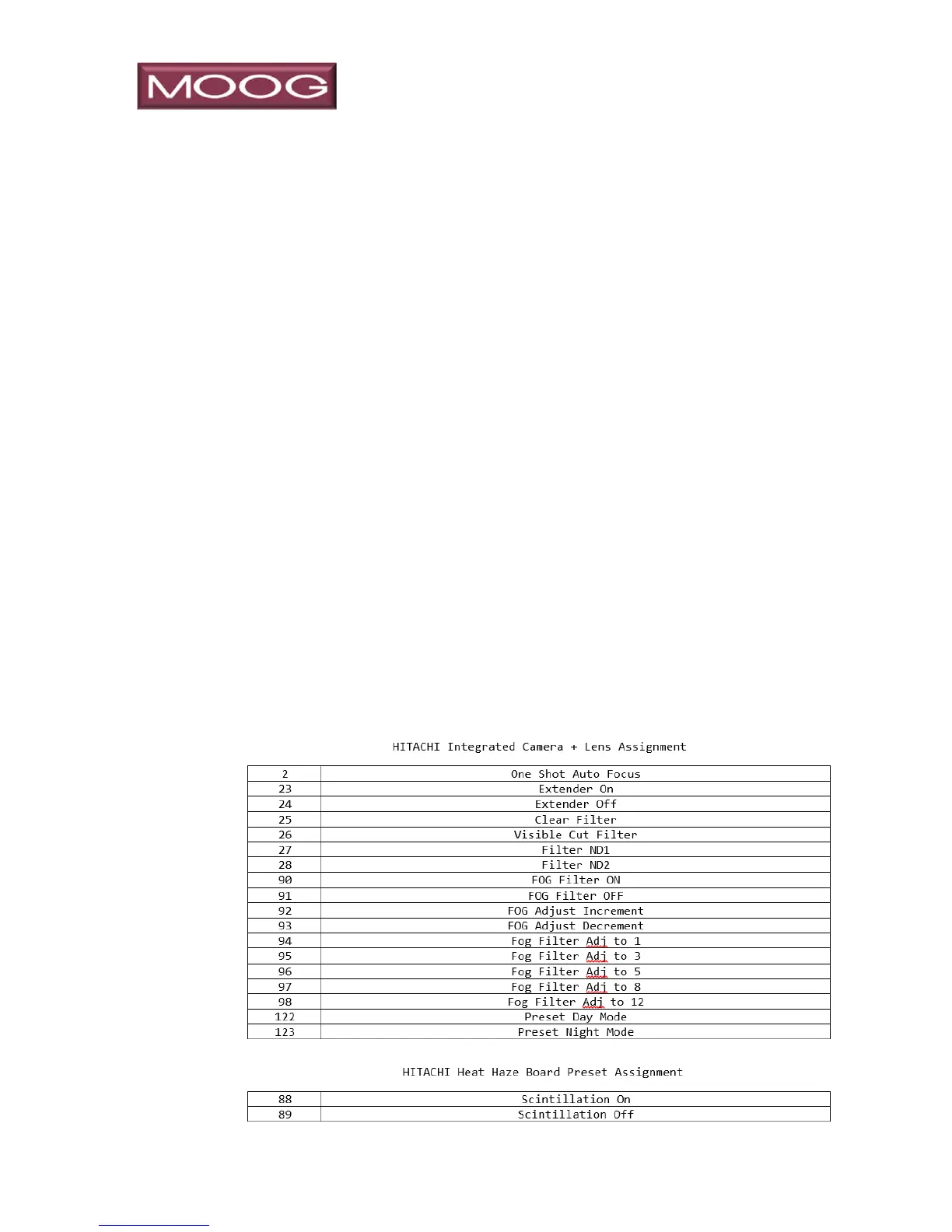

application. Example below is for a specific Hitachi camera system.
