MN0090-05 Page 18 of 68 18008
MPT-90 PRODUCT MANUAL This document contains U.S. export controlled technical data as regulated by the U.S. Export Administration Regulations 15 CFR Parts 730-774, export, disclosure or transfer contrary to U.S. law is prohibited.

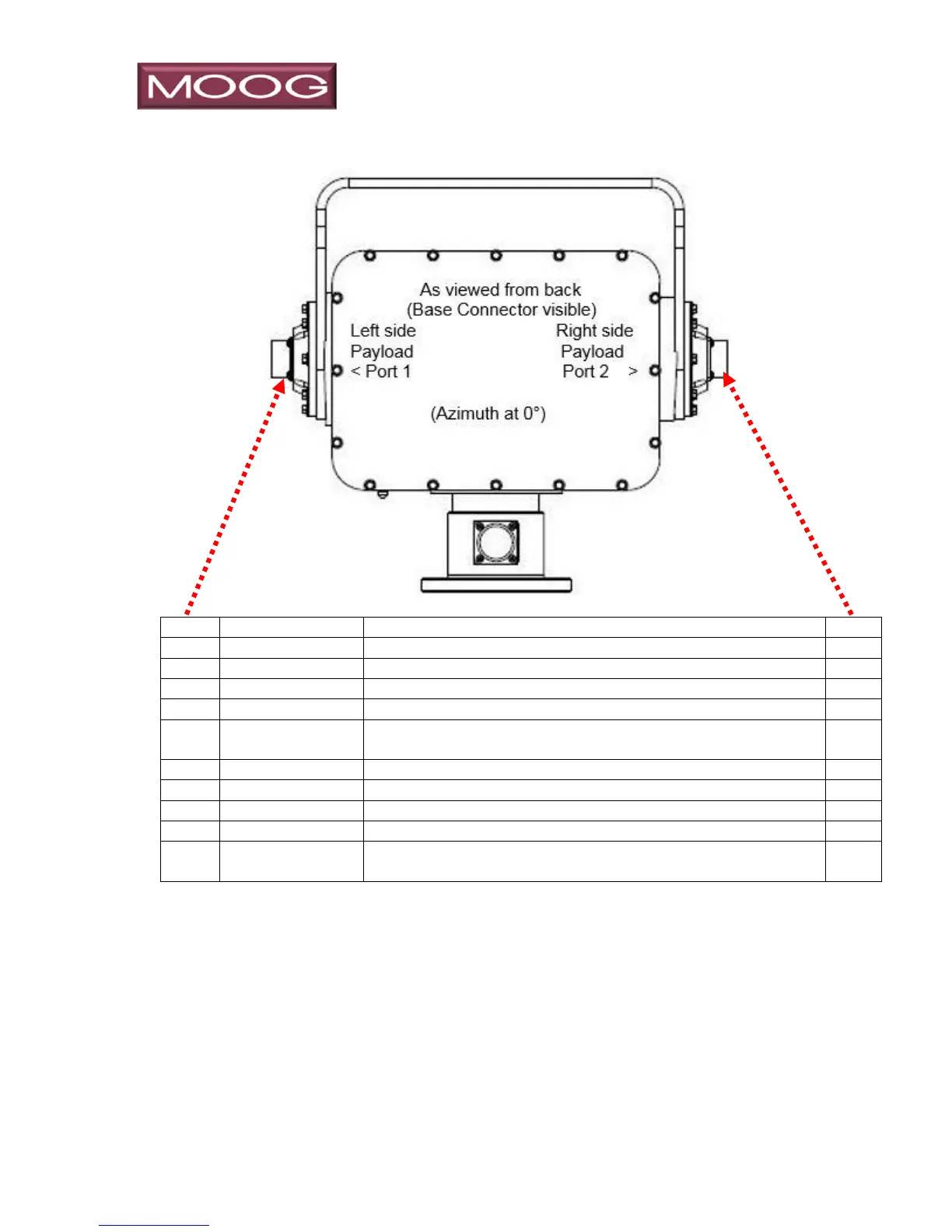

3.1.3 Additional Serial Control of Positioner – All Models
Additional serial communication ports are provided that allow payload devices to
control the positioner. An example of this may be a camera assembly equipped with
a video encoder.
“Transmit” and “Receive” are from the perspective of the positioner (DCE).
Pin #
Serial Control
Description
Pin #
16
Serial Tx+ (TXD)
RS422/485 (or RS232) transmit (software configurable)
n/c
33
Serial Tx-
RS422/485 transmit
n/c
11
Serial Rx+ (RXD)
RS422/485 (or RS232) receive (configurable)
n/c
34
Serial Rx-
RS422/485 receive
n/c
12
Signal ground
Serial signal ground, connected to system power negative,
isolated from chassis.
n/c
n/c
Serial Tx+ (TXD)
RS422/485 (or RS232) transmit (software configurable)
16
n/c
Serial Tx-
RS422/485 transmit
33
n/c
Serial Rx+ (RXD)
RS422/485 (or RS232) receive (configurable)
11
n/c
Serial Rx-
RS422/485 receive
34
n/c
Signal ground
Serial signal ground, connected to system power negative,
isolated from chassis.
12
