3.1.2 IP and Serial Control of Positioner – All Models
Above communication ports may be used for control and settings of positioner and/or
payloads ports. Differential serial communication may be set to full or half duplex,
configurable in settings.
Communication to from base connector to payload ports is supported (see protocol
document).

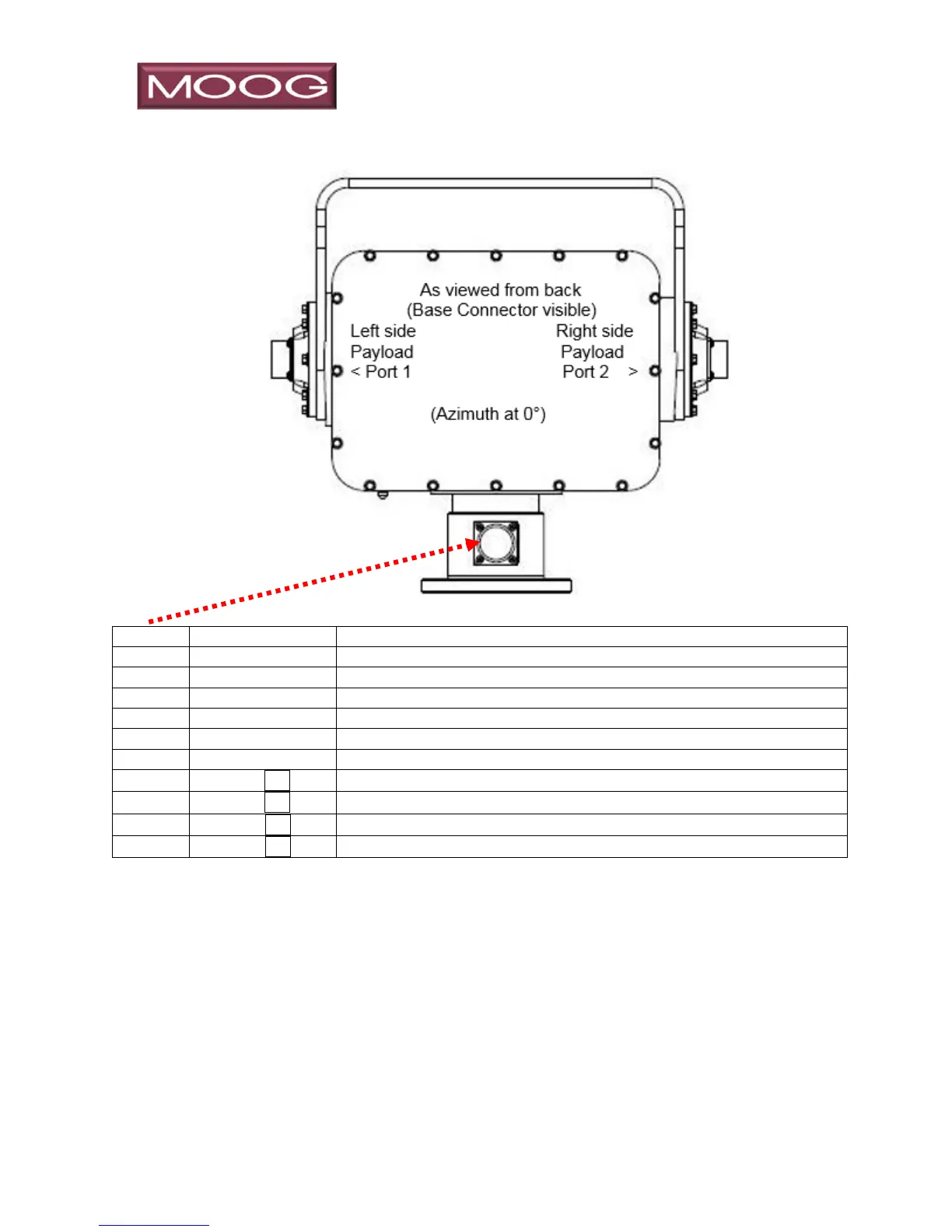

“Transmit” and “Receive” are from the perspective of the positioner (DCE). Colors
shown for IP signals per EIA/TIA 568B are to aid or reference external wiring to the ports
and do not represent actual color of conductors inside the positioner.
Pin #
Serial Control
Description
10
Serial Tx+ (TXD)
RS422/485 (or RS232) transmit (configurable)
33
Serial Tx-
RS422/485 transmit
11
Serial Rx+ (RXD)
RS422/485 (or RS232) receive (configurable)
34
Serial Rx-
RS422/485 receive
12
Signal ground
RS422/232, connected to system power negative, isolated from chassis.
Pin #
IP Control
Description
14
TX+_D1 ██
10/100 IP Control White/Orange T568B, typical RJ45 connector
36
TX-_D1 ██
10/100 IP Control Orange T568B, typical RJ45 connector
15
RX+_D2 ██
10/100 IP Control White/Green T568B, typical RJ45 connector
37
RX-_D2 ██
10/100 IP Control Green T568B, typical RJ45 connector
