MPT-90 PRODUCT MANUAL This document contains U.S. export controlled technical data as regulated by the U.S. Export Administration Regulations 15 CFR Parts 730-774, export, disclosure or transfer contrary to U.S. law is prohibited.
1.5 System Dimensions
Dimensions are per the Figure 3.

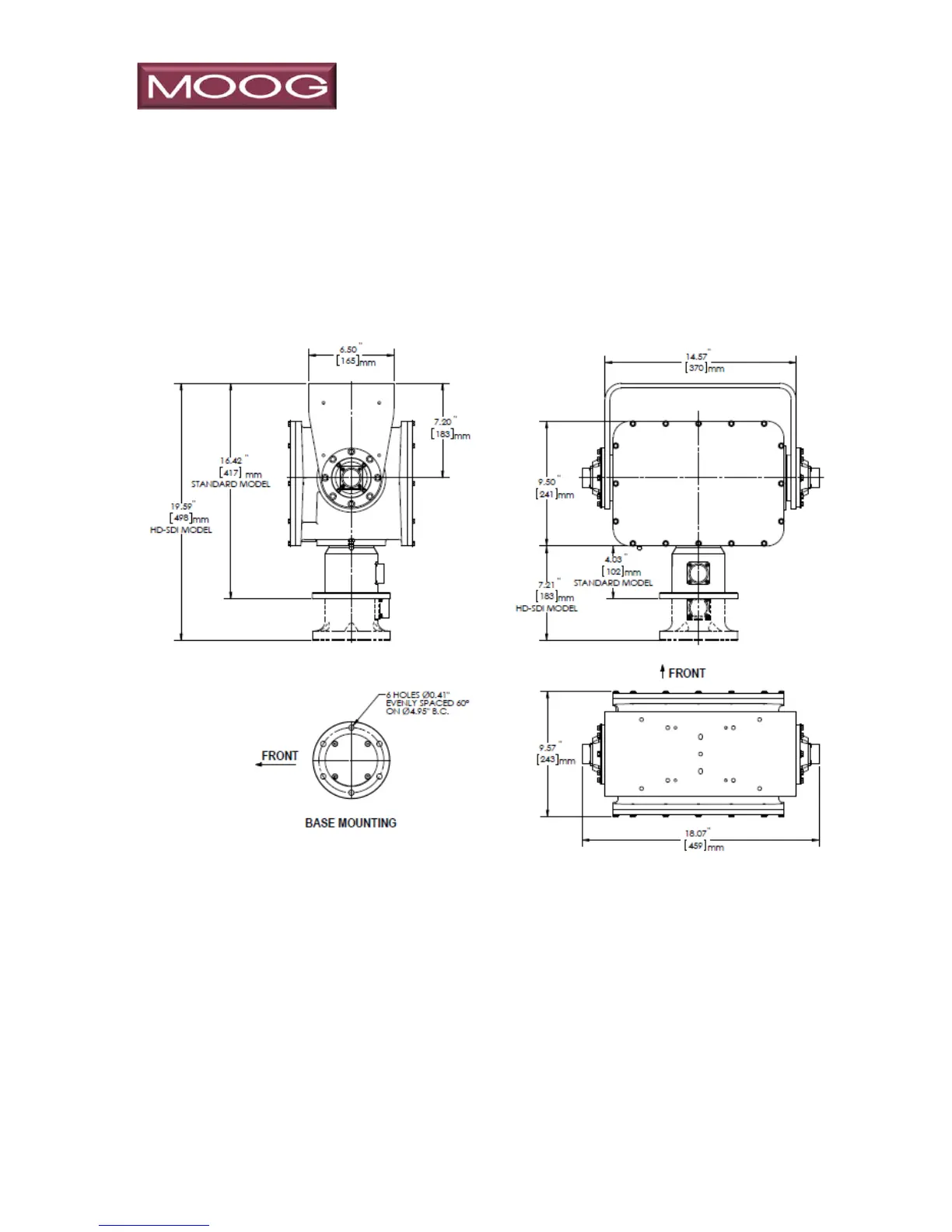

Figure 3: MPT-90 Dimensions
NOTE
This drawing shows the overall dimensions for both the standard base model
and the taller HD-SDI version models.
