3.1.9 Video Signal
Left
Pins
Base
Pins
Description
Right Pins
25
25
Video 1 coaxial
n/c
n/c
30
Video 2 coaxial
30

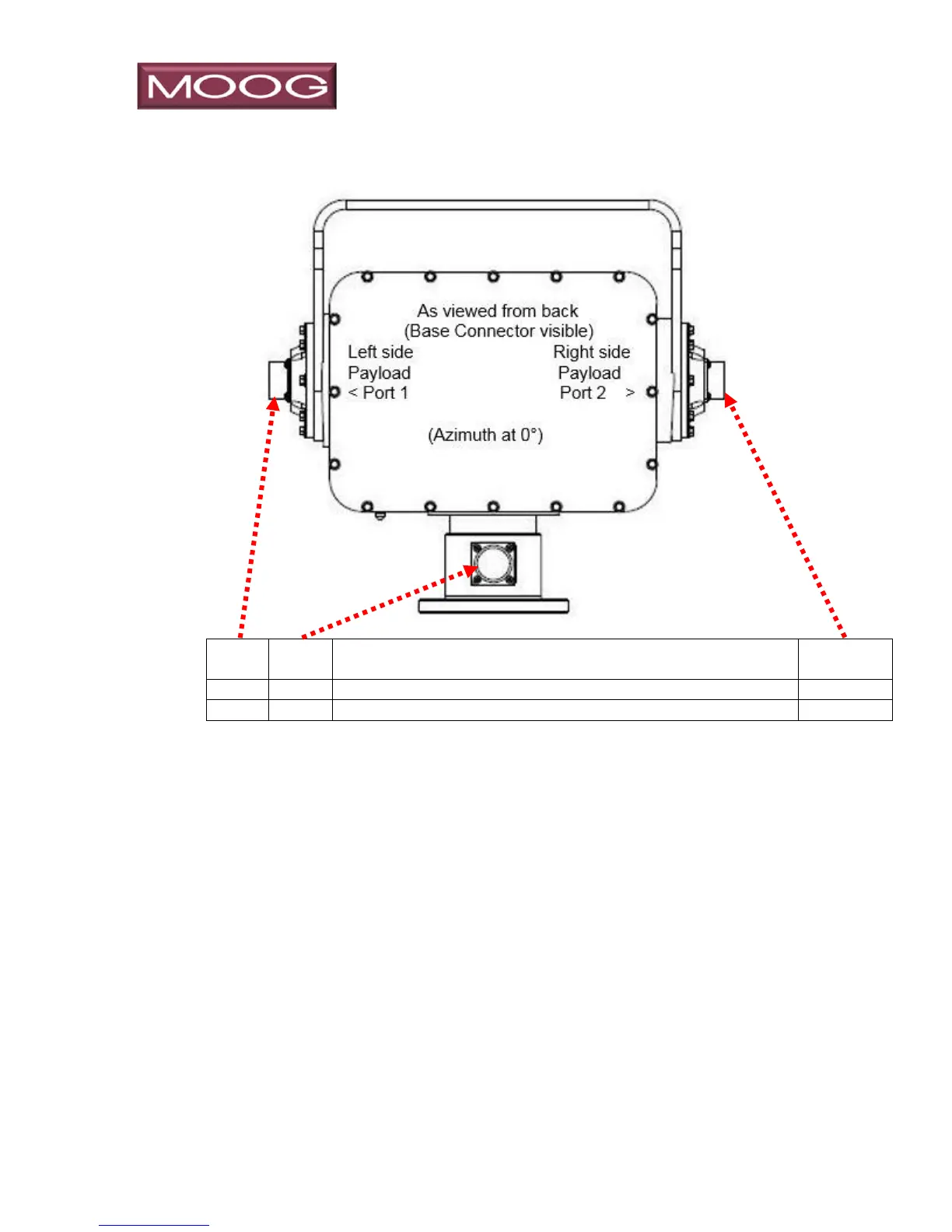

Signal paths suitable for video run from each of the port connectors (one per
side) to the base. These are suitable for RS170 video signals.
Special connector pins compatible with standard RG179 75Ω coaxial cable
are in the package with the included base and port connectors.
