MN0090-05 Page 34 of 68 18008
MPT-90 PRODUCT MANUAL This document contains U.S. export controlled technical data as regulated by the U.S. Export Administration Regulations 15 CFR Parts 730-774, export, disclosure or transfer contrary to U.S. law is prohibited.

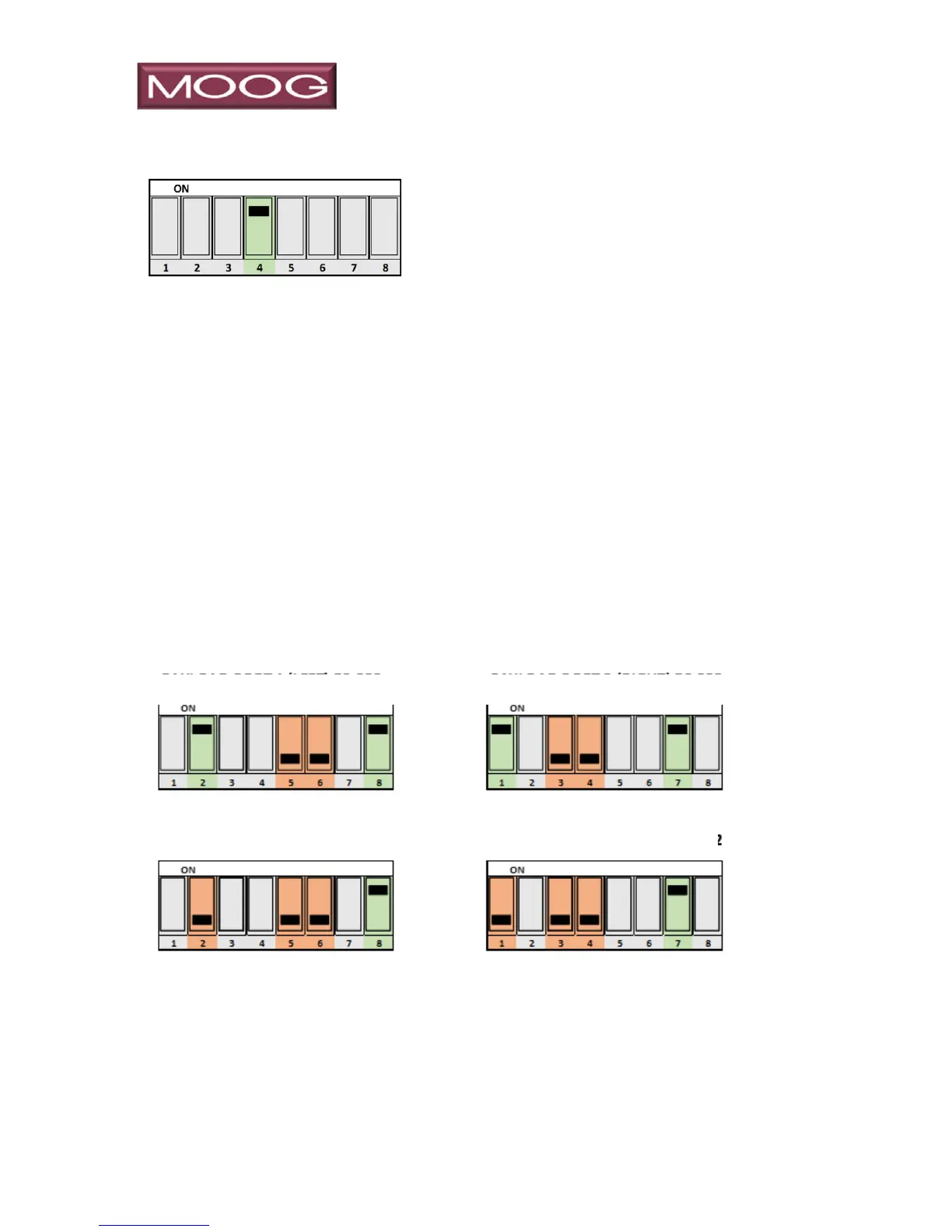

S2 switch setting to enable port 2 serial.
3.3.2 S4 switch settings for serial communication ports
S4 configures additional serial connections at the payload ports. Set for the desired
serial communication mode. Note that in RS485 mode, termination should be ON
for the last unit in the chain.
PAYLOAD PAYLOAD
PORT 1 PORT 2
RS422 RS232 PINS PINS
Serial Tx+ (TXD) 10 10
Serial Tx- 33 33
Serial Rx+ (RXD) 11 11
Serial Rx- 34 34
Signal Ground Gnd 12 12
S4 Switch setting for RS232 at Port 1 S4 Switch setting
for RS232 at Port 2
S4 Switch setting for RS422 at Port 1 S4 Switch
setting for RS422 at Port 2
