MN0090-05 Page 14 of 68 18008
MPT-90 PRODUCT MANUAL This document contains U.S. export controlled technical data as regulated by the U.S. Export Administration Regulations 15 CFR Parts 730-774, export, disclosure or transfer contrary to U.S. law is prohibited.

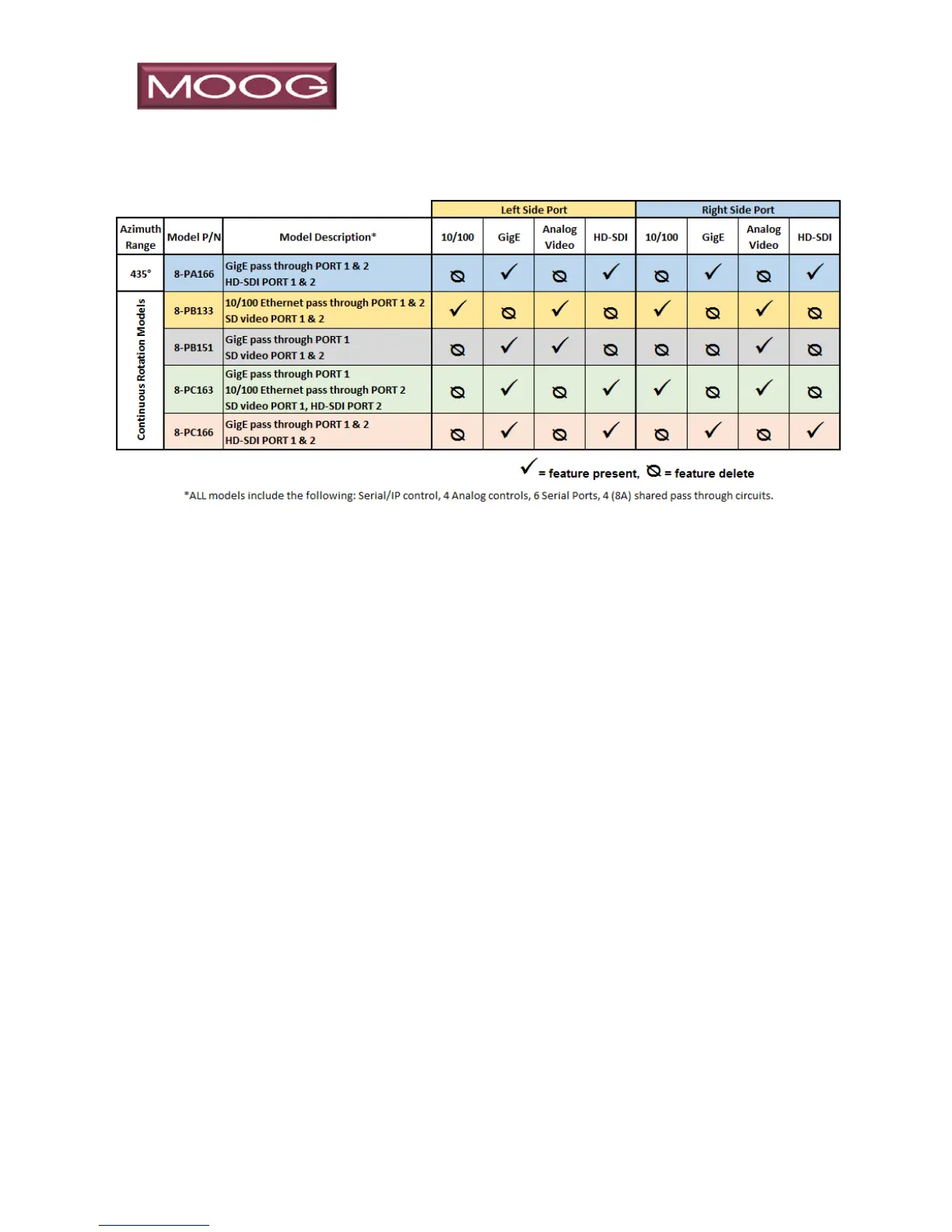

Figure 4: Feature Comparison Table
3.1 Pan and Tilt Description
The Pan & Tilt Unit is constructed of aluminum with stainless steel hardware.
The Pan & Tilt Housing (with Access Covers to provide access to the interior)
encloses the Pan & Tilt Motors, Chain & Gear Drive Assemblies, user settable
Limit Rings (hard stops), position encoders, and the main Control Circuit
Board which has multiple configurable options. Please refer to Figure 5 below
for component identification.
