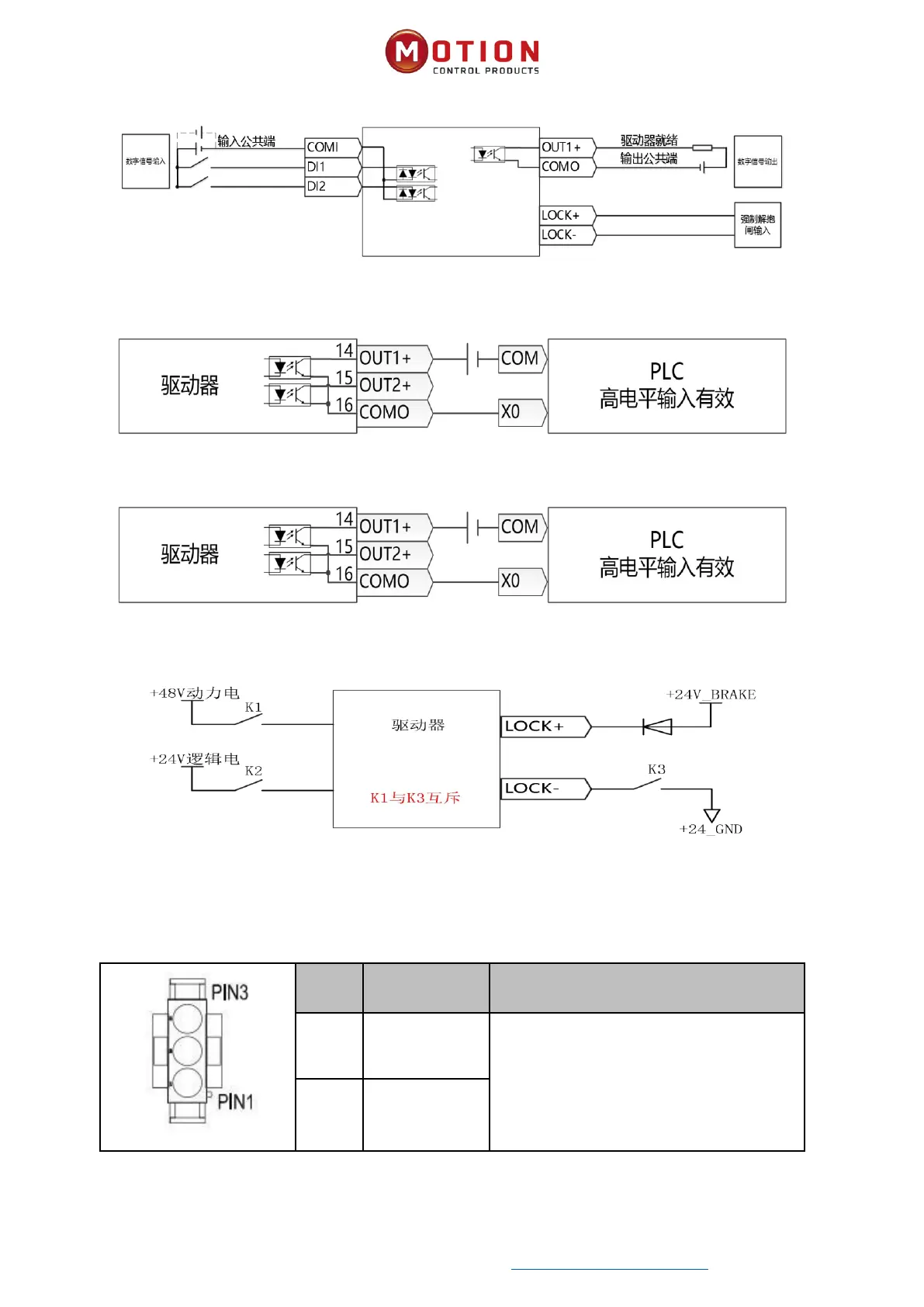

Moon Control Products Ltd. Tel.: +44 (0)1202 599922 www.mooncontrolproducts.com Page | 7
Diagram 2-2 iWMC Integrated servo wheel control wiring diagram
Diagram 2-3 Digital output PNP control wiring diagram
Diagram 2-4 Digital output NPN control wiring diagram
Diagram 2-5 Recommended circuit wiring diagram for forced releasing the brake
2.2.2 Power Supply Port
Pin No.
Name
Pin Function
3
DC-
Drive power supply input must be
connected.
1
DC+
Input voltage: 24~60VDC
