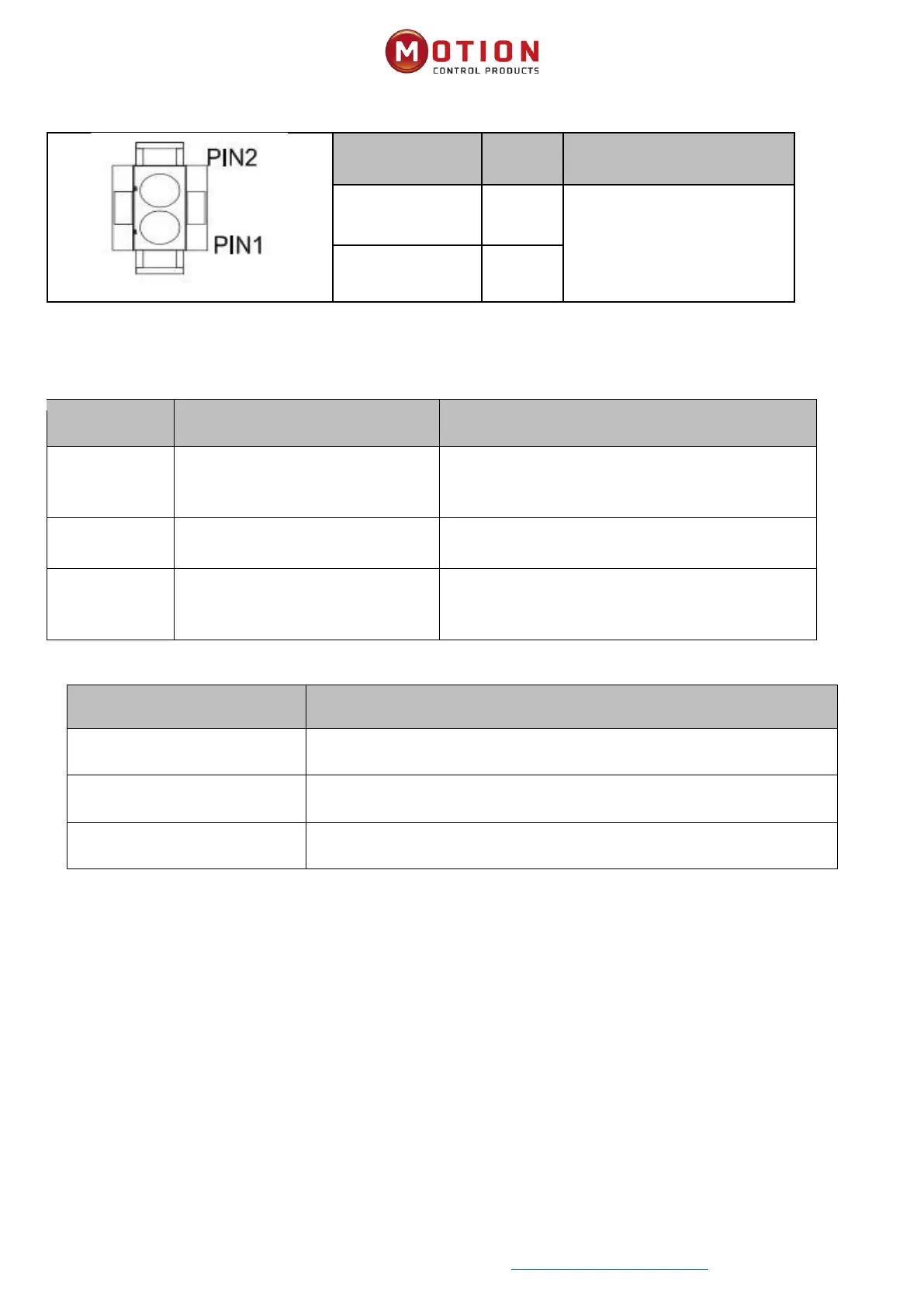

2.2.3 Brake Resistor Port
Pin No.
Name
Pin Function
1
RB+
External brake resistor input
2
RB-
2.2.4 Terminal Specicaons
Table 2-4 Terminal Specicaon Table
Servo Wheel End
Extension Cord End
Power cord
Rubber shell: SHANGYI
C6350HM-3P-V0 (milky white)
Pins: SHANGYI C6350M-TBe (Male).
Rubber shell: SHANGYI
C6350HF-3P-V0 (milky white)
Pins: SHANGYI C6350F-TBe (Female)
Rubber shell: MOLEX 430201800
Pins: MOLEX 430310004
Rubber shell: MOLEX 430251800
Pins: MOLEX 430300004
Brake resistance
Rubber shell: SHANGYI
C6350HM-2P-V0 (milky white)
Pins: SHANGYI C6350M-TBe (Male)
Rubber shell: SHANGYI
C6350HF-2P-V0 (milky white)
Pins: SHANGYI C6350F-TBe (Female)
Cable Specicaons:
Wiring Specicaons
Power cord
16AWG
Communicaon, I/O, etc
28AWG
Brake resistance
16AWG
