Disassembly/Reassembly Procedures: Radio Disassembly 7-7

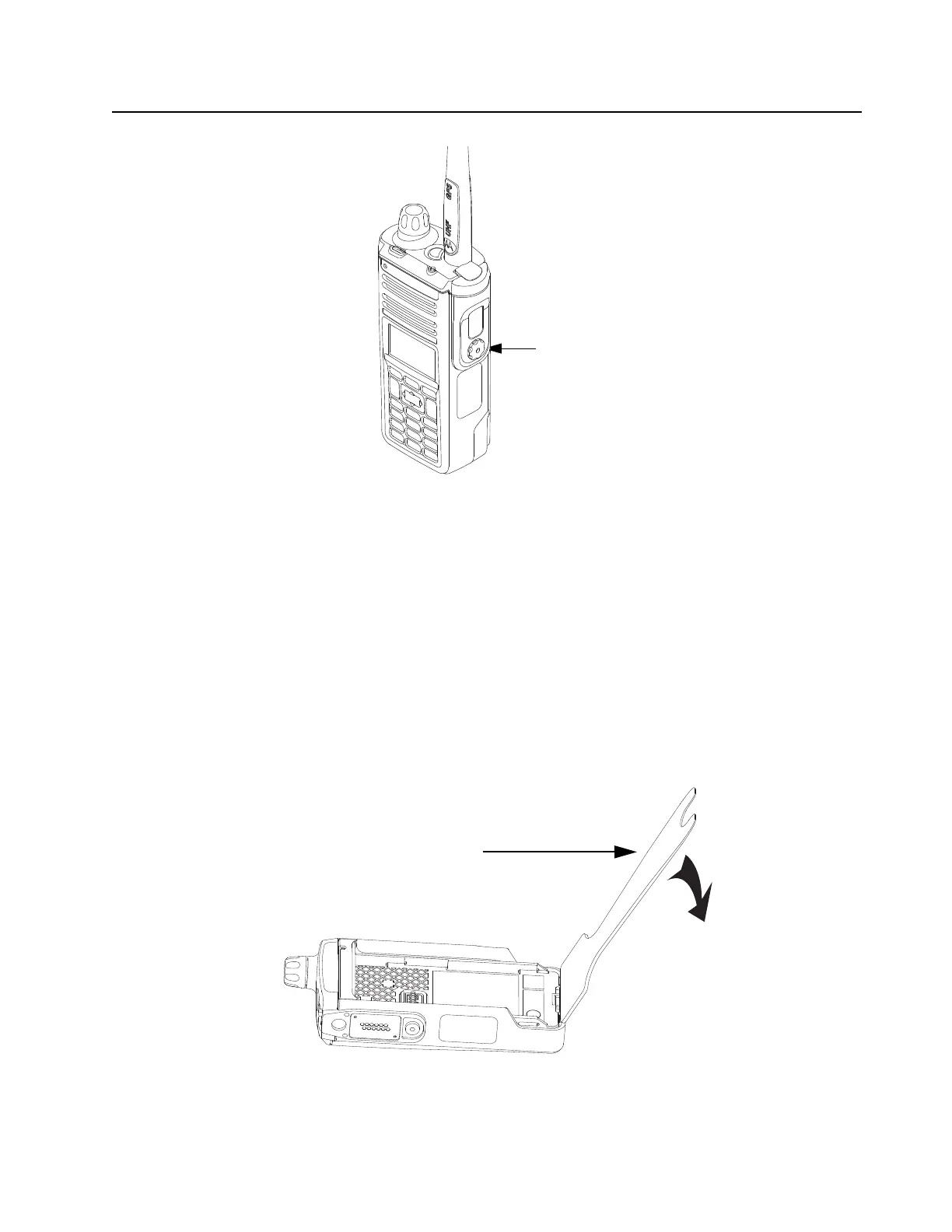

Figure 7-6. Removing the Thumb Screw
2. Slightly swing the Accessory-Connector Cover (1) away from radio before sliding it upward to
disengage the hook feature.
3. Pull the Accessory-Connector Cover away from the radio.
7.4.5 Removal of the Back Kit Assembly (B)
This section contains instructions for disassembling the radio.
7.4.5.1 Removal of the Chassis (26)
1. With the Battery removed, disengage the Chassis (26) using the Chassis Opener as shown in
Figure 7-7.
Figure 7-7. Disengage the Chassis
NOTE: The Vacuum Port seal (27) and the Ventilation Label (28) must be removed each
time the Chassis is removed (for leak test).
Thumb Screw with Hex Head Socket
