ASTRO XTS 5000 Model II 19
General Radio Operation

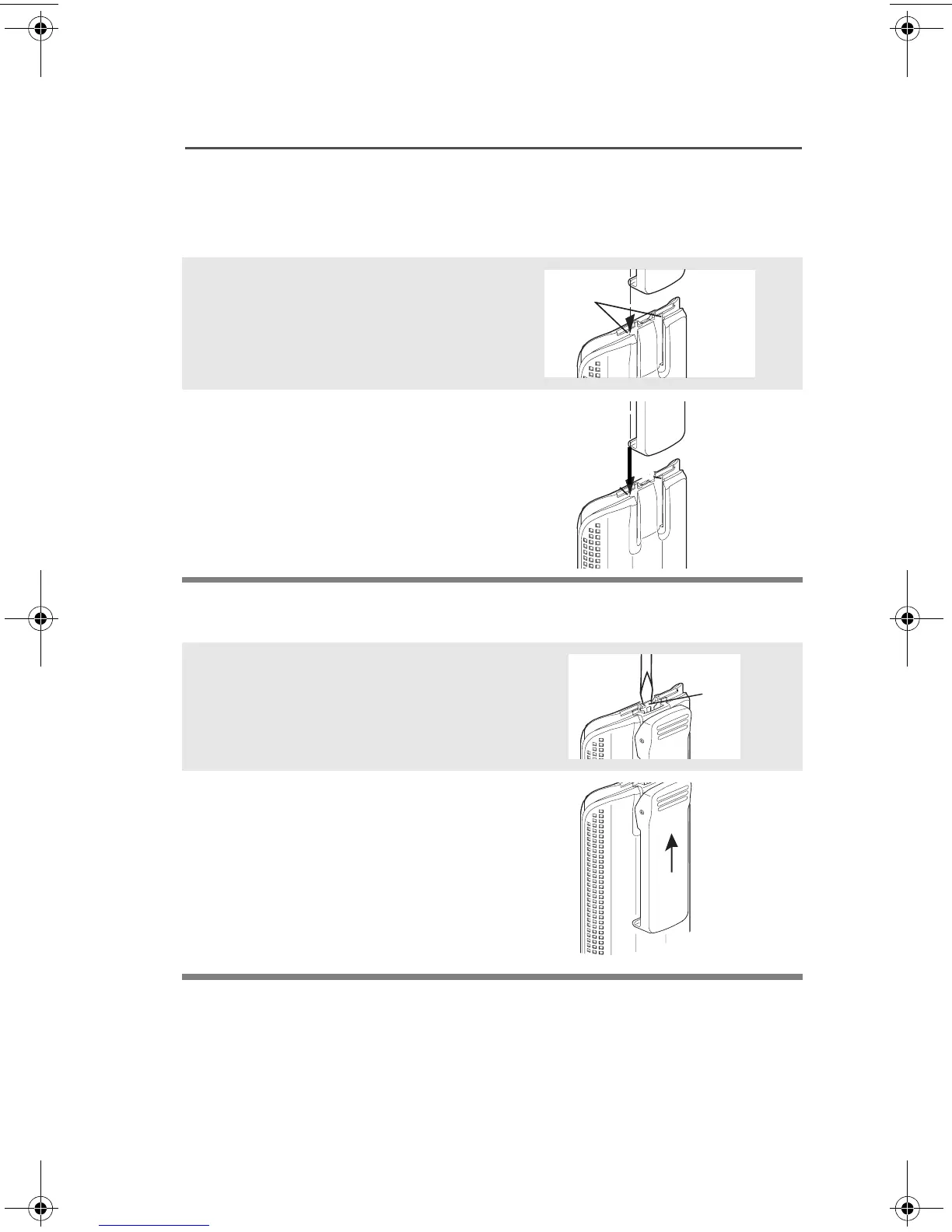

Belt Clip
Attach the Belt Clip
Remove the Belt Clip
1 Align the grooves of the belt
clip with those of the battery.
2 Press the belt clip downward
until you clear a click.
1 Use a flat-bladed object to
press the belt clip tab away
from the battery.
2 Slide the belt clip upward to
remove it.
Slots
Battery
Battery
Grooves
Slots
Battery
Battery
Metal
Tab
