Motorola LI4278 LINEAR IMAGER Product Reference Guide

5 - 24 LI4278 Product Reference Guide
FN1 Substitution Values
Key Category Parameter # 67h
Decimal Value Parameter # 6Dh
The Wedge and USB HID Keyboard hosts support a FN1 Substitution feature. Enabling this substitutes any
FN1 character (0x1b) in an EAN128 bar code with a value. This value defaults to 7013 (Enter Key).
When using host commands to set the FN1 substitution value, set the key category parameter to 1, then set
the 3-digit keystroke value. See the ASCII Character Set table for the current host interface for the desired
value.

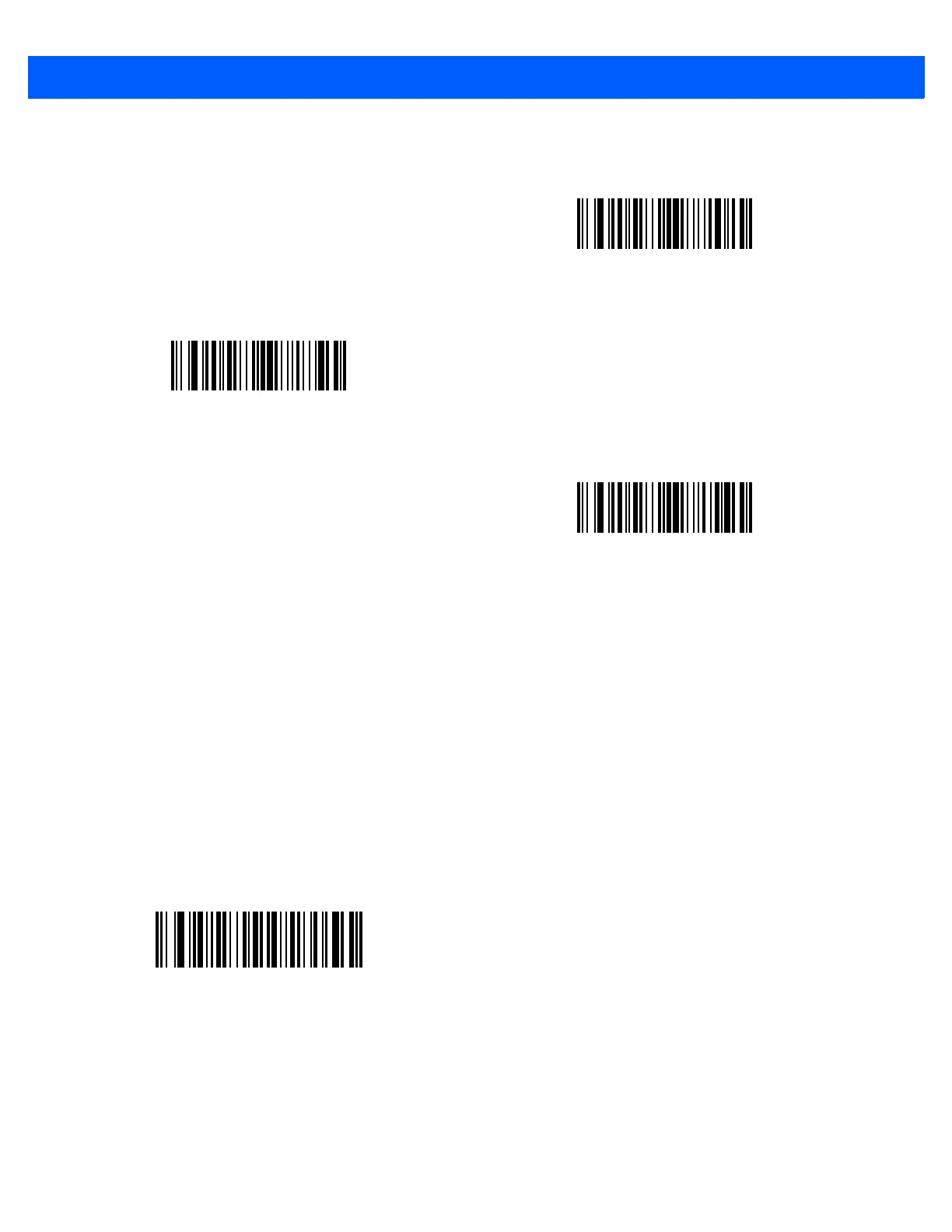

To select a FN1 substitution value via bar code menus:
1. Scan the bar code below.
2. Locate the keystroke desired for FN1 Substitution in the ASCII Character Set table for the current host
interface. Enter the 4-digit ASCII Value by scanning each digit in Appendix D, NUMERIC BAR CODES.
To correct an error or change the selection, scan Cancel.
To enable FN1 substitution for USB HID keyboard, scan the Enable FN1 Substitution bar code on page 5-24.
Scan Data Transmission Format (continued)
<PREFIX> <DATA> <SUFFIX 1>
(05h)
<PREFIX> <DATA> <SUFFIX 2>
(06h)
<PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2>
(07h)
Set FN1 Substitution Value

Motorola LI4278 LINEAR IMAGER Specifications

General

Scan Rate	547 scans per second
Decode Capability	1D barcodes
Scan Pattern	Single line
Light Source	LED
IP Rating	IP42
Scanner Type	Linear Imager
Battery	Rechargeable Li-ion battery
Drop Specification	1.8 m (6 ft) drops to concrete
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Technology	Linear Imager
Radio Range	Up to 100 m (330 ft) in open air
Interface	USB, RS232, Keyboard Wedge
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Weight	7.9 oz./224 g
Dimensions	9.8 cm H x 7 cm W x 18.6 cm L (3.8 in H x 2.7 in W x 7.3 in L)
