Motorola LI4278 LINEAR IMAGER Product Reference Guide

MAINTENANCE, TROUBLESHOOTING & TECHNICAL SPECIFICATIONS 3 - 13
Cradle Signal Descriptions
The signal descriptions in Table 3-5 apply to the connector on the linear imager scanner and are for reference
only.

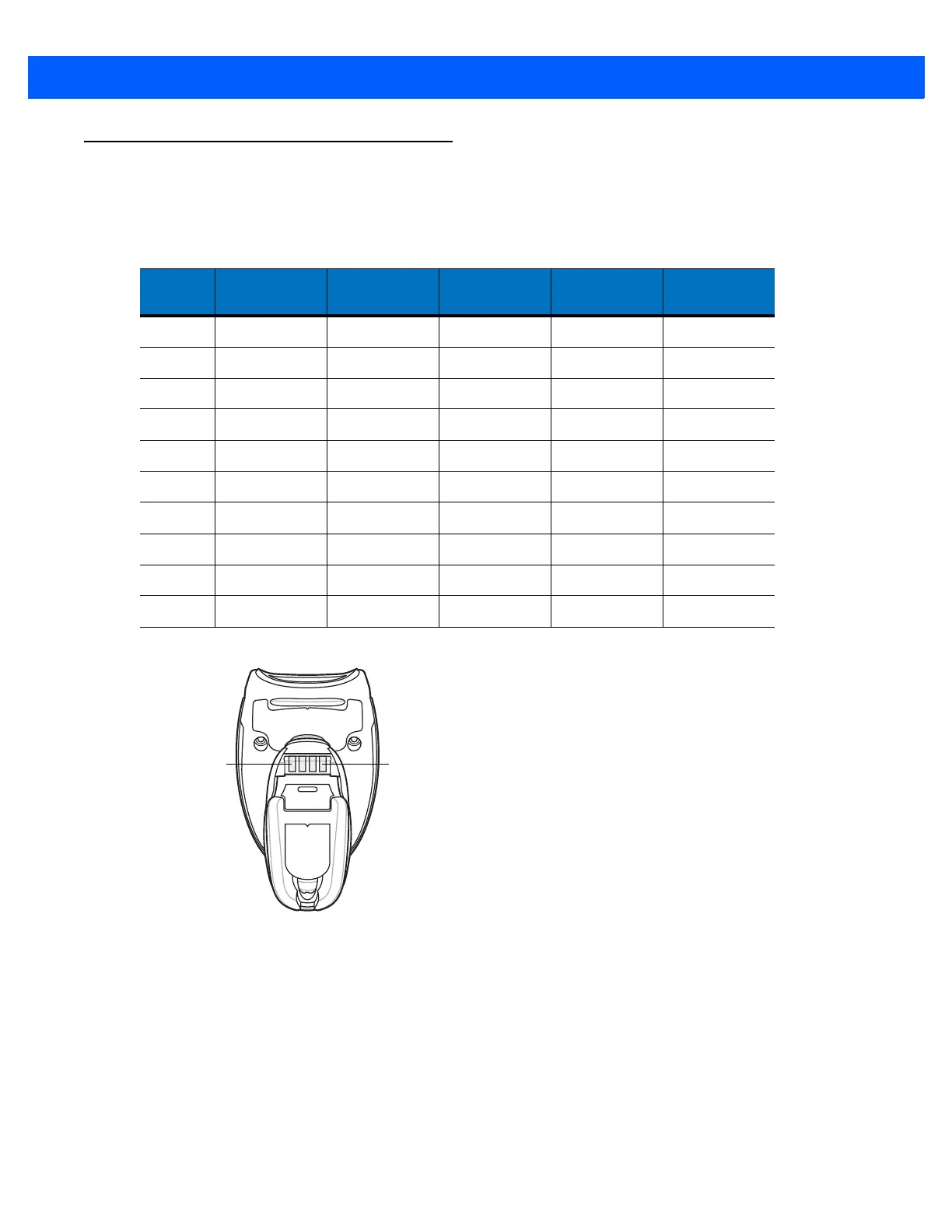

Figure 3-1 illustrates the positions of the cradle pins.
Figure 3-1 Cradle Pin Assignments
Table 3-5 Cradle Signal Pin-outs
Pin IBM Synapse RS-232
Keyboard
Wedge
USB
1 Reserved SynClock Reserved Reserved Jump to Pin 6
2 Power Power Power Power Power
3 Ground Ground Ground Ground Ground
4 IBM_A(+) Reserved TxD KeyClock Reserved
5 Reserved Reserved RxD TermData D +
6 IBM_B(-) SynData RTS KeyData Jump to Pin 1
7 Reserved Reserved CTS TermClock D -
8 Reserved Reserved Reserved Reserved Reserved
9 N/A N/A N/A N/A N/A
10 N/A N/A N/A N/A N/A
Pin 1
Pin 4

Motorola LI4278 LINEAR IMAGER Specifications

General

Scan Rate	547 scans per second
Decode Capability	1D barcodes
Scan Pattern	Single line
Light Source	LED
IP Rating	IP42
Scanner Type	Linear Imager
Battery	Rechargeable Li-ion battery
Drop Specification	1.8 m (6 ft) drops to concrete
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Technology	Linear Imager
Radio Range	Up to 100 m (330 ft) in open air
Interface	USB, RS232, Keyboard Wedge
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Weight	7.9 oz./224 g
Dimensions	9.8 cm H x 7 cm W x 18.6 cm L (3.8 in H x 2.7 in W x 7.3 in L)
